AAV Products and Services

What is AAV?

AAV is the acronym of Adeno-Associated Virus, a non-enveloped virus with a single stranded DNA genome. The recombinant AAV (rAAV) has become popular as an efficient vehicle to mediate DNA delivery into mammalian cells, both in vitro and in vivo.

AAV

How to use AAV particles to deliver a piece DNA?

  1. Clone the transgene into an AAV vector, between 2 ITR sequences.
  2. Prepare auxiliary plasmids encoding key AAV proteins, including serotype-determining Rep-Cap

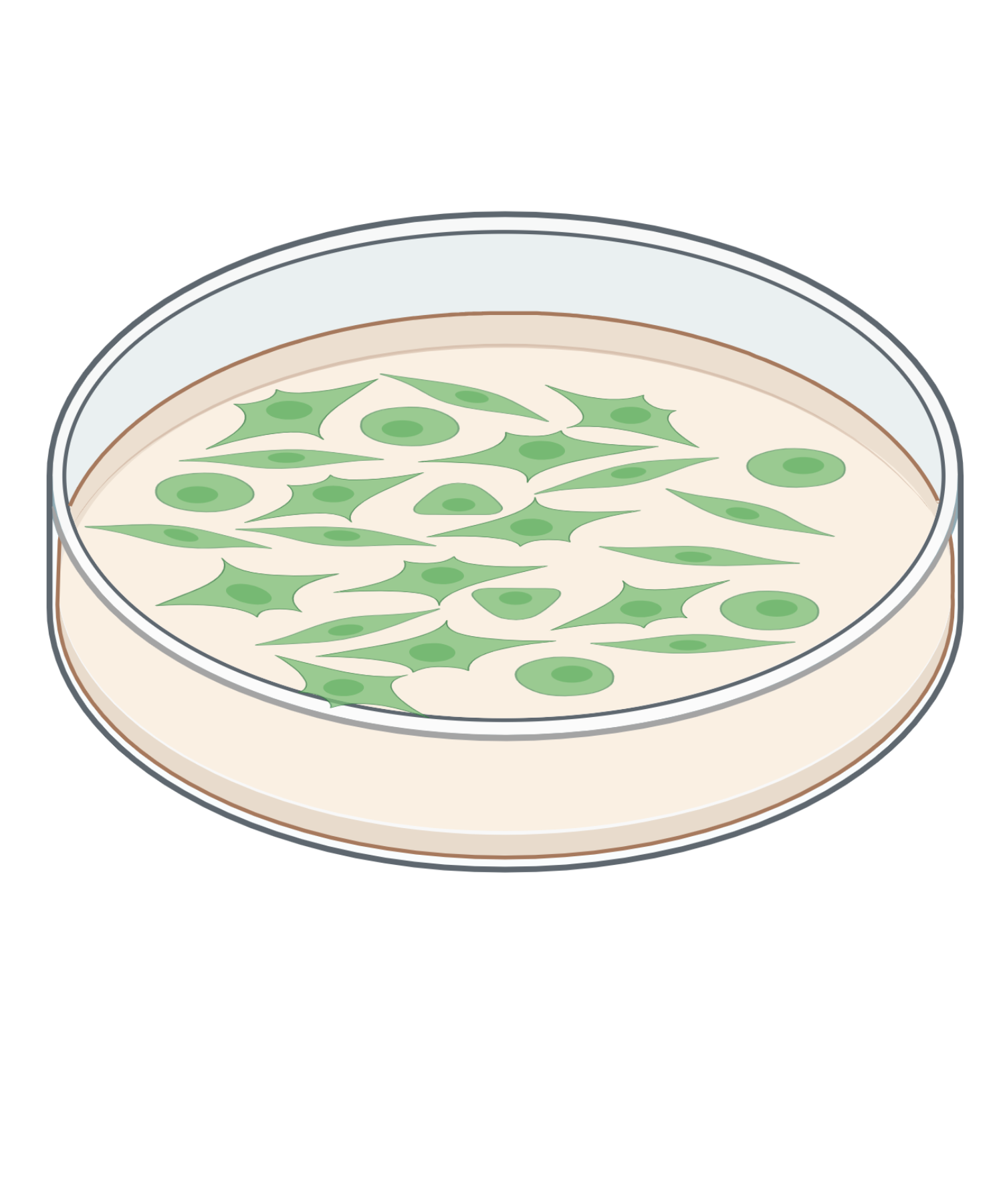

  3. Co-transfect above mentioned plasmids at optimal level into packaging cells

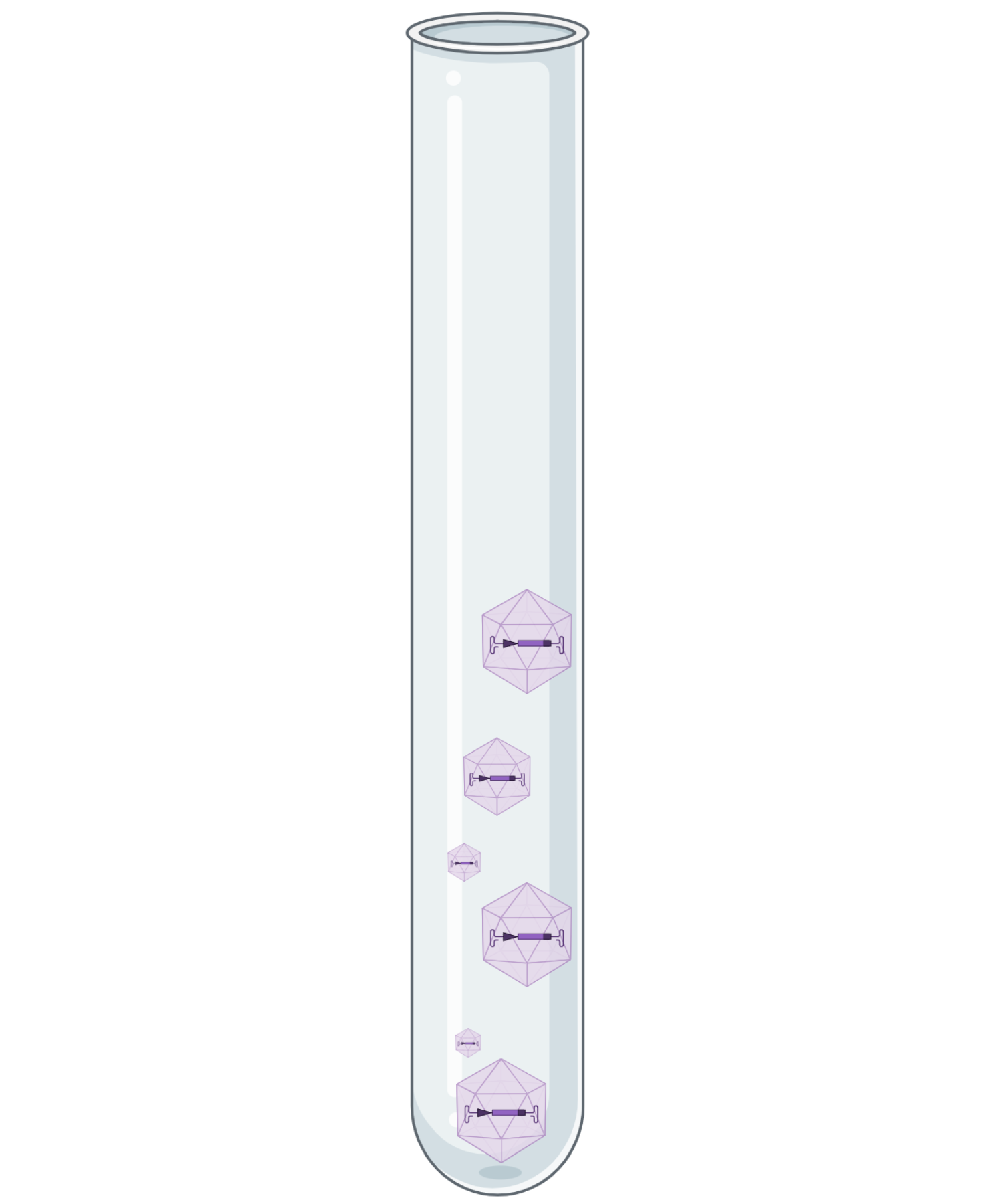

  4. Harvest and concentrate the AAV virus

What are AAV serotypes and how to select?

One of the useful features of AAV is its serotypes, which defines the preference of the types of cells/organs they infect. The tables below provide the selection guide for in vitro and in vivo applications.

Cell Line AAV-1 AAV-2 AAV-3 AAV-4 AAV-5 AAV-6 AAV-8 AAV-9 AAV-DJ AAV-DJ/8
Huh-7 13 100 2.5 0.0 0.1 10 0.7 0.0 500 0.2
HEK293 25 100 2.5 0.1 0.1 5 0.7 0.1 500 0.3
HeLa 3 100 2.0 0.1 6.7 1 0.2 0.1 667 0.2
HepG2 3 100 16.7 0.3 1.7 5 0.3 ND 1250 0.5
Hep1A 20 100 0.2 1.0 0.1 1 0.2 0.0 400 0.1
911 17 100 11 0.2 0.1 17 0.1 ND 500 0.0
CHO 100 100 14 1.4 333 50 10 1.0 25000 5.0
COS 33 100 33 3.3 5.0 14 2.0 0.5 500 0.3
MeWo 10 100 20 0.3 6.7 10 1.0 0.2 2857 1.0
NIH3T3 10 100 2.9 2.9 0.3 10 0.3 ND 500 0.1
A549 14 100 20 ND 0.5 10 0.5 0.1 1000 0.1
HT1180 20 100 10 0.1 0.3 33 0.5 0.1 333 0.2
Monocytes 1111 100 ND ND 125 1429 ND ND 100 ND
Immature DC 2500 100 ND ND 222 2857 ND ND 200 ND
Mature DC 2222 100 ND ND 333 3333 ND ND 100 ND

Note: Infectivity rates normalized to AAV-2 = 100. ND = Not Determined.

Grimm D, Lee JS, Wang L, et al. In vitro and in vivo gene therapy vector evolution via multispecies interbreeding and retargeting of adeno-associated viruses. J Virol. 2008;82(12):5887-5911. doi:10.1128/JVI.00254-08

Tissue Recommended Serotypes
Muscle AAV-1, AAV-6, AAV-7, AAV-8, AAV-9
Liver AAV-7, AAV-8, AAV-9, AAV-DJ
Lung AAV-4, AAV-5, AAV-6, AAV-9
CNS AAV-1, AAV-2, AAV-4, AAV-5, AAV-8, AAV-9, AAV-PHP.eB, AAV-rh10, AAV-DJ
Retina AAV-1, AAV-2, AAV-4, AAV-5, AAV-8
Pancreas AAV-8
Kidney AAV-2, AAV-9
Heart AAV-1, AAV-8, AAV-9

Rajawat, Yogendra Singh et al. “In-Vivo Gene Therapy with Foamy Virus Vectors.” Viruses vol. 11,12 1091. 23 Nov. 2019, doi:10.3390/v11121091
