MAP1LC3A (NM_032514) Human Tagged ORF Clone

  • TrueORF®
SKU
RG202222
MAP1LC3A (tGFP-tagged) - Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1
  $489.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol MAP1LC3A
Synonyms ATG8E; LC3; LC3A; MAP1ALC3; MAP1BLC3
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

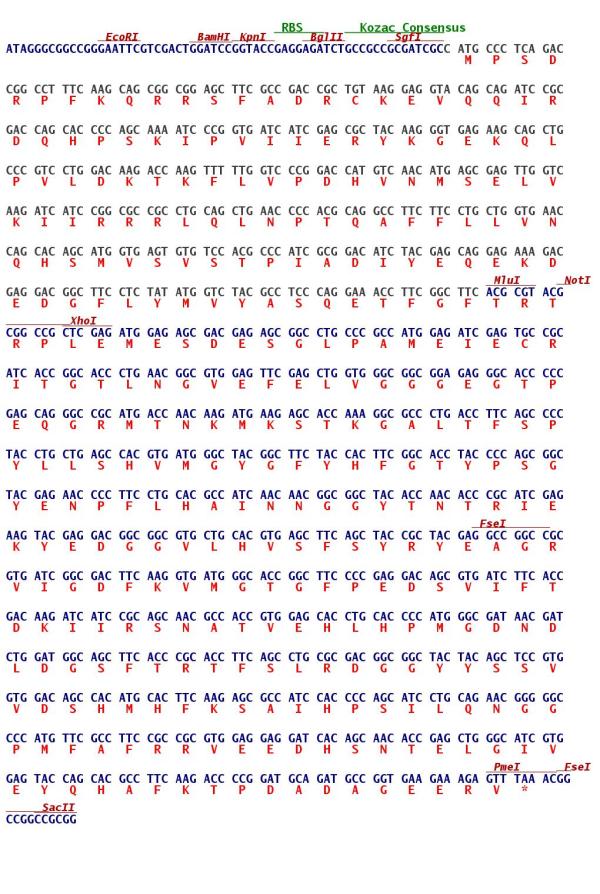

ORF Nucleotide Sequence
>RG202222 representing NM_032514
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCCCTCAGACCGGCCTTTCAAGCAGCGGCGGAGCTTCGCCGACCGCTGTAAGGAGGTACAGCAGATCC
GCGACCAGCACCCCAGCAAAATCCCGGTGATCATCGAGCGCTACAAGGGTGAGAAGCAGCTGCCCGTCCT
GGACAAGACCAAGTTTTTGGTCCCGGACCATGTCAACATGAGCGAGTTGGTCAAGATCATCCGGCGCCGC
CTGCAGCTGAACCCCACGCAGGCCTTCTTCCTGCTGGTGAACCAGCACAGCATGGTGAGTGTGTCCACGC
CCATCGCGGACATCTACGAGCAGGAGAAAGACGAGGACGGCTTCCTCTATATGGTCTACGCCTCCCAGGA
AACCTTCGGCTTC


ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG202222 representing NM_032514
Red=Cloning site Green=Tags(s)

MPSDRPFKQRRSFADRCKEVQQIRDQHPSKIPVIIERYKGEKQLPVLDKTKFLVPDHVNMSELVKIIRRR
LQLNPTQAFFLLVNQHSMVSVSTPIADIYEQEKDEDGFLYMVYASQETFGF

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_032514
ORF Size 363 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_032514.4
RefSeq Size 1030 bp
RefSeq ORF 366 bp
Locus ID 84557
UniProt ID Q9H492
Cytogenetics 20q11.22
Domains MAP1_LC3
Summary MAP1A and MAP1B are microtubule-associated proteins which mediate the physical interactions between microtubules and components of the cytoskeleton. MAP1A and MAP1B each consist of a heavy chain subunit and multiple light chain subunits. The protein encoded by this gene is one of the light chain subunits and can associate with either MAP1A or MAP1B. Two transcript variants encoding different isoforms have been found for this gene. The expression of variant 1 is suppressed in many tumor cell lines, suggesting that may be involved in carcinogenesis. provided by RefSeq, Feb 2012
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_032514" in other vectors (6)
SKU Description Size Price
RC202222 MAP1LC3A (Myc-DDK-tagged)-Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1 10 ug
$289.00
RC202222L1 Lenti ORF clone of Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1, Myc-DDK-tagged 10 ug
$450.00
RC202222L2 Lenti ORF clone of Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1, mGFP tagged 10 ug
$450.00
RC202222L3 Lenti ORF clone of Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1, Myc-DDK-tagged 10 ug
$450.00
RC202222L4 Lenti ORF clone of Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1, mGFP tagged 10 ug
$450.00
SC111851 MAP1LC3A (untagged)-Human microtubule-associated protein 1 light chain 3 alpha (MAP1LC3A), transcript variant 1 10 ug
$150.00

Plasmid Map for RG202222

Download sequence for

Cloning scheme for RG202222

Circular map for RG202222

file-alt Citations

miR‑92b promotes autophagy and suppresses viability and invasion in breast cancer by targeting EZH2
Liu, Sang, Meng et al
Int. J. Oncol. (2018)
AI Summary: OriGene products, including the GFP-LC3 plasmid, EZH2 shRNA plasmid, pCMV6 Entry-EZH2-Myc-DDK expression plasmid, and control plasmid, were used in this study to manipulate and analyze EZH2 expression and autophagy in breast cancer cells.
Snippet: (Shanghai, China). Green fluorescent protein (GFP)-light chain 3 (LC3), EZH2 short hairpin (sh)-RNA Plasmid, pCMV6 Entry-EZH2- Myc-DDK expression plasmid and control plasmid were purchased from OriGene Technologies, Inc. (Rockville, MD, USA)
A novel ECG analog 4-(S)-(2,4,6-trimethylthiobenzyl)-epigallocatechin gallate selectively induces apoptosis of B16-F10 melanoma via activation of autophagy and ROS
Xie, Yun, Yang et al
Sci Rep (2017) 7, 42194 DOI: 10.1038/srep42194
AI Summary: OriGene’s GFP-LC3 plasmid was used to generate CHO cells stably expressing GFP-LC3, enabling the researchers to monitor autophagy activation in response to their novel compound JP8.
Snippet: FBS. Chinese hamster ovary (CHO) cells stably expressing GFP-LC3 were generated by transfection with a GFP-LC3 plasmid (OriGene Technologies, Rockville, MD, USA) using Lipofectamine 2000 (Thermo Fisher). Stable ... All 4 versions Cite SaveSaving
FigureFigureFigure
A Cyanine Dye to Probe Mitophagy: Simultaneous Detection of Mitochondria and Autolysosomes in Live Cells
Liu, Zhou, Wang et al
J. Am. Chem. Soc. (2016) 138 (38), 12368-74 DOI: 10.1021/jacs.6b04048
Cited by 239
AI Summary: OriGene products, specifically the GFP-tagged LAMP1 (RG219208) and GFP-tagged MAP1LC3A (RG202222) Human ORF Clones, were used in this study to label lysosomes and autophagosomes, enabling visualization and analysis of mitophagy processes in live cells.
Snippet: LAMP1 (NM_005561) Human ORF Clone ((GFP-tagged)-Human lysosomal-associated membrane protein 1, RG219208) and MAP1LC3A (NM_032514) Human cDNA ORF Clone ((GFP-tagged)- Human microtubule-associated protein 1 light chain 3 alpha, RG202222) were from OriGene Technologies Inc. BODIPY FL C5- Ceramide (Golgi-Tracker) and BODIPY FL Glibenclamide (ERTracker Green) were from Thermo Fisher Scientific
Newcastle disease virus NP and P proteins induce autophagy via the endoplasmic reticulum stress-related unfolded protein response
Cheng, Sun, Zhang et al
Sci Rep (2016) 6, 24721 DOI: 10.1038/srep24721
Cited by 66
AI Summary: In this study, the pEGFP-LC3 plasmid from OriGene was used to monitor autophagy, helping to demonstrate that Newcastle disease virus NP and P proteins induce autophagy via ER stress-related unfolded protein response pathways.
Snippet: Plasmid p3 × FLAG-CMV-14 was purchased from Sigma-Aldrich (St. Louis, MO, USA). Plasmid pEGFP-LC3 was purchased from Origene (Rockville, MD, USA). Plasmids pGL3-Basic and pRL-TK were purchased from Promega (Madison, WI, USA). Antibodies and ... Cite SaveSaving
FigureFigureFigure
Metformin Restores Parkin-Mediated Mitophagy, Suppressed by Cytosolic p53
Song, Lee, Lee et al
Int J Mol Sci (2016) 17 (1) DOI: 10.3390/ijms17010122
Cited by 98
AI Summary: OriGene’s GFP-LC3 plasmid was used to transfect HepG2 cells, enabling visualization and detection of mitophagy in the study.
Snippet: Detection of mitophagy were also performed by transfecting HepG2 cells with a plasmid driving the expression of GFP-LC3 (excitation wavelength 488 nm, emission filter 530 nm) (OriGene Technologies, Inc., Rockville, MD, USA) for 16 h, followed by loading of cells ... Cite SaveSaving
Bone marrow-derived mesenchymal stem cells ameliorate chronic high glucose-induced β-cell injury through modulation of autophagy
Zhao, Hao, Liu et al
Cell Death Dis (2015) 6, e1885 DOI: 10.1038/cddis.2015.230
Cited by 75
AI Summary: OriGene's GFP-LC3 plasmid was used to transfect INS-1 cells, enabling visualization and analysis of autophagosome formation to assess the role of autophagy in BM-MSC-mediated protection against high glucose-induced β-cell injury.
Snippet: Green fluorescent protein-LC3. INS-1 cells were transfected with GFP-LC3 plasmid (OriGene Technologies, Inc., Rockville, MD, USA) using Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA) according to the manufacturer's instructions. ... Cite SaveSaving
Showing 1-6 of 10 papers.
Powered by BizGenius
*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
