TDO2 (NM_005651) Human Tagged ORF Clone

  • TrueORF®
SKU
RG202777
TDO2 (tGFP-tagged) - Human tryptophan 2,3-dioxygenase (TDO2)
$489.00 $657.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol TDO2
Synonyms HYPTRP; TDO; TO; TPH2; TRPO
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG202777 representing NM_005651
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGAGTGGGTGCCCATTTTTAGGAAACAACTTTGGATATACTTTTAAAAAACTCCCCGTAGAAGGCAGCG
AAGAAGACAAATCACAAACTGGTGTGAATAGAGCCAGCAAAGGAGGTCTTATCTATGGGAACTACCTGCA
TTTGGAAAAAGTTTTGAATGCACAAGAACTGCAAAGTGAAACAAAAGGAAATAAAATCCATGATGAACAT
CTTTTTATCATAACTCATCAAGCTTATGAACTCTGGTTTAAGCAAATCCTCTGGGAGTTGGATTCTGTTC
GAGAGATCTTTCAGAATGGCCATGTCAGAGATGAAAGGAACATGCTTAAGGTTGTTTCTCGGATGCACCG
AGTGTCAGTGATCCTGAAACTGCTGGTGCAGCAGTTTTCCATTCTGGAGACGATGACAGCCTTGGACTTC
AATGACTTCAGAGAGTACTTATCTCCAGCATCAGGCTTCCAGAGTTTGCAATTCCGACTATTAGAAAACA
AGATAGGTGTTCTTCAGAACATGAGAGTCCCTTATAACAGAAGACATTATCGTGATAACTTCAAAGGAGA
AGAAAATGAACTGCTACTTAAATCTGAGCAGGAAAAGACACTTCTGGAATTAGTGGAGGCATGGCTGGAA
AGAACTCCAGGTTTAGAGCCACATGGATTTAACTTCTGGGGAAAGCTTGAAAAAAATATCACCAGAGGCC
TGGAAGAGGAATTCATAAGGATTCAGGCTAAAGAAGAGTCTGAAGAAAAAGAGGAACAGGTGGCTGAATT
TCAGAAGCAAAAAGAGGTGCTACTGTCCTTATTTGATGAGAAACGTCATGAACATCTCCTTAGTAAAGGT
GAAAGACGGCTGTCATACAGAGCACTTCAGGGAGCATTGATGATATATTTTTACAGGGAAGAGCCTAGGT
TCCAGGTGCCTTTTCAGTTGCTGACTTCTCTTATGGACATAGATTCACTGATGACCAAATGGAGATATAA
CCATGTGTGCATGGTGCACAGAATGCTGGGCAGCAAAGCTGGCACCGGTGGTTCCTCAGGCTATCACTAC
CTGCGATCAACTGTGAGTGATAGGTACAAGGTATTTGTAGATTTATTTAATCTTTCAACATACCTGATTC
CCCGACACTGGATACCGAAGATGAACCCAACCATTCACAAATTTCTATATACAGCAGAATACTGTGATAG
CTCCTACTTCAGCAGTGATGAATCAGAT


ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG202777 representing NM_005651
Red=Cloning site Green=Tags(s)

MSGCPFLGNNFGYTFKKLPVEGSEEDKSQTGVNRASKGGLIYGNYLHLEKVLNAQELQSETKGNKIHDEH
LFIITHQAYELWFKQILWELDSVREIFQNGHVRDERNMLKVVSRMHRVSVILKLLVQQFSILETMTALDF
NDFREYLSPASGFQSLQFRLLENKIGVLQNMRVPYNRRHYRDNFKGEENELLLKSEQEKTLLELVEAWLE
RTPGLEPHGFNFWGKLEKNITRGLEEEFIRIQAKEESEEKEEQVAEFQKQKEVLLSLFDEKRHEHLLSKG
ERRLSYRALQGALMIYFYREEPRFQVPFQLLTSLMDIDSLMTKWRYNHVCMVHRMLGSKAGTGGSSGYHY
LRSTVSDRYKVFVDLFNLSTYLIPRHWIPKMNPTIHKFLYTAEYCDSSYFSSDESD

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_005651
ORF Size 1218 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_005651.4
RefSeq Size 1712 bp
RefSeq ORF 1221 bp
Locus ID 6999
UniProt ID P48775
Cytogenetics 4q32.1
Domains Trp_dioxygenase
Protein Pathways Metabolic pathways, Tryptophan metabolism
Summary This gene encodes a heme enzyme that plays a critical role in tryptophan metabolism by catalyzing the first and rate-limiting step of the kynurenine pathway. Increased activity of the encoded protein and subsequent kynurenine production may also play a role in cancer through the suppression of antitumor immune responses, and single nucleotide polymorphisms in this gene may be associated with autism. provided by RefSeq, Feb 2012
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_005651" in other vectors (7)
SKU Description Size Price
RC202777 TDO2 (Myc-DDK-tagged)-Human tryptophan 2,3-dioxygenase (TDO2) 10 ug
$457.00
RC202777L1 Lenti ORF clone of Human tryptophan 2,3-dioxygenase (TDO2), Myc-DDK-tagged 10 ug
$757.00
RC202777L2 Lenti ORF clone of Human tryptophan 2,3-dioxygenase (TDO2), mGFP tagged 10 ug
$757.00
RC202777L3 Lenti ORF clone of Human tryptophan 2,3-dioxygenase (TDO2), Myc-DDK-tagged 10 ug
$757.00
RC202777L4 Lenti ORF clone of Human tryptophan 2,3-dioxygenase (TDO2), mGFP tagged 10 ug
$757.00
SC116613 TDO2 (untagged)-Human tryptophan 2,3-dioxygenase (TDO2) 10 ug
$457.00
SC321049 TDO2 (untagged)-Human tryptophan 2,3-dioxygenase (TDO2) 10 ug
$457.00

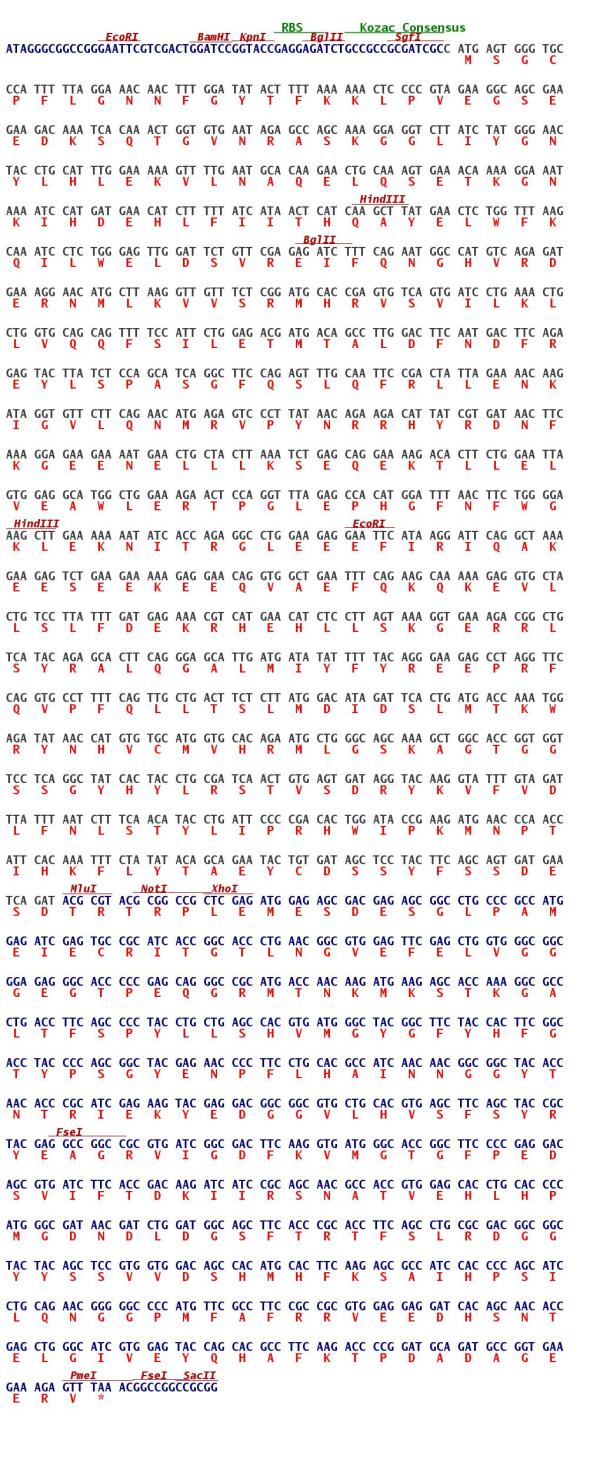

Plasmid Map for RG202777

Download sequence for

Cloning scheme for RG202777

Circular map for RG202777

file-alt Citations

Blockade of the AHR restricts a Treg-macrophage suppressive axis induced by L-Kynurenine
Campesato, Budhu, Tchaicha et al
Nat Commun (2020) 11 (1), 4011 DOI: 10.1038/s41467-020-17750-z
Cited by 516
AI Summary: OriGene's pCMV6-AC-GFP vectors containing the IDO or TDO genes were used to generate B16IDO and B16TDO cell lines, enabling the study of the AHR pathway's role in tumor immunosuppression in this paper.
Snippet: serum (FCS) and penicillin with streptomycin (complete RPMI media). B16IDO and B16TDO cells were generated by transduction of B16F10 with GFP plus the IDO gene or TDO gene in the pCMV6-AC-GFP vector (Origene). B16F10 transduced with GFP alone were used as control cells (B16-WT). Clonal transformants were selected using 1 mg/ml G418 (Geneticin). Cell lines were routinely screened to avoid mycopla
FigureFigureFigure
Showing 1-1 of 1 papers.
