BIN1 (NM_139349) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC214334
BIN1 (Myc-DDK-tagged)-Human bridging integrator 1 (BIN1), transcript variant 7
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $457.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA383819 BIN1 Rabbit monoclonal Antibody
100 ul
$380.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "BIN1 or NM_139349"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol BIN1
Synonyms AMPH2; AMPHL; CNM2; SH3P9
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC214334 representing NM_139349
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCAGAGATGGGCAGTAAAGGGGTGACGGCGGGAAAGATCGCCAGCAACGTGCAGAAGAAGCTCACCC
GCGCGCAGGAGAAGGTTCTCCAGAAGCTGGGGAAGGCAGATGAGACCAAGGATGAGCAGTTTGAGCAGTG
CGTCCAGAATTTCAACAAGCAGCTGACGGAGGGCACCCGGCTGCAGAAGGATCTCCGGACCTACCTGGCC
TCCGTCAAAGCCATGCACGAGGCTTCCAAGAAGCTGAATGAGTGTCTGCAGGAGGTGTATGAGCCCGATT
GGCCCGGCAGGGATGAGGCAAACAAGATCGCAGAGAACAACGACCTGCTGTGGATGGATTACCACCAGAA
GCTGGTGGACCAGGCGCTGCTGACCATGGACACGTACCTGGGCCAGTTCCCCGACATCAAGTCACGCATT
GCCAAGCGGGGGCGCAAGCTGGTGGACTACGACAGTGCCCGGCACCACTACGAGTCCCTTCAAACTGCCA
AAAAGAAGGATGAAGCCAAAATTGCCAAGGCCGAGGAGGAGCTCATCAAAGCCCAGAAGGTGTTTGAGGA
GATGAATGTGGATCTGCAGGAGGAGCTGCCGTCCCTGTGGAACAGCCGCGTAGGTTTCTACGTCAACACG
TTCCAGAGCATCGCGGGCCTGGAGGAAAACTTCCACAAGGAGATGAGCAAGCTCAACCAGAACCTCAATG
ATGTGCTGGTCGGCCTGGAGAAGCAACACGGGAGCAACACCTTCACGGTCAAGGCCCAGCCCAGTGACAA
CGCGCCTGCAAAAGGGAACAAGAGCCCTTCGCCTCCAGATGGCTCCCCTGCCGCCACCCCCGAGATCAGA
GTCAACCACGAGCCAGAGCCGGCCGGCGGGGCCACGCCCGGGGCCACCCTCCCCAAGTCCCCATCTCAGC
CCACAGAGAGTCCAGCCGGCAGCCTGCCTTCCGGGGAGCCCAGCGCTGCCGAGGGCACCTTTGCTGTGTC
CTGGCCCAGCCAGACGGCCGAGCCGGGGCCTGCCCAACCAGCAGAGGCCTCGGAGGTGGCGGGTGGGACC
CAACCTGCGGCTGGAGCCCAGGAGCCAGGGGAGACGGCGGCAAGTGAAGCAGCCTCCAGCTCTCTTCCTG
CTGTCGTGGTGGAGACCTTCCCAGCAACTGTGAATGGCACCGTGGAGGGCGGCAGTGGGGCCGGGCGCTT
GGACCTGCCCCCAGGTTTCATGTTCAAGGTACAGGCCCAGCACGACTACACGGCCACTGACACAGACGAG
CTGCAGCTCAAGGCTGGTGATGTGGTGCTGGTGATCCCCTTCCAGAACCCTGAAGAGCAGGATGAAGGCT
GGCTCATGGGCGTGAAGGAGAGCGACTGGAACCAGCACAAGGAGCTGGAGAAGTGCCGTGGCGTCTTCCC
CGAGAACTTCACTGAGAGGGTCCCA

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC214334 representing NM_139349
Red=Cloning site Green=Tags(s)

MAEMGSKGVTAGKIASNVQKKLTRAQEKVLQKLGKADETKDEQFEQCVQNFNKQLTEGTRLQKDLRTYLA
SVKAMHEASKKLNECLQEVYEPDWPGRDEANKIAENNDLLWMDYHQKLVDQALLTMDTYLGQFPDIKSRI
AKRGRKLVDYDSARHHYESLQTAKKKDEAKIAKAEEELIKAQKVFEEMNVDLQEELPSLWNSRVGFYVNT
FQSIAGLEENFHKEMSKLNQNLNDVLVGLEKQHGSNTFTVKAQPSDNAPAKGNKSPSPPDGSPAATPEIR
VNHEPEPAGGATPGATLPKSPSQPTESPAGSLPSGEPSAAEGTFAVSWPSQTAEPGPAQPAEASEVAGGT
QPAAGAQEPGETAASEAASSSLPAVVVETFPATVNGTVEGGSGAGRLDLPPGFMFKVQAQHDYTATDTDE
LQLKAGDVVLVIPFQNPEEQDEGWLMGVKESDWNQHKELEKCRGVFPENFTERVP

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_139349
ORF Size 1425 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_139349.3
RefSeq Size 2283 bp
RefSeq ORF 1428 bp
Locus ID 274
UniProt ID O00499, A0A024RAI4, O00499-4
Cytogenetics 2q14.3
MW 51.6 kDa
Summary This gene encodes several isoforms of a nucleocytoplasmic adaptor protein, one of which was initially identified as a MYC-interacting protein with features of a tumor suppressor. Isoforms that are expressed in the central nervous system may be involved in synaptic vesicle endocytosis and may interact with dynamin, synaptojanin, endophilin, and clathrin. Isoforms that are expressed in muscle and ubiquitously expressed isoforms localize to the cytoplasm and nucleus and activate a caspase-independent apoptotic process. Studies in mouse suggest that this gene plays an important role in cardiac muscle development. Alternate splicing of the gene results in several transcript variants encoding different isoforms. Aberrant splice variants expressed in tumor cell lines have also been described. provided by RefSeq, Mar 2016
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_139349" in other vectors (6)
SKU Description Size Price
RC214334L1 Lenti ORF clone of Human bridging integrator 1 (BIN1), transcript variant 7, Myc-DDK-tagged 10 ug
$757.00
RC214334L2 Lenti ORF clone of Human bridging integrator 1 (BIN1), transcript variant 7, mGFP tagged 10 ug
$757.00
RC214334L3 Lenti ORF clone of Human bridging integrator 1 (BIN1), transcript variant 7, Myc-DDK-tagged 10 ug
$757.00
RC214334L4 Lenti ORF clone of Human bridging integrator 1 (BIN1), transcript variant 7, mGFP tagged 10 ug
$757.00
RG214334 BIN1 (tGFP-tagged) - Human bridging integrator 1 (BIN1), transcript variant 7 10 ug
$657.00
SC311387 BIN1 (untagged)-Human bridging integrator 1 (BIN1), transcript variant 7 10 ug
$503.00

Plasmid Map for RC214334

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

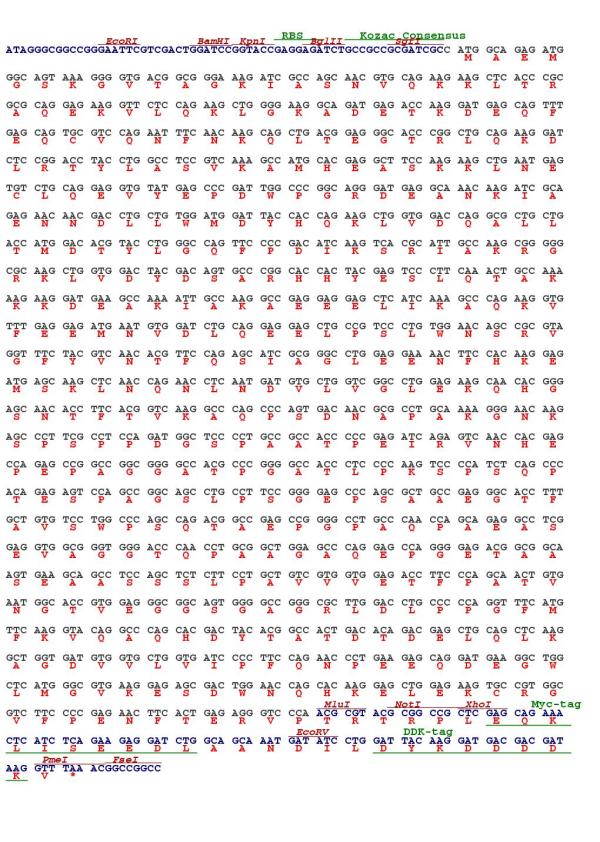

Cloning scheme for RC214334
Circular map for RC214334
