B7-2 (CD86) (NM_006889) Human Tagged ORF Clone

SKU RC206513

CD86 (Myc-DDK-tagged)-Human CD86 molecule (CD86), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: B7-2
• Synonyms: B7-2; B7.2; B70; CD28LG2; LAB72
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

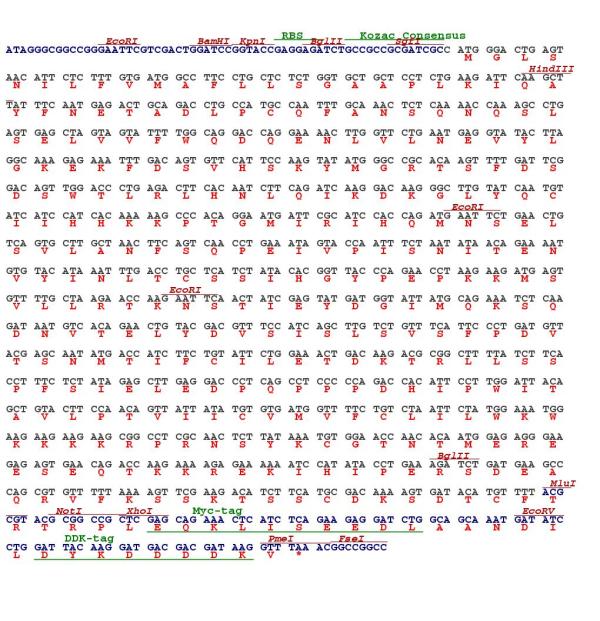

  ORF Nucleotide Sequence

  >RC206513 representing NM_006889; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGACTGAGTAACATTCTCTTTGTGATGGCCTTCCTGCTCTCTGGTGCTGCTCCTCTGAAGATTCAAG; CTTATTTCAATGAGACTGCAGACCTGCCATGCCAATTTGCAAACTCTCAAAACCAAAGCCTGAGTGAGCT; AGTAGTATTTTGGCAGGACCAGGAAAACTTGGTTCTGAATGAGGTATACTTAGGCAAAGAGAAATTTGAC; AGTGTTCATTCCAAGTATATGGGCCGCACAAGTTTTGATTCGGACAGTTGGACCCTGAGACTTCACAATC; TTCAGATCAAGGACAAGGGCTTGTATCAATGTATCATCCATCACAAAAAGCCCACAGGAATGATTCGCAT; CCACCAGATGAATTCTGAACTGTCAGTGCTTGCTAACTTCAGTCAACCTGAAATAGTACCAATTTCTAAT; ATAACAGAAAATGTGTACATAAATTTGACCTGCTCATCTATACACGGTTACCCAGAACCTAAGAAGATGA; GTGTTTTGCTAAGAACCAAGAATTCAACTATCGAGTATGATGGTATTATGCAGAAATCTCAAGATAATGT; CACAGAACTGTACGACGTTTCCATCAGCTTGTCTGTTTCATTCCCTGATGTTACGAGCAATATGACCATC; TTCTGTATTCTGGAAACTGACAAGACGCGGCTTTTATCTTCACCTTTCTCTATAGAGCTTGAGGACCCTC; AGCCTCCCCCAGACCACATTCCTTGGATTACAGCTGTACTTCCAACAGTTATTATATGTGTGATGGTTTT; CTGTCTAATTCTATGGAAATGGAAGAAGAAGAAGCGGCCTCGCAACTCTTATAAATGTGGAACCAACACA; ATGGAGAGGGAAGAGAGTGAACAGACCAAGAAAAGAGAAAAAATCCATATACCTGAAAGATCTGATGAAG; CCCAGCGTGTTTTTAAAAGTTCGAAGACATCTTCATGCGACAAAAGTGATACATGTTTT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC206513 representing NM_006889; Red=Cloning site Green=Tags(s); ; MGLSNILFVMAFLLSGAAPLKIQAYFNETADLPCQFANSQNQSLSELVVFWQDQENLVLNEVYLGKEKFD; SVHSKYMGRTSFDSDSWTLRLHNLQIKDKGLYQCIIHHKKPTGMIRIHQMNSELSVLANFSQPEIVPISN; ITENVYINLTCSSIHGYPEPKKMSVLLRTKNSTIEYDGIMQKSQDNVTELYDVSISLSVSFPDVTSNMTI; FCILETDKTRLLSSPFSIELEDPQPPPDHIPWITAVLPTVIICVMVFCLILWKWKKKKRPRNSYKCGTNT; MEREESEQTKKREKIHIPERSDEAQRVFKSSKTSSCDKSDTCF; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV

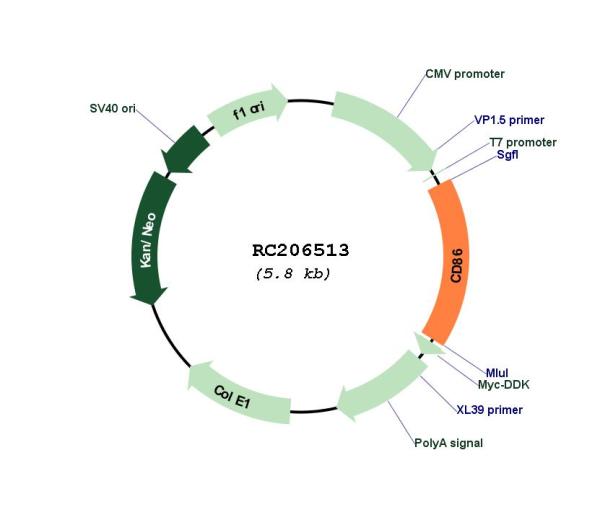

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006889
• ORF Size: 969 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006889.4, NP_008820.3
• RefSeq Size: 2794 bp
• RefSeq ORF: 972 bp
• Locus ID: 942
• UniProt ID: P42081
• Cytogenetics: 3q13.33
• Domains: IG, IGv
• Protein Families: Druggable Genome, Transcription Factors, Transmembrane
• Protein Pathways: Allograft rejection, Autoimmune thyroid disease, Cell adhesion molecules (CAMs), Graft-versus-host disease, Systemic lupus erythematosus, Toll-like receptor signaling pathway, Type I diabetes mellitus, Viral myocarditis
• MW: 37.02 kDa
• Summary: This gene encodes a type I membrane protein that is a member of the immunoglobulin superfamily. This protein is expressed by antigen-presenting cells, and it is the ligand for two proteins at the cell surface of T cells, CD28 antigen and cytotoxic T-lymphocyte-associated protein 4. Binding of this protein with CD28 antigen is a costimulatory signal for activation of the T-cell. Binding of this protein with cytotoxic T-lymphocyte-associated protein 4 negatively regulates T-cell activation and diminishes the immune response. Alternative splicing results in several transcript variants encoding different isoforms.[provided by RefSeq, May 2011]
