ALG1 (NM_019109) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC206343
ALG1 (Myc-DDK-tagged)-Human asparagine-linked glycosylation 1, beta-1,4-mannosyltransferase homolog (S. cerevisiae) (ALG1)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $457.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA331088 Rabbit polyclonal Anti-ALG1 Antibody
100 ul
$585.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "ALG1 or NM_019109"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol ALG1
Synonyms CDG1K; hMat-1; HMAT1; HMT-1; HMT1; Mat-1; MT-1
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC206343 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCGGCCTCATGCTTGGTCCTGCTGGCGCTGTGTCTGCTGCTGCCGCTGCTGCTGCTGGGAGGATGGA
AGCGCTGGCGCCGGGGGCGGGCGGCCCGGCATGTAGTAGCGGTGGTGCTGGGCGACGTGGGCCGCAGCCC
CCGTATGCAGTACCACGCGCTGTCGTTGGCCATGCACGGCTTCTCGGTGACCCTCCTGGGGTTCTGCAAC
TCCAAACCCCATGATGAGCTCTTGCAGAACAACAGAATTCAGATTGTGGGGTTGACAGAACTTCAGAGTC
TTGCAGTTGGGCCCCGAGTTTTCCAGTACGGAGTCAAAGTTGTACTTCAGGCTATGTACTTGCTGTGGAA
GTTGATGTGGAGGGAGCCAGGTGCCTATATCTTTCTCCAGAACCCCCCAGGTCTGCCTAGCATTGCTGTC
TGCTGGTTCGTGGGCTGCCTTTGTGGAAGCAAGCTCGTCATTGACTGGCACAACTATGGCTACTCCATCA
TGGGTCTGGTGCATGGCCCCAACCATCCCCTCGTTCTGCTGGCCAAGTGGTACGAGAAGTTCTTTGGGCG
CCTGTCCCACCTGAACCTGTGTGTTACCAATGCTATGCGAGAAGACCTGGCGGATAACTGGCACATCAGG
GCTGTGACCGTCTACGACAAGCCCGCATCTTTCTTTAAAGAGACACCTCTGGACCTGCAGCACCGGCTCT
TCATGAAGCTGGGCAGCATGCACTCTCCGTTCAGGGCCCGCTCAGAACCTGAGGACCCAGTCACGGAGCG
GTCGGCCTTCACGGAGCGGGATGCTGGGAGCGGGCTGGTGACGCGTCTCCGTGAGCGGCCAGCCCTGCTG
GTCAGCAGCACGAGCTGGACAGAGGACGAAGACTTCTCCATCCTGCTGGCAGCTTTAGAAAAGTTTGAAC
AACTGACTCTTGATGGACACAACCTTCCTTCTCTCGTCTGTGTGATAACAGGCAAAGGGCCTATGAGGGA
GTATTATAGCCGCCTCATCCACCAGAAGCACTTCCAGCACATCCAGGTCTGCACCCCCTGGCTGGAGGCC
GAGGACTACCCCCTGCTTCTAGGGTCGGCGGACCTGGGTGTCTGTCTGCACACGTCCTCCAGTGGCCTGG
ACCTGCCCATGAAGGTGGTGGACATGTTCGGGTGCTGTTTGCCTGTGTGTGCTGTGAACTTCAAGTGTTT
ACATGAGCTGGTGAAACATGAAGAAAATGGCCTGGTCTTTGAGGACTCAGAGGAACTGGCAGCTCAGCTG
CAGATGCTTTTCTCAAACTTTCCTGATCCTGCGGGCAAGCTAAACCAGTTCCGGAAGAACCTGCGGGAGT
CGCAGCAGCTCCGATGGGATGAGAGCTGGGTGCGGACTGTGCTCCCTTTGGTTATGGACACA

AGCGGACCGACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCC
TGGATTACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC206343 protein sequence
Red=Cloning site Green=Tags(s)

MAASCLVLLALCLLLPLLLLGGWKRWRRGRAARHVVAVVLGDVGRSPRMQYHALSLAMHGFSVTLLGFCN
SKPHDELLQNNRIQIVGLTELQSLAVGPRVFQYGVKVVLQAMYLLWKLMWREPGAYIFLQNPPGLPSIAV
CWFVGCLCGSKLVIDWHNYGYSIMGLVHGPNHPLVLLAKWYEKFFGRLSHLNLCVTNAMREDLADNWHIR
AVTVYDKPASFFKETPLDLQHRLFMKLGSMHSPFRARSEPEDPVTERSAFTERDAGSGLVTRLRERPALL
VSSTSWTEDEDFSILLAALEKFEQLTLDGHNLPSLVCVITGKGPMREYYSRLIHQKHFQHIQVCTPWLEA
EDYPLLLGSADLGVCLHTSSSGLDLPMKVVDMFGCCLPVCAVNFKCLHELVKHEENGLVFEDSEELAAQL
QMLFSNFPDPAGKLNQFRKNLRESQQLRWDESWVRTVLPLVMDT

SGPTRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-RsrII Cloning Scheme for this gene | Plasmid Map
ACCN NM_019109
ORF Size 1392 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_019109.2
RefSeq Size 3946 bp
RefSeq ORF 1395 bp
Locus ID 56052
UniProt ID Q9BT22
Cytogenetics 16p13.3
Protein Families Transmembrane
Protein Pathways Metabolic pathways, N-Glycan biosynthesis
MW 52.6 kDa
Summary The enzyme encoded by this gene catalyzes the first mannosylation step in the biosynthesis of lipid-linked oligosaccharides. This gene is mutated in congenital disorder of glycosylation type Ik. provided by RefSeq, Dec 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_019109" in other vectors (4)
SKU Description Size Price
RC206343L3 Lenti ORF clone of Human asparagine-linked glycosylation 1, beta-1,4-mannosyltransferase homolog (S. cerevisiae) (ALG1), Myc-DDK-tagged 10 ug
$757.00
RC206343L4 Lenti ORF clone of Human asparagine-linked glycosylation 1, beta-1,4-mannosyltransferase homolog (S. cerevisiae) (ALG1), mGFP tagged 10 ug
$757.00
RG206343 ALG1 (tGFP-tagged) - Human asparagine-linked glycosylation 1, beta-1,4-mannosyltransferase homolog (S. cerevisiae) (ALG1) 10 ug
$489.00 $657.00
SC122883 ALG1 (untagged)-Human asparagine-linked glycosylation 1, beta-1,4-mannosyltransferase homolog (S. cerevisiae) (ALG1) 10 ug
$457.00

Plasmid Map for RC206343

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

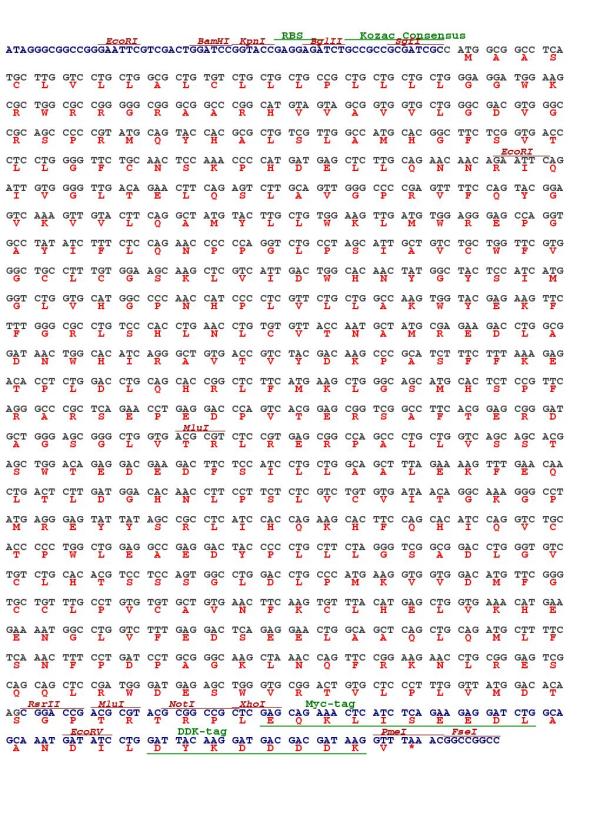

Cloning scheme for RC206343
Circular map for RC206343

file-alt Citations

ALG1-CDG: Clinical and Molecular Characterization of 39 Unreported Patients
Ng, Shiryaev, Rymen et al
Hum. Mutat. (2016)
Cited by 59
AI Summary: In this study, OriGene’s Human ALG1 cDNA (RC206343) was used to generate expression constructs for yeast complementation assays, enabling the functional assessment of patient-derived ALG1 mutations.
Snippet: Yeast Complementation Assay Human ALG1 cDNA (RC206343 - Origene) was cloned into the yeast expression construct pYES2.1 (Thermo Fisher) to generate pYES2.1-hALG1. Before proceeding with complementation studies, all non-synonymous ... Cite SaveSaving
Showing 1-1 of 1 papers.
Powered by BizGenius
*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
