ERK5 (MAPK7) (NM_139032) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC200655
MAPK7 (Myc-DDK-tagged)-Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $620.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA502119 MAPK7 (ERK5) mouse monoclonal antibody, clone OTI3H2 (formerly 3H2) 100 ul
$447.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "ERK5 or NM_139032"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol ERK5
Synonyms BMK1; ERK4; ERK5; PRKM7
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

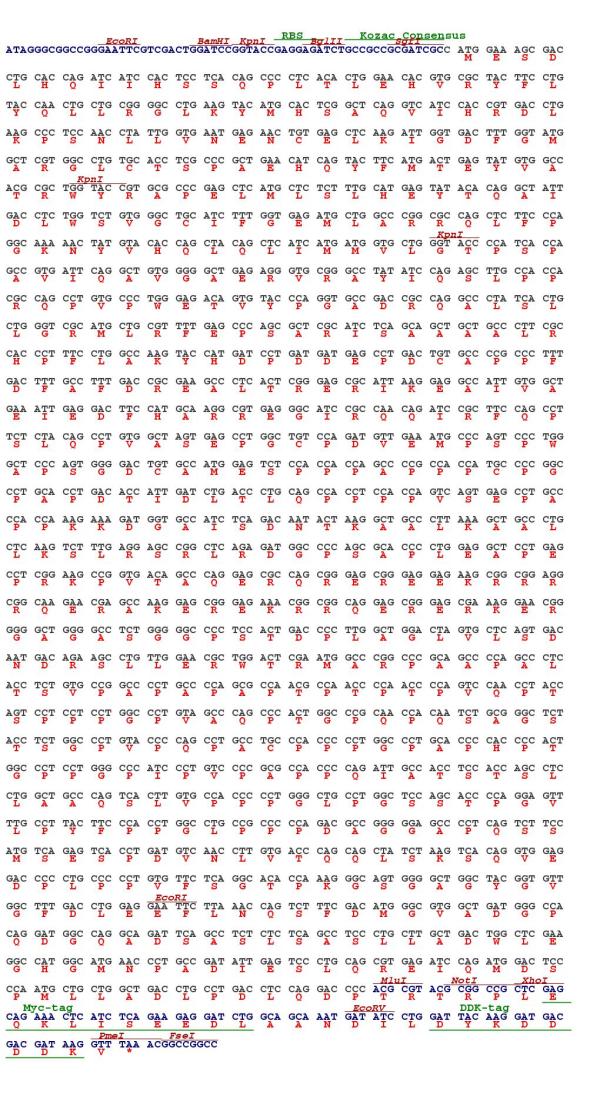

ORF Nucleotide Sequence
>RC200655 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAAAGCGACCTGCACCAGATCATCCACTCCTCACAGCCCCTCACACTGGAACACGTGCGCTACTTCC
TGTACCAACTGCTGCGGGGCCTGAAGTACATGCACTCGGCTCAGGTCATCCACCGTGACCTGAAGCCCTC
CAACCTATTGGTGAATGAGAACTGTGAGCTCAAGATTGGTGACTTTGGTATGGCTCGTGGCCTGTGCACC
TCGCCCGCTGAACATCAGTACTTCATGACTGAGTATGTGGCCACGCGCTGGTACCGTGCGCCCGAGCTCA
TGCTCTCTTTGCATGAGTATACACAGGCTATTGACCTCTGGTCTGTGGGCTGCATCTTTGGTGAGATGCT
GGCCCGGCGCCAGCTCTTCCCAGGCAAAAACTATGTACACCAGCTACAGCTCATCATGATGGTGCTGGGT
ACCCCATCACCAGCCGTGATTCAGGCTGTGGGGGCTGAGAGGGTGCGGGCCTATATCCAGAGCTTGCCAC
CACGCCAGCCTGTGCCCTGGGAGACAGTGTACCCAGGTGCCGACCGCCAGGCCCTATCACTGCTGGGTCG
CATGCTGCGTTTTGAGCCCAGCGCTCGCATCTCAGCAGCTGCTGCCCTTCGCCACCCTTTCCTGGCCAAG
TACCATGATCCTGATGATGAGCCTGACTGTGCCCCGCCCTTTGACTTTGCCTTTGACCGCGAAGCCCTCA
CTCGGGAGCGCATTAAGGAGGCCATTGTGGCTGAAATTGAGGACTTCCATGCAAGGCGTGAGGGCATCCG
CCAACAGATCCGCTTCCAGCCTTCTCTACAGCCTGTGGCTAGTGAGCCTGGCTGTCCAGATGTTGAAATG
CCCAGTCCCTGGGCTCCCAGTGGGGACTGTGCCATGGAGTCTCCACCACCAGCCCCGCCACCATGCCCCG
GCCCTGCACCTGACACCATTGATCTGACCCTGCAGCCACCTCCACCAGTCAGTGAGCCTGCCCCACCAAA
GAAAGATGGTGCCATCTCAGACAATACTAAGGCTGCCCTTAAAGCTGCCCTGCTCAAGTCTTTGAGGAGC
CGGCTCAGAGATGGCCCCAGCGCACCCCTGGAGGCTCCTGAGCCTCGGAAGCCGGTGACAGCCCAGGAGC
GCCAGCGGGAGCGGGAGGAGAAGCGGCGGAGGCGGCAAGAACGAGCCAAGGAGCGGGAGAAACGGCGGCA
GGAGCGGGAGCGAAAGGAACGGGGGGCTGGGGCCTCTGGGGGCCCCTCCACTGACCCCTTGGCTGGACTA
GTGCTCAGTGACAATGACAGAAGCCTGTTGGAACGCTGGACTCGAATGGCCCGGCCCGCAGCCCCAGCCC
TCACCTCTGTGCCGGCCCCTGCCCCAGCGCCAACGCCAACCCCAACCCCAGTCCAACCTACCAGTCCTCC
TCCTGGCCCTGTAGCCCAGCCCACTGGCCCGCAACCACAATCTGCGGGCTCTACCTCTGGCCCTGTACCC
CAGCCTGCCTGCCCACCCCCTGGCCCTGCACCCCACCCCACTGGCCCTCCTGGGCCCATCCCTGTCCCCG
CGCCACCCCAGATTGCCACCTCCACCAGCCTCCTGGCTGCCCAGTCACTTGTGCCACCCCCTGGGCTGCC
TGGCTCCAGCACCCCAGGAGTTTTGCCTTACTTCCCACCTGGCCTGCCGCCCCCAGACGCCGGGGGAGCC
CCTCAGTCTTCCATGTCAGAGTCACCTGATGTCAACCTTGTGACCCAGCAGCTATCTAAGTCACAGGTGG
AGGACCCCCTGCCCCCTGTGTTCTCAGGCACACCAAAGGGCAGTGGGGCTGGCTACGGTGTTGGCTTTGA
CCTGGAGGAATTCTTAAACCAGTCTTTCGACATGGGCGTGGCTGATGGGCCACAGGATGGCCAGGCAGAT
TCAGCCTCTCTCTCAGCCTCCCTGCTTGCTGACTGGCTCGAAGGCCATGGCATGAACCCTGCCGATATTG
AGTCCCTGCAGCGTGAGATCCAGATGGACTCCCCAATGCTGCTGGCTGACCTGCCTGACCTCCAGGACCC
C

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC200655 protein sequence
Red=Cloning site Green=Tags(s)

MESDLHQIIHSSQPLTLEHVRYFLYQLLRGLKYMHSAQVIHRDLKPSNLLVNENCELKIGDFGMARGLCT
SPAEHQYFMTEYVATRWYRAPELMLSLHEYTQAIDLWSVGCIFGEMLARRQLFPGKNYVHQLQLIMMVLG
TPSPAVIQAVGAERVRAYIQSLPPRQPVPWETVYPGADRQALSLLGRMLRFEPSARISAAAALRHPFLAK
YHDPDDEPDCAPPFDFAFDREALTRERIKEAIVAEIEDFHARREGIRQQIRFQPSLQPVASEPGCPDVEM
PSPWAPSGDCAMESPPPAPPPCPGPAPDTIDLTLQPPPPVSEPAPPKKDGAISDNTKAALKAALLKSLRS
RLRDGPSAPLEAPEPRKPVTAQERQREREEKRRRRQERAKEREKRRQERERKERGAGASGGPSTDPLAGL
VLSDNDRSLLERWTRMARPAAPALTSVPAPAPAPTPTPTPVQPTSPPPGPVAQPTGPQPQSAGSTSGPVP
QPACPPPGPAPHPTGPPGPIPVPAPPQIATSTSLLAAQSLVPPPGLPGSSTPGVLPYFPPGLPPPDAGGA
PQSSMSESPDVNLVTQQLSKSQVEDPLPPVFSGTPKGSGAGYGVGFDLEEFLNQSFDMGVADGPQDGQAD
SASLSASLLADWLEGHGMNPADIESLQREIQMDSPMLLADLPDLQDP

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_139032
ORF Size 2031 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_139032.3
RefSeq Size 2780 bp
RefSeq ORF 2034 bp
Locus ID 5598
UniProt ID Q13164
Cytogenetics 17p11.2
Protein Families Druggable Genome, Protein Kinase
Protein Pathways Gap junction, GnRH signaling pathway, MAPK signaling pathway, Neurotrophin signaling pathway
MW 73.2 kDa
Summary The protein encoded by this gene is a member of the MAP kinase family. MAP kinases act as an integration point for multiple biochemical signals, and are involved in a wide variety of cellular processes such as proliferation, differentiation, transcription regulation and development. This kinase is specifically activated by mitogen-activated protein kinase kinase 5 (MAP2K5/MEK5). It is involved in the downstream signaling processes of various receptor molecules including receptor type kinases, and G protein-coupled receptors. In response to extracelluar signals, this kinase translocates to cell nucleus, where it regulates gene expression by phosphorylating, and activating different transcription factors. Four alternatively spliced transcript variants of this gene encoding two distinct isoforms have been reported. provided by RefSeq, Jul 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_139032" in other vectors (6)
SKU Description Size Price
RC200655L1 Lenti ORF clone of Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2, Myc-DDK-tagged 10 ug
$920.00
RC200655L2 Lenti ORF clone of Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2, mGFP tagged 10 ug
$920.00
RC200655L3 Lenti ORF clone of Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2, Myc-DDK-tagged 10 ug
$920.00
RC200655L4 Lenti ORF clone of Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2, mGFP tagged 10 ug
$920.00
RG200655 MAPK7 (tGFP-tagged) - Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2 10 ug
$789.00 $820.00
SC127852 MAPK7 (untagged)-Human mitogen-activated protein kinase 7 (MAPK7), transcript variant 2 10 ug
$621.00

Plasmid Map for RC200655

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

Cloning scheme for RC200655
Circular map for RC200655

file-alt Citations

Mutant MAPK7-Induced Idiopathic Scoliosis is Linked to Impaired Osteogenesis
Zhou, Chen, Xu et al
Cell. Physiol. Biochem. (2018) 48 (3), 880-890 DOI: 10.1159/000491956
AI Summary: OriGene’s flag-tagged ORF clone of human MAPK7 was used to produce wild-type MAPK7 mRNA for functional rescue experiments, enabling the study to investigate the role of MAPK7 in osteogenesis and idiopathic scoliosis.
Snippet: Plasmid construction and MAPK7 siRNA. WT versions of human MAPK7 mRNA and RPS6KA3 mRNA were produced from a flag-tagged ORF clone of human MAPK7 (Origene, Beijing, China). mRNAs were obtained from linearized constructs as previously reported
Showing 1-1 of 1 papers.
