RAP1B (NM_015646) Human Tagged ORF Clone

SKU RG221678

RAP1B (tGFP-tagged) - Human RAP1B, member of RAS oncogene family (RAP1B), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: RAP1B
• Synonyms: K-REV; RAL1B
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

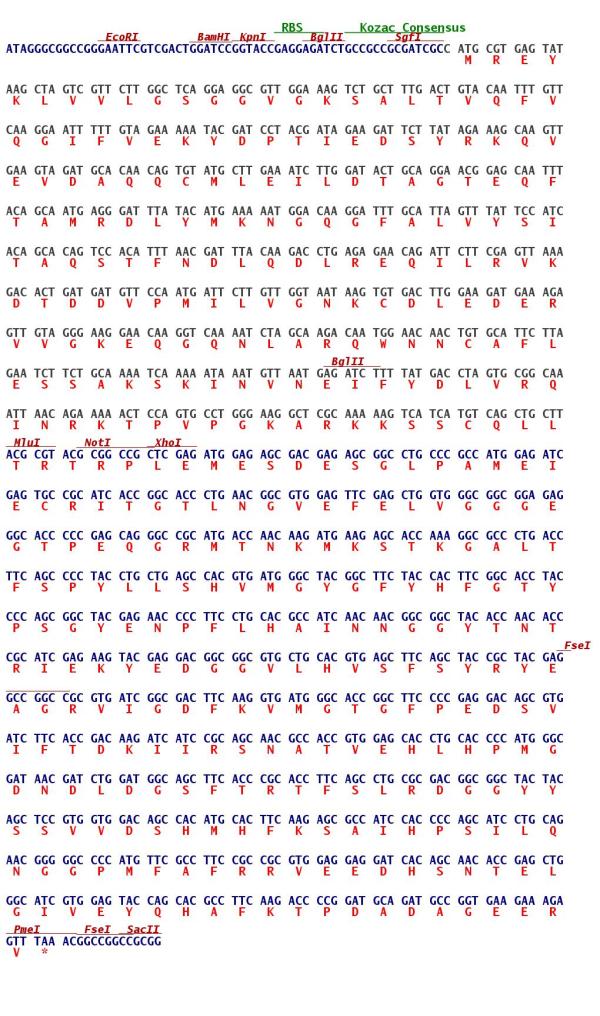

  ORF Nucleotide Sequence

  >RG221678 representing NM_015646; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCGTGAGTATAAGCTAGTCGTTCTTGGCTCAGGAGGCGTTGGAAAGTCTGCTTTGACTGTACAATTTG; TTCAAGGAATTTTTGTAGAAAAATACGATCCTACGATAGAAGATTCTTATAGAAAGCAAGTTGAAGTAGA; TGCACAACAGTGTATGCTTGAAATCTTGGATACTGCAGGAACGGAGCAATTTACAGCAATGAGGGATTTA; TACATGAAAAATGGACAAGGATTTGCATTAGTTTATTCCATCACAGCACAGTCCACATTTAACGATTTAC; AAGACCTGAGAGAACAGATTCTTCGAGTTAAAGACACTGATGATGTTCCAATGATTCTTGTTGGTAATAA; GTGTGACTTGGAAGATGAAAGAGTTGTAGGGAAGGAACAAGGTCAAAATCTAGCAAGACAATGGAACAAC; TGTGCATTCTTAGAATCTTCTGCAAAATCAAAAATAAATGTTAATGAGATCTTTTATGACCTAGTGCGGC; AAATTAACAGAAAAACTCCAGTGCCTGGGAAGGCTCGCAAAAAGTCATCATGTCAGCTGCTT; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG221678 representing NM_015646; Red=Cloning site Green=Tags(s); ; MREYKLVVLGSGGVGKSALTVQFVQGIFVEKYDPTIEDSYRKQVEVDAQQCMLEILDTAGTEQFTAMRDL; YMKNGQGFALVYSITAQSTFNDLQDLREQILRVKDTDDVPMILVGNKCDLEDERVVGKEQGQNLARQWNN; CAFLESSAKSKINVNEIFYDLVRQINRKTPVPGKARKKSSCQLL; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_015646
• ORF Size: 552 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_015646.6
• RefSeq Size: 2126 bp
• RefSeq ORF: 555 bp
• Locus ID: 5908
• UniProt ID: P61224
• Cytogenetics: 12q15
• Domains: RAB, RAN, ras, RAS, RHO
• Protein Families: Druggable Genome
• Protein Pathways: Chemokine signaling pathway, Focal adhesion, Leukocyte transendothelial migration, Long-term potentiation, MAPK signaling pathway, Neurotrophin signaling pathway, Renal cell carcinoma
• Summary: This gene encodes a member of the RAS-like small GTP-binding protein superfamily. Members of this family regulate multiple cellular processes including cell adhesion and growth and differentiation. This protein localizes to cellular membranes and has been shown to regulate integrin-mediated cell signaling. This protein also plays a role in regulating outside-in signaling in platelets. Alternate splicing results in multiple transcript variants. Pseudogenes of this gene are found on chromosomes 3, 5, 6 and 9. [provided by RefSeq, Oct 2011]
