SOX13 (NM_005686) Human Tagged ORF Clone

SKU RG210697

SOX13 (tGFP-tagged) - Human SRY (sex determining region Y)-box 13 (SOX13)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SOX13
• Synonyms: ICA12; Sox-13
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG210697 representing NM_005686; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCCATGAGGAGCCCCATCTCTGCCCAGCTGGCCCTGGATGGCGTTGGCACCATGGTGAACTGCACCA; TCAAGTCAGAGGAGAAGAAAGAGCCTTGCCACGAGGCCCCCCAGGGCTCAGCCACTGCCGCTGAACCTCA; GCCTGGAGACCCAGCCCGGGCCTCCCAGGATAGTGCTGACCCCCAAGCTCCAGCCCAGGGGAATTTCAGG; GGCTCCTGGGACTGTAGCTCTCCAGAGGGTAATGGGTCCCCAGAACCCAAGAGACCAGGAGTGTCGGAGG; CTGCCTCTGGAAGCCAGGAGAAGCTGGACTTCAACCGAAATTTGAAAGAAGTGGTGCCAGCCATAGAGAA; GCTGTTGTCCAGTGACTGGAAGGAGAGGTTTCTAGGAAGGAACTCTATGGAAGCCAAAGATGTCAAAGGG; ACCCAAGAGAGCCTAGCAGAGAAGGAGCTCCAGCTTCTGGTCATGATTCACCAGCTGTCCACCCTGCGGG; ACCAGCTCCTGACAGCCCACTCGGAGCAGAAGAACATGGCTGCCATGCTGTTTGAGAAGCAGCAGCAGCA; GATGGAGCTTGCCCGGCAGCAGCAGGAGCAGATTGCAAAGCAGCAGCAGCAGCTGATTCAGCAGCAGCAT; AAGATCAACCTCCTTCAGCAGCAGATCCAGCAGGTTAACATGCCTTATGTCATGATCCCAGCCTTCCCCC; CAAGCCACCAACCTCTGCCTGTCACCCCTGACTCCCAGCTGGCCTTACCCATTCAGCCCATTCCCTGCAA; ACCAGTGGAGTATCCGCTGCAGCTGCTGCACAGCCCCCCTGCCCCAGTGGTGAAGAGGCCTGGGGCCATG; GCCACCCACCACCCCCTGCAGGAGCCCTCCCAGCCCCTGAACCTCACAGCCAAGCCCAAGGCCCCCGAGC; TGCCCAACACCTCCAGCTCCCCAAGCCTGAAGATGAGCAGCTGTGTGCCCCGCCCCCCCAGCCATGGAGG; CCCCACGCGGGACCTGCAGTCCAGCCCCCCGAGCCTGCCTCTGGGCTTCCTTGGTGAAGGGGACGCTGTC; ACCAAAGCCATCCAGGATGCTCGGCAGCTGCTGCACAGCCACAGTGGGGCCTTGGATGGCTCCCCCAACA; CCCCCTTCCGTAAGGACCTCATCAGCCTGGACTCATCCCCAGCCAAGGAGCGGCTGGAGGACGGCTGTGT; GCACCCACTGGAGGAAGCCATGCTGAGCTGCGACATGGATGGCTCCCGCCACTTCCCCGAGTCCCGAAAC; AGCAGCCACATCAAGAGGCCCATGAACGCCTTCATGGTGTGGGCCAAGGATGAGCGGAGGAAGATCCTGC; AAGCCTTCCCAGACATGCACAACTCCAGCATCAGCAAGATCCTTGGATCTCGCTGGAAGTCCATGACCAA; CCAGGAGAAGCAGCCCTACTATGAGGAACAGGCGCGGCTGAGCCGGCAGCACCTGGAGAAGTATCCTGAC; TACAAGTACAAGCCGCGGCCCAAGCGCACCTGCATCGTGGAGGGCAAGCGGCTGCGCGTGGGAGAGTACA; AGGCCCTGATGAGGACCCGGCGTCAGGATGCCCGCCAGAGCTACGTGATCCCCCCGCAGGCTGGCCAGGT; GCAGATGAGCTCCTCAGATGTCCTGTACCCTCGGGCAGCAGGCATGCCGCTGGCACAGCCACTGGTGGAG; CACTATGTCCCTCGTAGCCTGGACCCCAACATGCCTGTGATCGTCAACACCTGCAGCCTCAGAGAGGAGG; GTGAGGGCACAGATGACAGGCACTCGGTGGCTGATGGCGAGATGTACCGGTACAGCGAGGACGAGGACTC; GGAGGGCGAAGAGAAGAGCGATGGGGAGTTGGTGGTGCTCACAGAC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG210697 representing NM_005686; Red=Cloning site Green=Tags(s); ; MSMRSPISAQLALDGVGTMVNCTIKSEEKKEPCHEAPQGSATAAEPQPGDPARASQDSADPQAPAQGNFR; GSWDCSSPEGNGSPEPKRPGVSEAASGSQEKLDFNRNLKEVVPAIEKLLSSDWKERFLGRNSMEAKDVKG; TQESLAEKELQLLVMIHQLSTLRDQLLTAHSEQKNMAAMLFEKQQQQMELARQQQEQIAKQQQQLIQQQH; KINLLQQQIQQVNMPYVMIPAFPPSHQPLPVTPDSQLALPIQPIPCKPVEYPLQLLHSPPAPVVKRPGAM; ATHHPLQEPSQPLNLTAKPKAPELPNTSSSPSLKMSSCVPRPPSHGGPTRDLQSSPPSLPLGFLGEGDAV; TKAIQDARQLLHSHSGALDGSPNTPFRKDLISLDSSPAKERLEDGCVHPLEEAMLSCDMDGSRHFPESRN; SSHIKRPMNAFMVWAKDERRKILQAFPDMHNSSISKILGSRWKSMTNQEKQPYYEEQARLSRQHLEKYPD; YKYKPRPKRTCIVEGKRLRVGEYKALMRTRRQDARQSYVIPPQAGQVQMSSSDVLYPRAAGMPLAQPLVE; HYVPRSLDPNMPVIVNTCSLREEGEGTDDRHSVADGEMYRYSEDEDSEGEEKSDGELVVLTD; ; TRTRPLE - GFP Tag - V

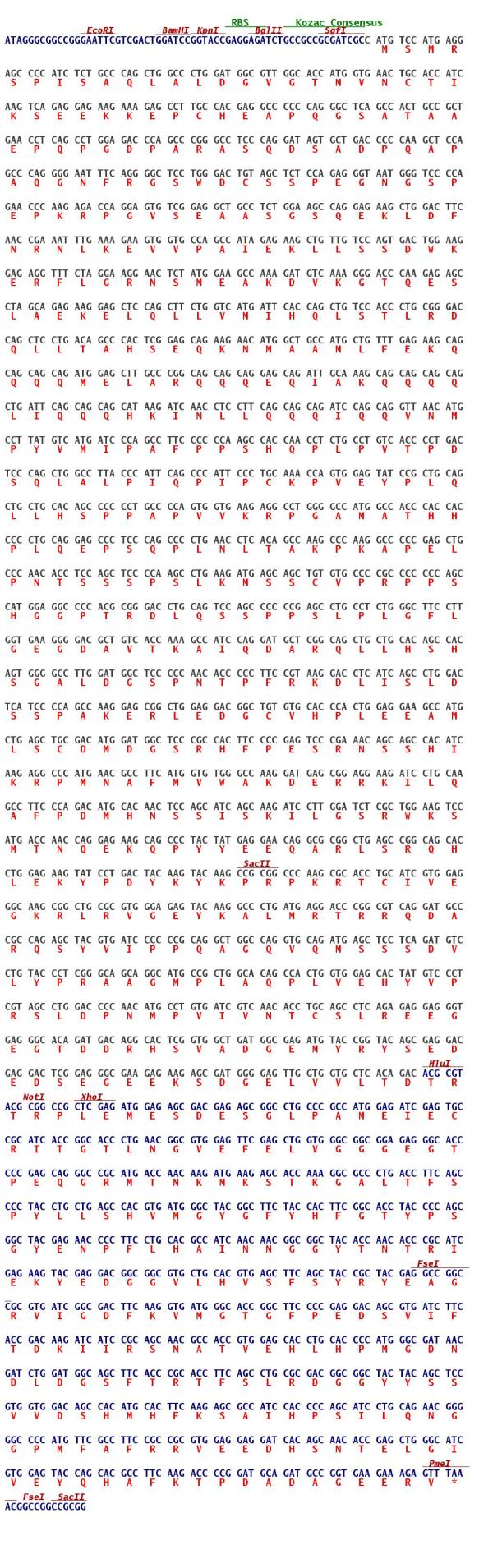

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_005686
• ORF Size: 1866 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_005686.3
• RefSeq Size: 4088 bp
• RefSeq ORF: 1869 bp
• Locus ID: 9580
• UniProt ID: Q9UN79
• Cytogenetics: 1q32.1
• Protein Families: Transcription Factors
• Summary: This gene encodes a member of the SOX (SRY-related HMG-box) family of transcription factors involved in the regulation of embryonic development and in the determination of cell fate. The encoded protein may act as a transcriptional regulator after forming a protein complex with other proteins. It has also been determined to be a type-1 diabetes autoantigen, also known as islet cell antibody 12. [provided by RefSeq, Jul 2008]
