PDE1A (NM_005019) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RG205292
PDE1A (tGFP-tagged) - Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1
ORF Plasmid:
tGFP DDK
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
$489.00 $707.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA803629 PDE1A mouse monoclonal antibody, clone OTI7D5 (formerly 7D5) 100 ul
$447.00
TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "PDE1A or NM_005019"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol PDE1A
Synonyms CAM-PDE-1A; CAM-PDE 1A; HCAM-1; HCAM1; HSPDE1A
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG205292 representing NM_005019
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGGGTCTAGTGCCACAGAGATTGAAGAATTGGAAAACACCACTTTTAAGTATCTTACAGGAGAACAGA
CTGAAAAAATGTGGCAGCGCCTGAAAGGAATACTAAGATGCTTGGTGAAGCAGCTGGAAAGAGGTGATGT
TAACGTCGTCGACTTAAAGAAGAATATTGAATATGCGGCATCTGTGCTGGAAGCAGTTTATATCGATGAA
ACAAGAAGACTTCTGGATACTGAAGATGAGCTCAGTGACATTCAGACTGACTCAGTCCCATCTGAAGTCC
GGGACTGGTTGGCTTCTACCTTTACACGGAAAATGGGGATGACAAAAAAGAAACCTGAGGAAAAACCAAA
ATTTCGGAGCATTGTGCATGCTGTTCAAGCTGGAATTTTTGTGGAAAGAATGTACCGAAAAACATATCAT
ATGGTTGGTTTGGCATATCCAGCAGCTGTCATCGTAACATTAAAGGATGTTGATAAATGGTCTTTCGATG
TATTTGCCCTAAATGAAGCAAGTGGAGAGCATAGTCTGAAGTTTATGATTTATGAACTGTTTACCAGATA
TGATCTTATCAACCGTTTCAAGATTCCTGTTTCTTGCCTAATCACCTTTGCAGAAGCTTTAGAAGTTGGT
TACAGCAAGTACAAAAATCCATATCACAATTTGATTCATGCAGCTGATGTCACTCAAACTGTGCATTACA
TAATGCTTCATACAGGTATCATGCACTGGCTCACTGAACTGGAAATTTTAGCAATGGTCTTTGCTGCTGC
CATTCATGATTATGAGCATACAGGGACAACAAACAACTTTCACATTCAGACAAGGTCAGATGTTGCCATT
TTGTATAATGATCGCTCTGTCCTTGAGAATCACCACGTGAGTGCAGCTTATCGACTTATGCAAGAAGAAG
AAATGAATATCTTGATAAATTTATCCAAAGATGACTGGAGGGATCTTCGGAACCTAGTGATTGAAATGGT
TTTATCTACAGACATGTCAGGTCACTTCCAGCAAATTAAAAATATAAGAAACAGTTTGCAGCAGCCTGAA
GGGATTGACAGAGCCAAAACCATGTCCCTGATTCTCCACGCAGCAGACATCAGCCACCCAGCCAAATCCT
GGAAGCTGCATTATCGGTGGACCATGGCCCTAATGGAGGAGTTTTTCCTGCAGGGAGATAAAGAAGCTGA
ATTAGGGCTTCCATTTTCCCCACTTTGTGATCGGAAGTCAACCATGGTGGCCCAGTCACAAATAGGTTTC
ATCGATTTCATAGTAGAGCCAACATTTTCTCTTCTGACAGACTCAACAGAGAAAATTGTTATTCCTCTTA
TAGAGGAAGCCTCAAAAGCCGAAACTTCTTCCTATGTGGCAAGCAGCTCAACCACCATTGTGGGGTTACA
CATTGCTGATGCACTAAGACGATCAAATACAAAAGGCTCCATGAGTGATGGGTCCTATTCCCCAGACTAC
TCCCTTGCAGCAGTGGACCTGAAGAGTTTCAAGAACAACCTGGTGGACATCATTCAGCAGAACAAAGAGA
GGTGGAAAGAGTTAGCTGCACAAGGTGAATCTGATCTTCATAAGAACTCAGAAGACTTAGTAAATGCTGA
AGAAAAACATGATGAGACACATTCA

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG205292 representing NM_005019
Red=Cloning site Green=Tags(s)

MGSSATEIEELENTTFKYLTGEQTEKMWQRLKGILRCLVKQLERGDVNVVDLKKNIEYAASVLEAVYIDE
TRRLLDTEDELSDIQTDSVPSEVRDWLASTFTRKMGMTKKKPEEKPKFRSIVHAVQAGIFVERMYRKTYH
MVGLAYPAAVIVTLKDVDKWSFDVFALNEASGEHSLKFMIYELFTRYDLINRFKIPVSCLITFAEALEVG
YSKYKNPYHNLIHAADVTQTVHYIMLHTGIMHWLTELEILAMVFAAAIHDYEHTGTTNNFHIQTRSDVAI
LYNDRSVLENHHVSAAYRLMQEEEMNILINLSKDDWRDLRNLVIEMVLSTDMSGHFQQIKNIRNSLQQPE
GIDRAKTMSLILHAADISHPAKSWKLHYRWTMALMEEFFLQGDKEAELGLPFSPLCDRKSTMVAQSQIGF
IDFIVEPTFSLLTDSTEKIVIPLIEEASKAETSSYVASSSTTIVGLHIADALRRSNTKGSMSDGSYSPDY
SLAAVDLKSFKNNLVDIIQQNKERWKELAAQGESDLHKNSEDLVNAEEKHDETHS

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_005019
ORF Size 1635 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_005019.5
RefSeq Size 2414 bp
RefSeq ORF 1638 bp
Locus ID 5136
UniProt ID P54750
Cytogenetics 2q32.1
Domains PDEase
Protein Families Druggable Genome
Protein Pathways Calcium signaling pathway, Progesterone-mediated oocyte maturation, Purine metabolism, Taste transduction
Summary Cyclic nucleotide phosphodiesterases (PDEs) play a role in signal transduction by regulating intracellular cyclic nucleotide concentrations through hydrolysis of cAMP and/or cGMP to their respective nucleoside 5-prime monophosphates. Members of the PDE1 family, such as PDE1A, are Ca(2+)/calmodulin (see CALM1; MIM 114180)-dependent PDEs (CaM-PDEs) that are activated by calmodulin in the presence of Ca(2+) (Michibata et al., 2001 PubMed 11342109; Fidock et al., 2002 PubMed 11747989).supplied by OMIM, Oct 2009
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_005019" in other vectors (6)
SKU Description Size Price
RC205292 PDE1A (Myc-DDK-tagged)-Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1 10 ug
$507.00
RC205292L1 Lenti ORF clone of Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1, Myc-DDK-tagged 10 ug
$807.00
RC205292L2 Lenti ORF clone of Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1, mGFP tagged 10 ug
$807.00
RC205292L3 Lenti ORF clone of Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1, Myc-DDK-tagged 10 ug
$807.00
RC205292L4 Lenti ORF clone of Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1, mGFP tagged 10 ug
$807.00
SC117012 PDE1A (untagged)-Human phosphodiesterase 1A, calmodulin-dependent (PDE1A), transcript variant 1 10 ug
$508.00

Plasmid Map for RG205292

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

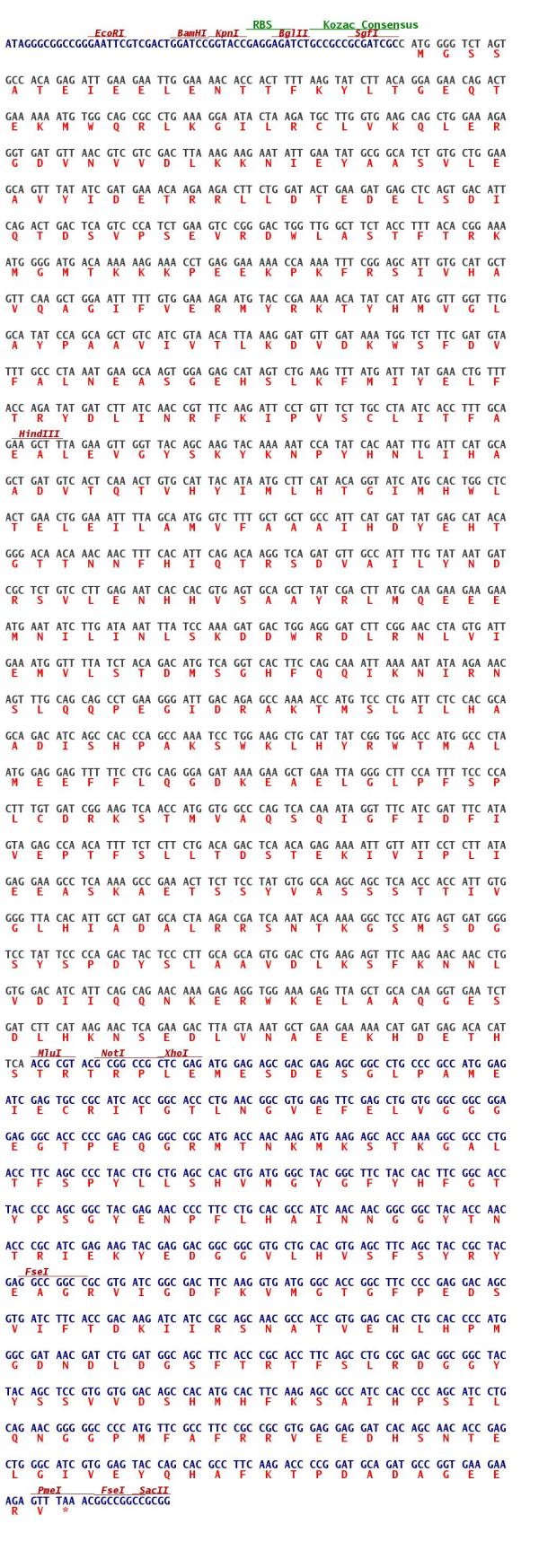

Cloning scheme for RG205292
