ERK1 (MAPK3) (NM_002746) Human Tagged ORF Clone

SKU RG204196

MAPK3 (tGFP-tagged) - Human mitogen-activated protein kinase 3 (MAPK3), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: ERK1
• Synonyms: ERK-1; ERK1; ERT2; HS44KDAP; HUMKER1A; p44-ERK1; p44-MAPK; P44ERK1; P44MAPK; PRKM3
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

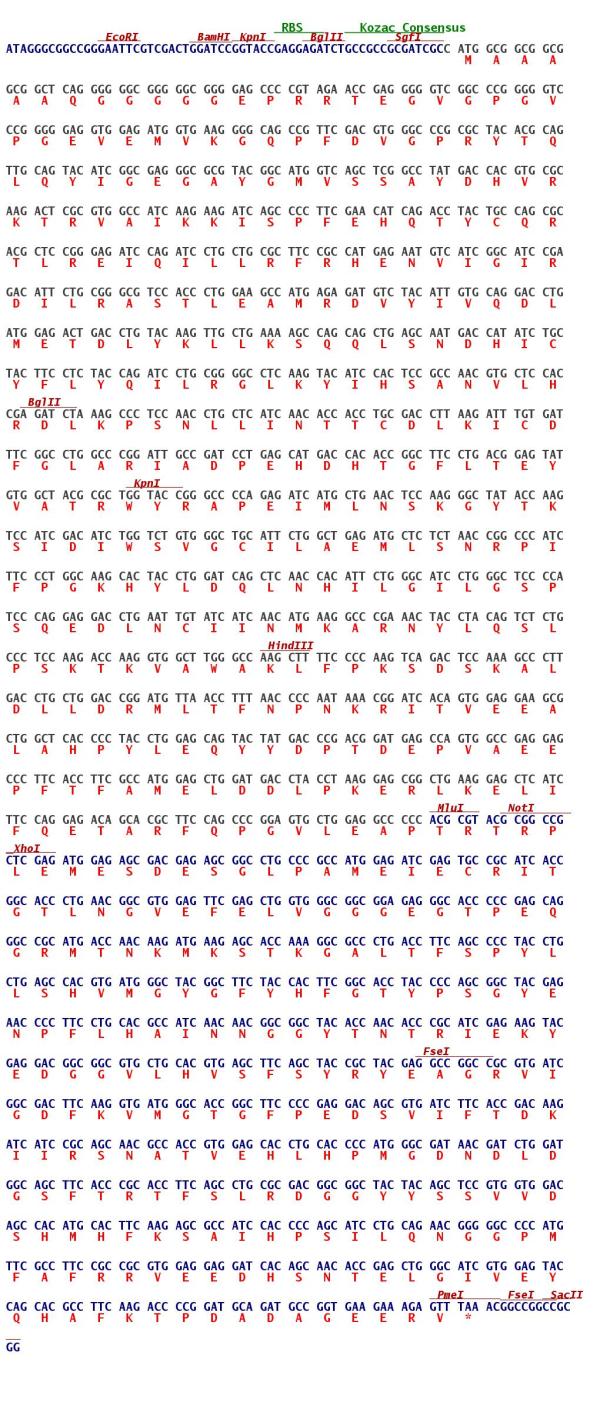

  ORF Nucleotide Sequence

  >RG204196 representing NM_002746; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCGGCGGCGGCTCAGGGGGGCGGGGGCGGGGAGCCCCGTAGAACCGAGGGGGTCGGCCCGGGGG; TCCCGGGGGAGGTGGAGATGGTGAAGGGGCAGCCGTTCGACGTGGGCCCGCGCTACACGCAGTTGCAGTA; CATCGGCGAGGGCGCGTACGGCATGGTCAGCTCGGCCTATGACCACGTGCGCAAGACTCGCGTGGCCATC; AAGAAGATCAGCCCCTTCGAACATCAGACCTACTGCCAGCGCACGCTCCGGGAGATCCAGATCCTGCTGC; GCTTCCGCCATGAGAATGTCATCGGCATCCGAGACATTCTGCGGGCGTCCACCCTGGAAGCCATGAGAGA; TGTCTACATTGTGCAGGACCTGATGGAGACTGACCTGTACAAGTTGCTGAAAAGCCAGCAGCTGAGCAAT; GACCATATCTGCTACTTCCTCTACCAGATCCTGCGGGGCCTCAAGTACATCCACTCCGCCAACGTGCTCC; ACCGAGATCTAAAGCCCTCCAACCTGCTCATCAACACCACCTGCGACCTTAAGATTTGTGATTTCGGCCT; GGCCCGGATTGCCGATCCTGAGCATGACCACACCGGCTTCCTGACGGAGTATGTGGCTACGCGCTGGTAC; CGGGCCCCAGAGATCATGCTGAACTCCAAGGGCTATACCAAGTCCATCGACATCTGGTCTGTGGGCTGCA; TTCTGGCTGAGATGCTCTCTAACCGGCCCATCTTCCCTGGCAAGCACTACCTGGATCAGCTCAACCACAT; TCTGGGCATCCTGGGCTCCCCATCCCAGGAGGACCTGAATTGTATCATCAACATGAAGGCCCGAAACTAC; CTACAGTCTCTGCCCTCCAAGACCAAGGTGGCTTGGGCCAAGCTTTTCCCCAAGTCAGACTCCAAAGCCC; TTGACCTGCTGGACCGGATGTTAACCTTTAACCCCAATAAACGGATCACAGTGGAGGAAGCGCTGGCTCA; CCCCTACCTGGAGCAGTACTATGACCCGACGGATGAGCCAGTGGCCGAGGAGCCCTTCACCTTCGCCATG; GAGCTGGATGACCTACCTAAGGAGCGGCTGAAGGAGCTCATCTTCCAGGAGACAGCACGCTTCCAGCCCG; GAGTGCTGGAGGCCCCC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG204196 representing NM_002746; Red=Cloning site Green=Tags(s); ; MAAAAAQGGGGGEPRRTEGVGPGVPGEVEMVKGQPFDVGPRYTQLQYIGEGAYGMVSSAYDHVRKTRVAI; KKISPFEHQTYCQRTLREIQILLRFRHENVIGIRDILRASTLEAMRDVYIVQDLMETDLYKLLKSQQLSN; DHICYFLYQILRGLKYIHSANVLHRDLKPSNLLINTTCDLKICDFGLARIADPEHDHTGFLTEYVATRWY; RAPEIMLNSKGYTKSIDIWSVGCILAEMLSNRPIFPGKHYLDQLNHILGILGSPSQEDLNCIINMKARNY; LQSLPSKTKVAWAKLFPKSDSKALDLLDRMLTFNPNKRITVEEALAHPYLEQYYDPTDEPVAEEPFTFAM; ELDDLPKERLKELIFQETARFQPGVLEAP; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002746
• ORF Size: 1137 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002746.3
• RefSeq Size: 1866 bp
• RefSeq ORF: 1140 bp
• Locus ID: 5595
• UniProt ID: P27361
• Cytogenetics: 16p11.2
• Protein Families: Druggable Genome, ES Cell Differentiation/IPS, Protein Kinase
• Protein Pathways: Acute myeloid leukemia, Adherens junction, Alzheimer's disease, Axon guidance, B cell receptor signaling pathway, Bladder cancer, Chemokine signaling pathway, Chronic myeloid leukemia, Colorectal cancer, Dorso-ventral axis formation, Endometrial cancer, ErbB signaling pathway, Fc epsilon RI signaling pathway, Fc gamma R-mediated phagocytosis, Focal adhesion, Gap junction, Glioma, GnRH signaling pathway, Insulin signaling pathway, Long-term depression, Long-term potentiation, MAPK signaling pathway, Melanogenesis, Melanoma, mTOR signaling pathway, Natural killer cell mediated cytotoxicity, Neurotrophin signaling pathway, NOD-like receptor signaling pathway, Non-small cell lung cancer, Oocyte meiosis, Pancreatic cancer, Pathways in cancer, Prion diseases, Progesterone-mediated oocyte maturation, Prostate cancer, Regulation of actin cytoskeleton, Renal cell carcinoma, T cell receptor signaling pathway, TGF-beta signaling pathway, Thyroid cancer, Toll-like receptor signaling pathway, Type II diabetes mellitus, Vascular smooth muscle contraction, VEGF signaling pathway
• Summary: The protein encoded by this gene is a member of the MAP kinase family. MAP kinases, also known as extracellular signal-regulated kinases (ERKs), act in a signaling cascade that regulates various cellular processes such as proliferation, differentiation, and cell cycle progression in response to a variety of extracellular signals. This kinase is activated by upstream kinases, resulting in its translocation to the nucleus where it phosphorylates nuclear targets. Alternatively spliced transcript variants encoding different protein isoforms have been described. [provided by RefSeq, Jul 2008]
