PCNA (NM_002592) Human Tagged ORF Clone

SKU RG201741

PCNA (tGFP-tagged) - Human proliferating cell nuclear antigen (PCNA), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PCNA
• Synonyms: ATLD2
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

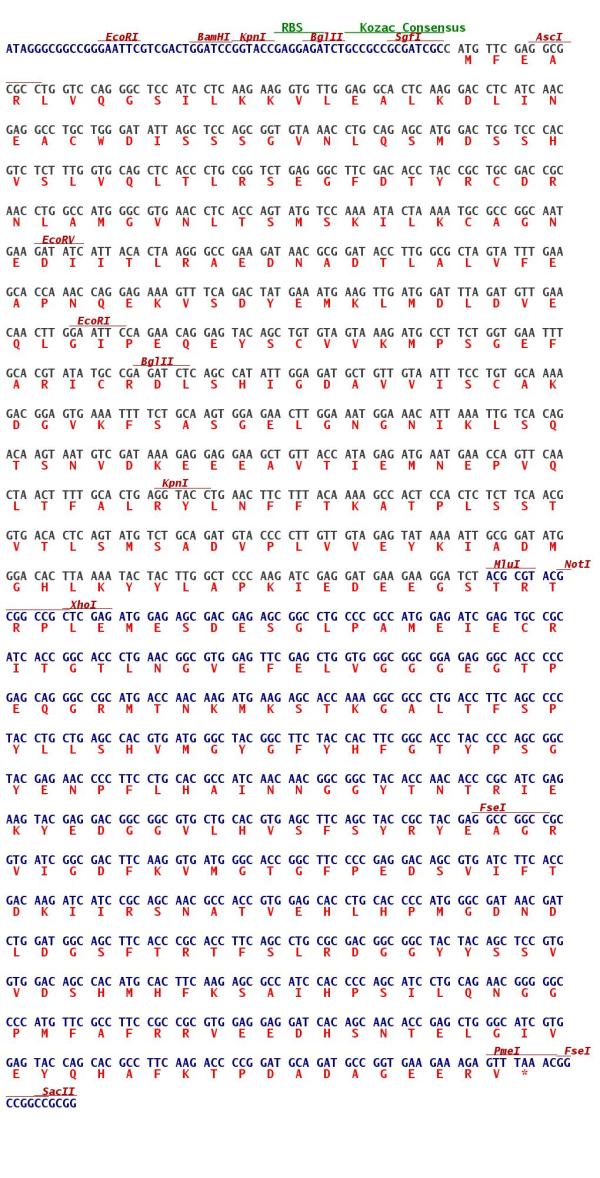

  ORF Nucleotide Sequence

  >RG201741 representing NM_002592; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTTCGAGGCGCGCCTGGTCCAGGGCTCCATCCTCAAGAAGGTGTTGGAGGCACTCAAGGACCTCATCA; ACGAGGCCTGCTGGGATATTAGCTCCAGCGGTGTAAACCTGCAGAGCATGGACTCGTCCCACGTCTCTTT; GGTGCAGCTCACCCTGCGGTCTGAGGGCTTCGACACCTACCGCTGCGACCGCAACCTGGCCATGGGCGTG; AACCTCACCAGTATGTCCAAAATACTAAAATGCGCCGGCAATGAAGATATCATTACACTAAGGGCCGAAG; ATAACGCGGATACCTTGGCGCTAGTATTTGAAGCACCAAACCAGGAGAAAGTTTCAGACTATGAAATGAA; GTTGATGGATTTAGATGTTGAACAACTTGGAATTCCAGAACAGGAGTACAGCTGTGTAGTAAAGATGCCT; TCTGGTGAATTTGCACGTATATGCCGAGATCTCAGCCATATTGGAGATGCTGTTGTAATTTCCTGTGCAA; AAGACGGAGTGAAATTTTCTGCAAGTGGAGAACTTGGAAATGGAAACATTAAATTGTCACAGACAAGTAA; TGTCGATAAAGAGGAGGAAGCTGTTACCATAGAGATGAATGAACCAGTTCAACTAACTTTTGCACTGAGG; TACCTGAACTTCTTTACAAAAGCCACTCCACTCTCTTCAACGGTGACACTCAGTATGTCTGCAGATGTAC; CCCTTGTTGTAGAGTATAAAATTGCGGATATGGGACACTTAAAATACTACTTGGCTCCCAAGATCGAGGA; TGAAGAAGGATCT; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG201741 representing NM_002592; Red=Cloning site Green=Tags(s); ; MFEARLVQGSILKKVLEALKDLINEACWDISSSGVNLQSMDSSHVSLVQLTLRSEGFDTYRCDRNLAMGV; NLTSMSKILKCAGNEDIITLRAEDNADTLALVFEAPNQEKVSDYEMKLMDLDVEQLGIPEQEYSCVVKMP; SGEFARICRDLSHIGDAVVISCAKDGVKFSASGELGNGNIKLSQTSNVDKEEEAVTIEMNEPVQLTFALR; YLNFFTKATPLSSTVTLSMSADVPLVVEYKIADMGHLKYYLAPKIEDEEGS; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002592
• ORF Size: 783 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002592.2, NP_002583.1
• RefSeq Size: 1355 bp
• RefSeq ORF: 786 bp
• Locus ID: 5111
• UniProt ID: P12004
• Cytogenetics: 20p12.3
• Domains: PCNA
• Protein Families: Druggable Genome, Stem cell - Pluripotency
• Protein Pathways: Base excision repair, Cell cycle, DNA replication, Mismatch repair, Nucleotide excision repair
• Summary: The protein encoded by this gene is found in the nucleus and is a cofactor of DNA polymerase delta. The encoded protein acts as a homotrimer and helps increase the processivity of leading strand synthesis during DNA replication. In response to DNA damage, this protein is ubiquitinated and is involved in the RAD6-dependent DNA repair pathway. Two transcript variants encoding the same protein have been found for this gene. Pseudogenes of this gene have been described on chromosome 4 and on the X chromosome. [provided by RefSeq, Jul 2008]
