PDHA1 (NM_001173456) Human Tagged ORF Clone
Specifications
| Product Data | |
| Type | Human Tagged ORF Clone |
|---|---|
| Target Symbol | PDHA1 |
| Synonyms | PDHA; PDHAD; PDHCE1A; PHE1A |
| Vector | pCMV6-Entry |
| E. coli Selection | Kanamycin (25 ug/mL) |
| Mammalian Cell Selection | Neomycin |
| Sequence Data | |
| Chromatograms |
Chromatograms
![]() Sequencher program is needed, download here |
| Restriction Sites |

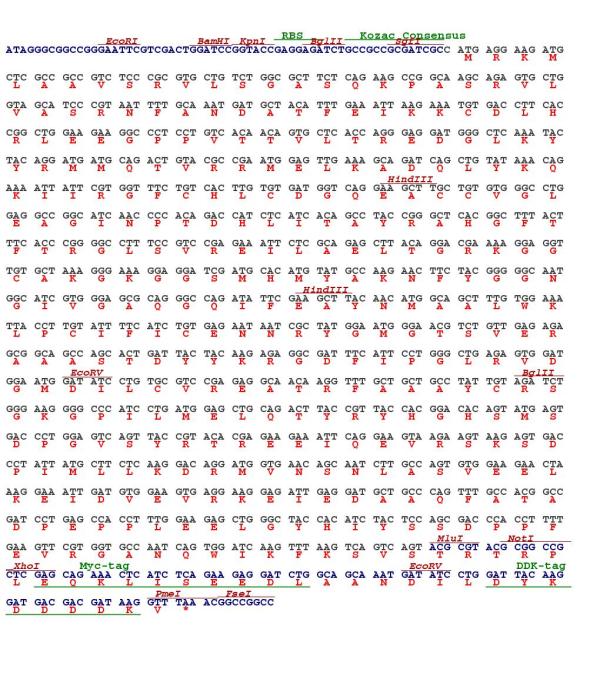

SgfI-MluI Cloning Scheme for this gene
|
Plasmid Map
|
| ACCN | NM_001173456 |
| ORF Size | 1077 bp |
| OTI Disclaimer | The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info |
| OTI Annotation | This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene. |
| Components | The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water). |
| Reconstitution Method | 1. Centrifuge at 5,000xg for 5min. 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA. 3. Close the tube and incubate for 10 minutes at room temperature. 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom. 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C. |
| Note | Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required. |
| Shipping | Ambient |
| Reference Data | |
| RefSeq | NM_001173456.2 |
| RefSeq ORF | 1080 bp |
| Locus ID | 5160 |
| UniProt ID | P08559 |
| Cytogenetics | Xp22.12 |
| Protein Families | Druggable Genome |
| Protein Pathways | Butanoate metabolism, Citrate cycle (TCA cycle), Glycolysis / Gluconeogenesis, leucine and isoleucine biosynthesis, Metabolic pathways, Pyruvate metabolism, Valine |
| MW | 40.6 kDa |
| Summary | The pyruvate dehydrogenase (PDH) complex is a nuclear-encoded mitochondrial multienzyme complex that catalyzes the overall conversion of pyruvate to acetyl-CoA and CO(2), and provides the primary link between glycolysis and the tricarboxylic acid (TCA) cycle. The PDH complex is composed of multiple copies of three enzymatic components: pyruvate dehydrogenase (E1), dihydrolipoamide acetyltransferase (E2) and lipoamide dehydrogenase (E3). The E1 enzyme is a heterotetramer of two alpha and two beta subunits. This gene encodes the E1 alpha 1 subunit containing the E1 active site, and plays a key role in the function of the PDH complex. Mutations in this gene are associated with pyruvate dehydrogenase E1-alpha deficiency and X-linked Leigh syndrome. Alternatively spliced transcript variants encoding different isoforms have been found for this gene.provided by RefSeq, Mar 2010 |
Reviews
Documents
| Product Manuals |
| FAQs |
| SDS |
Resources
"NM_001173456" in other vectors (4)
| SKU | Description | Size | Price | |
|---|---|---|---|---|
| RC229934L3 | Lenti ORF clone of Human pyruvate dehydrogenase (lipoamide) alpha 1 (PDHA1), nuclear gene encoding mitochondrial protein, transcript variant 4, Myc-DDK-tagged | 10 ug |
$757.00
|
|
| RC229934L4 | Lenti ORF clone of Human pyruvate dehydrogenase (lipoamide) alpha 1 (PDHA1), nuclear gene encoding mitochondrial protein, transcript variant 4, mGFP tagged | 10 ug |
$757.00
|
|
| RG229934 | PDHA1 (tGFP-tagged) - Human pyruvate dehydrogenase (lipoamide) alpha 1 (PDHA1), nuclear gene encoding mitochondrial protein, transcript variant 4 | 10 ug |
$657.00
|
|
| SC328572 | PDHA1 (untagged)-Human pyruvate dehydrogenase (lipoamide) alpha 1 (PDHA1) nuclear gene encoding mitochondrial protein transcript variant 4 | 10 ug |
$503.00
|
|
