E2F5 (NM_001083588) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC221587
E2F5 (Myc-DDK-tagged)-Human E2F transcription factor 5, p130-binding (E2F5), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $457.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA810672 E2F5 mouse monoclonal antibody,clone OTI1G9 100 ul
$447.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "E2F5 or NM_001083588"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol E2F5
Synonyms E2F-5
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC221587 representing NM_001083588
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCGGCGGCAGAGCCCGCGAGCTCGGGCCAGCAGGCGCCGGCAGGGCAGGGGCAGGGCCAGCGGCCGC
CGCCGCAGCCTCCGCAGGCGCAAGCCCCGCAGCCGCCCCCGCCGCCGCAGCTCGGGGGCGCCGGGGGCGG
CAGCAGCAGGCACGAGAAGAGCCTGGGGCTGCTCACTACCAAGTTCGTGTCGCTGCTGCAGGAGGCCAAG
GACGGCGTTCTGGATCTCAAAGCGGCTGCTGATACTTTGGCTGTGAGGCAAAAAAGGAGAATTTATGATA
TCACCAATGTCTTAGAGGGAATTGACTTGATTGAAAAAAAGTCAAAAAACAGTATCCAGTGGAAAGGTGT
AGGTGCTGGCTGTAATACTAAAGAAGTCATAGATAGATTAAGATATCTTAAAGCTGAAATTGAAGATCTA
GAACTGAAGGAAAGAGAACTTGATCAGCAGAAGTTGTGGCTACAGCAAAGCATCAAAAATGTGATGGACG
ATTCCATTAATAATAGATTTTCCTATGTAACTCATGAAGACATCTGTAATTGCTTTAATGGTGATACACT
TTTGGCCATTCAGGCACCTTCTGGTACACAACTGGAGGTACCCATTCCAGAAATGGGTCAGAATGGACAA
AAGAAATACCAGATCAATCTAAAGAGTCATTCAGGACCTATCCATGTGCTGCTTATAAATAAAGAGTCGA
GTTCATCTAAGCCCGTGGTTTTTCCTGTTCCCCCACCTGATGACCTCACACAGCCTTCCTCCCAGTCCTT
GACTCCAGTGACTCCACAGAAATCCAGCATGGCAACTCAAAATCTGCCTGAGCAACATGTCTCTGAAAGA
AGCCAGGCTCTGCAGCAGACATCAGCTACAGATATATCTTCAGGATCTATTAGTGGAGATATCATTGATG
AGTTAATGTCTTCTGACGTGTTTCCTCTCTTAAGGCTTTCTCCTACCCCGGCAGATGACTACAACTTTAA
TTTAGATGATAACGAAGGAGTTTGTGATCTGTTTGATGTCCAGATACTAAATTAT

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC221587 representing NM_001083588
Red=Cloning site Green=Tags(s)

MAAAEPASSGQQAPAGQGQGQRPPPQPPQAQAPQPPPPPQLGGAGGGSSRHEKSLGLLTTKFVSLLQEAK
DGVLDLKAAADTLAVRQKRRIYDITNVLEGIDLIEKKSKNSIQWKGVGAGCNTKEVIDRLRYLKAEIEDL
ELKERELDQQKLWLQQSIKNVMDDSINNRFSYVTHEDICNCFNGDTLLAIQAPSGTQLEVPIPEMGQNGQ
KKYQINLKSHSGPIHVLLINKESSSSKPVVFPVPPPDDLTQPSSQSLTPVTPQKSSMATQNLPEQHVSER
SQALQQTSATDISSGSISGDIIDELMSSDVFPLLRLSPTPADDYNFNLDDNEGVCDLFDVQILNY

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001083588
ORF Size 1035 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001083588.2
RefSeq Size 1740 bp
RefSeq ORF 1038 bp
Locus ID 1875
UniProt ID Q15329
Cytogenetics 8q21.2
Protein Families Druggable Genome, Transcription Factors
Protein Pathways Cell cycle, TGF-beta signaling pathway
MW 37.4 kDa
Summary The protein encoded by this gene is a member of the E2F family of transcription factors. The E2F family plays a crucial role in the control of cell cycle and action of tumor suppressor proteins and is also a target of the transforming proteins of small DNA tumor viruses. The E2F proteins contain several evolutionarily conserved domains that are present in most members of the family. These domains include a DNA binding domain, a dimerization domain which determines interaction with the differentiation regulated transcription factor proteins (DP), a transactivation domain enriched in acidic amino acids, and a tumor suppressor protein association domain which is embedded within the transactivation domain. This protein is differentially phosphorylated and is expressed in a wide variety of human tissues. It has higher identity to E2F4 than to other family members. Both this protein and E2F4 interact with tumor suppressor proteins p130 and p107, but not with pRB. Alternative splicing results in multiple variants encoding different isoforms. provided by RefSeq, Jul 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001083588" in other vectors (4)
SKU Description Size Price
RC221587L3 Lenti ORF clone of Human E2F transcription factor 5, p130-binding (E2F5), transcript variant 2, Myc-DDK-tagged 10 ug
$757.00
RC221587L4 Lenti ORF clone of Human E2F transcription factor 5, p130-binding (E2F5), transcript variant 2, mGFP tagged 10 ug
$757.00
RG221587 E2F5 (tGFP-tagged) - Human E2F transcription factor 5, p130-binding (E2F5), transcript variant 2 10 ug
$657.00
SC316052 E2F5 (untagged)-Human E2F transcription factor 5, p130-binding (E2F5), transcript variant 2 10 ug
$503.00

Plasmid Map for RC221587

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

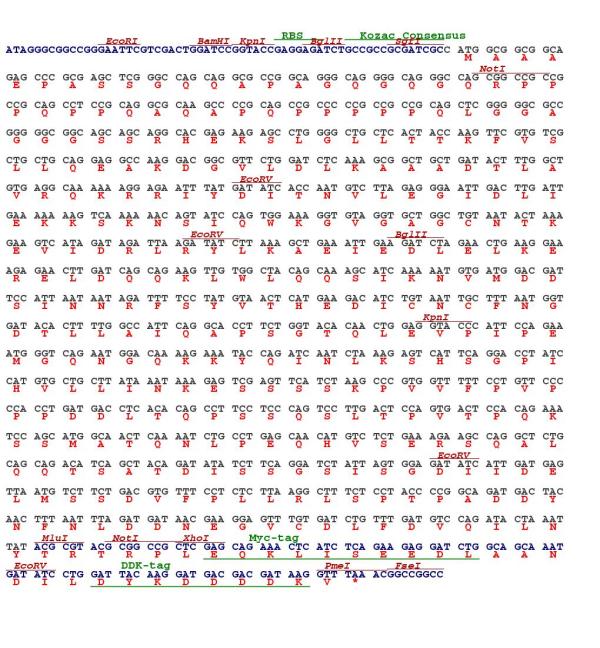

Cloning scheme for RC221587
Circular map for RC221587
