NR2E3 (NM_016346) Human Tagged ORF Clone

SKU RC220677

NR2E3 (Myc-DDK-tagged)-Human nuclear receptor subfamily 2, group E, member 3 (NR2E3), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: NR2E3
• Synonyms: ESCS; PNR; rd7; RNR; RP37
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

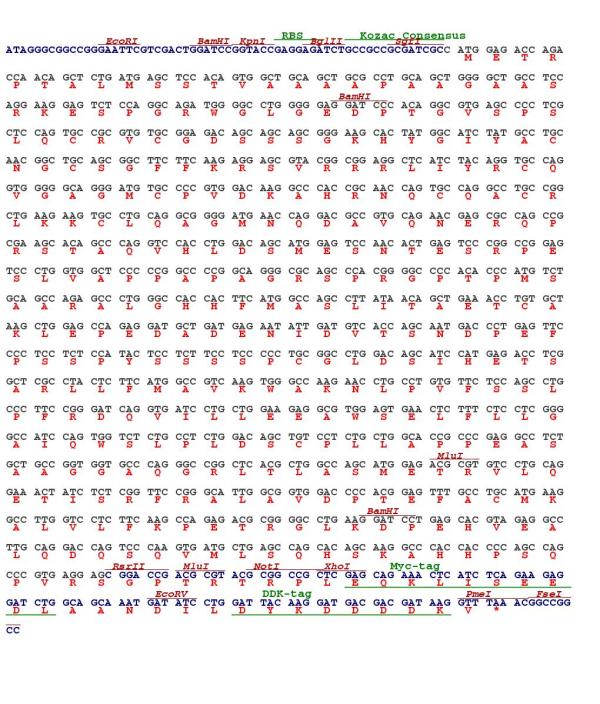

  ORF Nucleotide Sequence

  >RC220677 representing NM_016346; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAGACCAGACCAACAGCTCTGATGAGCTCCACAGTGGCTGCAGCTGCGCCTGCAGCTGGGGCTGCCT; CCAGGAAGGAGTCTCCAGGCAGATGGGGCCTGGGGGAGGATCCCACAGGCGTGAGCCCCTCGCTCCAGTG; CCGCGTGTGCGGAGACAGCAGCAGCGGGAAGCACTATGGCATCTATGCCTGCAACGGCTGCAGCGGCTTC; TTCAAGAGGAGCGTACGGCGGAGGCTCATCTACAGGTGCCAGGTGGGGGCAGGGATGTGCCCCGTGGACA; AGGCCCACCGCAACCAGTGCCAGGCCTGCCGGCTGAAGAAGTGCCTGCAGGCGGGGATGAACCAGGACGC; CGTGCAGAACGAGCGCCAGCCGCGAAGCACAGCCCAGGTCCACCTGGACAGCATGGAGTCCAACACTGAG; TCCCGGCCGGAGTCCCTGGTGGCTCCCCCGGCCCCGGCAGGGCGCAGCCCACGGGGCCCCACACCCATGT; CTGCAGCCAGAGCCCTGGGCCACCACTTCATGGCCAGCCTTATAACAGCTGAAACCTGTGCTAAGCTGGA; GCCAGAGGATGCTGATGAGAATATTGATGTCACCAGCAATGACCCTGAGTTCCCCTCCTCTCCATACTCC; TCTTCCTCCCCCTGCGGCCTGGACAGCATCCATGAGACCTCGGCTCGCCTACTCTTCATGGCCGTCAAGT; GGGCCAAGAACCTGCCTGTGTTCTCCAGCCTGCCCTTCCGGGATCAGGTGATCCTGCTGGAAGAGGCGTG; GAGTGAACTCTTTCTCCTCGGGGCCATCCAGTGGTCTCTGCCTCTGGACAGCTGTCCTCTGCTGGCACCG; CCCGAGGCCTCTGCTGCCGGTGGTGCCCAGGGCCGGCTCACGCTGGCCAGCATGGAGACGCGTGTCCTGC; AGGAAACTATCTCTCGGTTCCGGGCATTGGCGGTGGACCCCACGGAGTTTGCCTGCATGAAGGCCTTGGT; CCTCTTCAAGCCAGAGACGCGGGGCCTGAAGGATCCTGAGCACGTAGAGGCCTTGCAGGACCAGTCCCAA; GTGATGCTGAGCCAGCACAGCAAGGCCCACCACCCCAGCCAGCCCGTGAGG; ; AGCGGACCGACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCC; TGGATTACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220677 representing NM_016346; Red=Cloning site Green=Tags(s); ; METRPTALMSSTVAAAAPAAGAASRKESPGRWGLGEDPTGVSPSLQCRVCGDSSSGKHYGIYACNGCSGF; FKRSVRRRLIYRCQVGAGMCPVDKAHRNQCQACRLKKCLQAGMNQDAVQNERQPRSTAQVHLDSMESNTE; SRPESLVAPPAPAGRSPRGPTPMSAARALGHHFMASLITAETCAKLEPEDADENIDVTSNDPEFPSSPYS; SSSPCGLDSIHETSARLLFMAVKWAKNLPVFSSLPFRDQVILLEEAWSELFLLGAIQWSLPLDSCPLLAP; PEASAAGGAQGRLTLASMETRVLQETISRFRALAVDPTEFACMKALVLFKPETRGLKDPEHVEALQDQSQ; VMLSQHSKAHHPSQPVR; ; SGPTRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-RsrII Cloning Scheme for this gene Plasmid Map
• ACCN: NM_016346
• ORF Size: 1101 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_016346.4
• RefSeq Size: 2108 bp
• RefSeq ORF: 1104 bp
• Locus ID: 10002
• UniProt ID: Q9Y5X4
• Cytogenetics: 15q23
• Protein Families: Druggable Genome, Nuclear Hormone Receptor, Transcription Factors
• MW: 39.6 kDa
• Summary: This protein is part of a large family of nuclear receptor transcription factors involved in signaling pathways. Nuclear receptors have been shown to regulate pathways involved in embryonic development, as well as in maintenance of proper cell function in adults. Members of this family are characterized by discrete domains that function in DNA and ligand binding. This gene encodes a retinal nuclear receptor that is a ligand-dependent transcription factor. Defects in this gene are a cause of enhanced S cone syndrome. Alternatively spliced transcript variants encoding different isoforms have been identified. [provided by RefSeq, Jul 2008]
