DNA Ligase IV (LIG4) (NM_206937) Human Tagged ORF Clone

SKU RC220071

LIG4 (Myc-DDK-tagged)-Human ligase IV, DNA, ATP-dependent (LIG4), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: DNA Ligase IV
• Synonyms: LIG4S
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

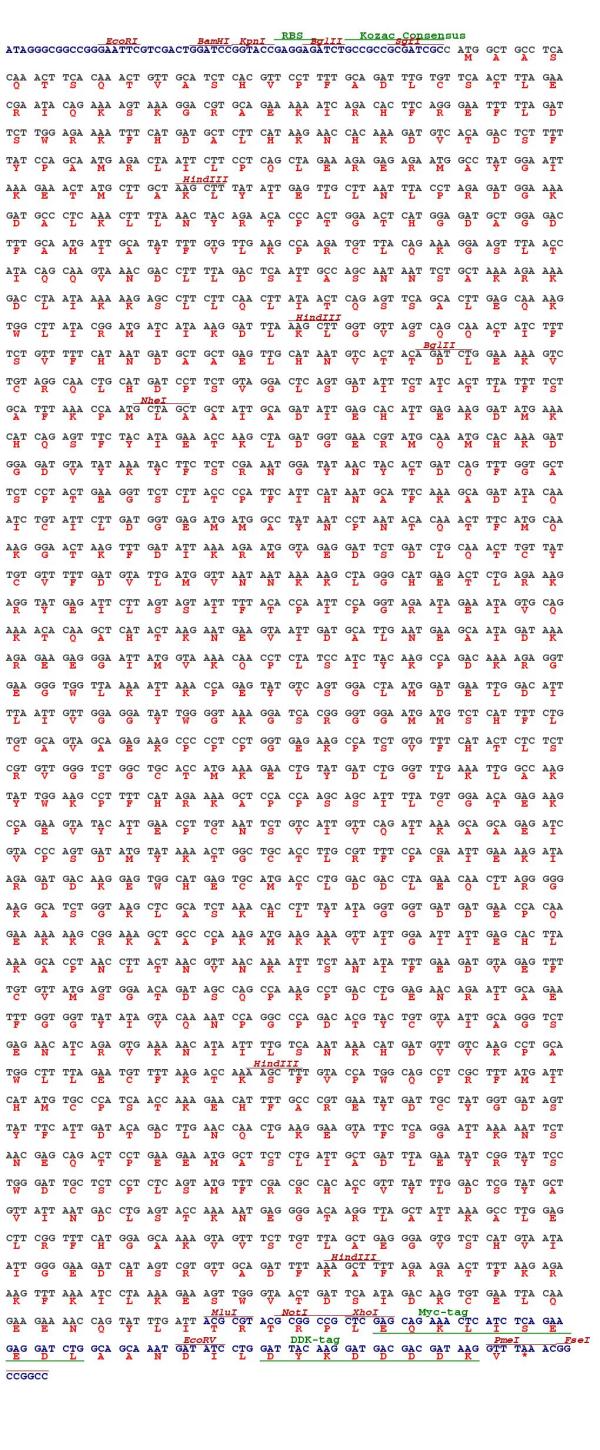

  ORF Nucleotide Sequence

  >RC220071 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTGCCTCACAAACTTCACAAACTGTTGCATCTCACGTTCCTTTTGCAGATTTGTGTTCAACTTTAG; AACGAATACAGAAAAGTAAAGGACGTGCAGAAAAAATCAGACACTTCAGGGAATTTTTAGATTCTTGGAG; AAAATTTCATGATGCTCTTCATAAGAACCACAAAGATGTCACAGACTCTTTTTATCCAGCAATGAGACTA; ATTCTTCCTCAGCTAGAAAGAGAGAGAATGGCCTATGGAATTAAAGAAACTATGCTTGCTAAGCTTTATA; TTGAGTTGCTTAATTTACCTAGAGATGGAAAAGATGCCCTCAAACTTTTAAACTACAGAACACCCACTGG; AACTCATGGAGATGCTGGAGACTTTGCAATGATTGCATATTTTGTGTTGAAGCCAAGATGTTTACAGAAA; GGAAGTTTAACCATACAGCAAGTAAACGACCTTTTAGACTCAATTGCCAGCAATAATTCTGCTAAAAGAA; AAGACCTAATAAAAAAGAGCCTTCTTCAACTTATAACTCAGAGTTCAGCACTTGAGCAAAAGTGGCTTAT; ACGGATGATCATAAAGGATTTAAAGCTTGGTGTTAGTCAGCAAACTATCTTTTCTGTTTTTCATAATGAT; GCTGCTGAGTTGCATAATGTCACTACAGATCTGGAAAAAGTCTGTAGGCAACTGCATGATCCTTCTGTAG; GACTCAGTGATATTTCTATCACTTTATTTTCTGCATTTAAACCAATGCTAGCTGCTATTGCAGATATTGA; GCACATTGAGAAGGATATGAAACATCAGAGTTTCTACATAGAAACCAAGCTAGATGGTGAACGTATGCAA; ATGCACAAAGATGGAGATGTATATAAATACTTCTCTCGAAATGGATATAACTACACTGATCAGTTTGGTG; CTTCTCCTACTGAAGGTTCTCTTACCCCATTCATTCATAATGCATTCAAAGCAGATATACAAATCTGTAT; TCTTGATGGTGAGATGATGGCCTATAATCCTAATACACAAACTTTCATGCAAAAGGGAACTAAGTTTGAT; ATTAAAAGAATGGTAGAGGATTCTGATCTGCAAACTTGTTATTGTGTTTTTGATGTATTGATGGTTAATA; ATAAAAAGCTAGGGCATGAGACTCTGAGAAAGAGGTATGAGATTCTTAGTAGTATTTTTACACCAATTCC; AGGTAGAATAGAAATAGTGCAGAAAACACAAGCTCATACTAAGAATGAAGTAATTGATGCATTGAATGAA; GCAATAGATAAAAGAGAAGAGGGAATTATGGTAAAACAACCTCTATCCATCTACAAGCCAGACAAAAGAG; GTGAAGGGTGGTTAAAAATTAAACCAGAGTATGTCAGTGGACTAATGGATGAATTGGACATTTTAATTGT; TGGAGGATATTGGGGTAAAGGATCACGGGGTGGAATGATGTCTCATTTTCTGTGTGCAGTAGCAGAGAAG; CCCCCTCCTGGTGAGAAGCCATCTGTGTTTCATACTCTCTCTCGTGTTGGGTCTGGCTGCACCATGAAAG; AACTGTATGATCTGGGTTTGAAATTGGCCAAGTATTGGAAGCCTTTTCATAGAAAAGCTCCACCAAGCAG; CATTTTATGTGGAACAGAGAAGCCAGAAGTATACATTGAACCTTGTAATTCTGTCATTGTTCAGATTAAA; GCAGCAGAGATCGTACCCAGTGATATGTATAAAACTGGCTGCACCTTGCGTTTTCCACGAATTGAAAAGA; TAAGAGATGACAAGGAGTGGCATGAGTGCATGACCCTGGACGACCTAGAACAACTTAGGGGGAAGGCATC; TGGTAAGCTCGCATCTAAACACCTTTATATAGGTGGTGATGATGAACCACAAGAAAAAAAGCGGAAAGCT; GCCCCAAAGATGAAGAAAGTTATTGGAATTATTGAGCACTTAAAAGCACCTAACCTTACTAACGTTAACA; AAATTTCTAATATATTTGAAGATGTAGAGTTTTGTGTTATGAGTGGAACAGATAGCCAGCCAAAGCCTGA; CCTGGAGAACAGAATTGCAGAATTTGGTGGTTATATAGTACAAAATCCAGGCCCAGACACGTACTGTGTA; ATTGCAGGGTCTGAGAACATCAGAGTGAAAAACATAATTTTGTCAAATAAACATGATGTTGTCAAGCCTG; CATGGCTTTTAGAATGTTTTAAGACCAAAAGCTTTGTACCATGGCAGCCTCGCTTTATGATTCATATGTG; CCCATCAACCAAAGAACATTTTGCCCGTGAATATGATTGCTATGGTGATAGTTATTTCATTGATACAGAC; TTGAACCAACTGAAGGAAGTATTCTCAGGAATTAAAAATTCTAACGAGCAGACTCCTGAAGAAATGGCTT; CTCTGATTGCTGATTTAGAATATCGGTATTCCTGGGATTGCTCTCCTCTCAGTATGTTTCGACGCCACAC; CGTTTATTTGGACTCGTATGCTGTTATTAATGACCTGAGTACCAAAAATGAGGGGACAAGGTTAGCTATT; AAAGCCTTGGAGCTTCGGTTTCATGGAGCAAAAGTAGTTTCTTGTTTAGCTGAGGGAGTGTCTCATGTAA; TAATTGGGGAAGATCATAGTCGTGTTGCAGATTTTAAAGCTTTTAGAAGAACTTTTAAGAGAAAGTTTAA; AATCCTAAAAGAAAGTTGGGTAACTGATTCAATAGACAAGTGTGAATTACAAGAAGAAAACCAGTATTTG; ATT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220071 protein sequence; Red=Cloning site Green=Tags(s); ; MAASQTSQTVASHVPFADLCSTLERIQKSKGRAEKIRHFREFLDSWRKFHDALHKNHKDVTDSFYPAMRL; ILPQLERERMAYGIKETMLAKLYIELLNLPRDGKDALKLLNYRTPTGTHGDAGDFAMIAYFVLKPRCLQK; GSLTIQQVNDLLDSIASNNSAKRKDLIKKSLLQLITQSSALEQKWLIRMIIKDLKLGVSQQTIFSVFHND; AAELHNVTTDLEKVCRQLHDPSVGLSDISITLFSAFKPMLAAIADIEHIEKDMKHQSFYIETKLDGERMQ; MHKDGDVYKYFSRNGYNYTDQFGASPTEGSLTPFIHNAFKADIQICILDGEMMAYNPNTQTFMQKGTKFD; IKRMVEDSDLQTCYCVFDVLMVNNKKLGHETLRKRYEILSSIFTPIPGRIEIVQKTQAHTKNEVIDALNE; AIDKREEGIMVKQPLSIYKPDKRGEGWLKIKPEYVSGLMDELDILIVGGYWGKGSRGGMMSHFLCAVAEK; PPPGEKPSVFHTLSRVGSGCTMKELYDLGLKLAKYWKPFHRKAPPSSILCGTEKPEVYIEPCNSVIVQIK; AAEIVPSDMYKTGCTLRFPRIEKIRDDKEWHECMTLDDLEQLRGKASGKLASKHLYIGGDDEPQEKKRKA; APKMKKVIGIIEHLKAPNLTNVNKISNIFEDVEFCVMSGTDSQPKPDLENRIAEFGGYIVQNPGPDTYCV; IAGSENIRVKNIILSNKHDVVKPAWLLECFKTKSFVPWQPRFMIHMCPSTKEHFAREYDCYGDSYFIDTD; LNQLKEVFSGIKNSNEQTPEEMASLIADLEYRYSWDCSPLSMFRRHTVYLDSYAVINDLSTKNEGTRLAI; KALELRFHGAKVVSCLAEGVSHVIIGEDHSRVADFKAFRRTFKRKFKILKESWVTDSIDKCELQEENQYL; I; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

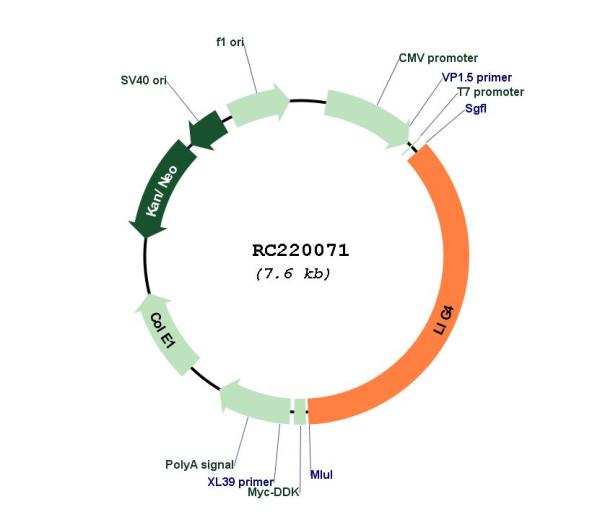

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_206937
• ORF Size: 2733 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_206937.2
• RefSeq Size: 3994 bp
• RefSeq ORF: 2736 bp
• Locus ID: 3981
• UniProt ID: P49917
• Cytogenetics: 13q33.3
• Protein Families: Druggable Genome
• Protein Pathways: Non-homologous end-joining
• MW: 104 kDa
• Summary: The protein encoded by this gene is a DNA ligase that joins single-strand breaks in a double-stranded polydeoxynucleotide in an ATP-dependent reaction. This protein is essential for V(D)J recombination and DNA double-strand break (DSB) repair through nonhomologous end joining (NHEJ). This protein forms a complex with the X-ray repair cross complementing protein 4 (XRCC4), and further interacts with the DNA-dependent protein kinase (DNA-PK). Both XRCC4 and DNA-PK are known to be required for NHEJ. The crystal structure of the complex formed by this protein and XRCC4 has been resolved. Defects in this gene are the cause of LIG4 syndrome. Alternatively spliced transcript variants encoding the same protein have been observed. [provided by RefSeq, Jul 2008]
