TRPC5 (NM_012471) Human Tagged ORF Clone

  • Product Brand Image
SKU
RC213238
TRPC5 (Myc-DDK-tagged)-Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5)
  $891.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol TRPC5
Synonyms PPP1R159; TRP5
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC213238 representing NM_012471
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCCCAACTGTACTACAAAAAGGTCAACTACTCACCGTACAGAGACCGCATCCCCCTGCAAATTGTGA
GGGCTGAGACAGAGCTCTCTGCAGAGGAGAAGGCCTTCCTCAATGCTGTGGAGAAGGGGGACTATGCCAC
TGTGAAGCAGGCCCTTCAGGAGGCTGAGATCTACTATAATGTTAACATCAACTGCATGGACCCCTTGGGC
CGGAGTGCCCTGCTCATTGCCATTGAGAACGAGAACCTGGAGATCATGGAGCTACTGCTGAACCACAGCG
TGTATGTGGGTGATGCATTGCTCTATGCCATACGCAAGGAAGTGGTGGGCGCTGTGGAGCTTCTGCTCAG
CTACAGGCGGCCCAGCGGAGAGAAGCAGGTCCCCACTCTGATGATGGACACGCAGTTCTCTGAATTCACA
CCGGACATCACTCCCATCATGCTGGCTGCCCACACCAACAACTACGAAATCATCAAATTGCTTGTCCAAA
AACGGGTCACTATCCCACGGCCCCACCAGATCCGCTGCAACTGTGTGGAGTGTGTGTCTAGTTCAGAGGT
AGACAGCCTGCGCCACTCTCGCTCCCGACTGAACATCTATAAGGCTCTGGCAAGCCCCTCACTCATTGCC
TTATCAAGTGAGGACCCCATCCTAACTGCCTTCCGTCTGGGCTGGGAGCTCAAGGAGCTCAGCAAGGTGG
AGAATGAGTTCAAGGCCGAGTATGAGGAGCTCTCTCAGCAGTGCAAGCTCTTTGCCAAAGACCTGCTGGA
CCAAGCTCGGAGCTCCAGGGAACTGGAGATCATCCTCAACCATCGAGATGACCACAGTGAAGAGCTTGAC
CCTCAGAAGTACCATGACCTGGCCAAGTTGAAGGTGGCAATCAAATACCACCAGAAAGAGTTTGTTGCTC
AGCCCAACTGCCAACAGTTGCTTGCCACCCTGTGGTATGATGGCTTCCCTGGATGGCGGCGGAAACACTG
GGTAGTCAAGCTTCTAACCTGCATGACCATTGGGTTCCTGTTTCCCATGCTGTCTATAGCCTACCTGATC
TCACCCAGGAGCAACCTTGGGCTGTTCATCAAGAAACCCTTTATCAAGTTTATCTGCCACACAGCATCCT
ATTTGACCTTCCTCTTTATGCTTCTCCTGGCTTCTCAGCACATTGTCAGGACAGACCTTCATGTACAGGG
GCCTCCCCCAACTGTCGTGGAATGGATGATATTGCCTTGGGTTCTAGGTTTCATTTGGGGTGAGATTAAG
GAAATGTGGGATGGTGGATTTACTGAATACATCCATGACTGGTGGAACCTGATGGATTTTGCAATGAACT
CCCTCTACCTGGCAACTATTTCCCTGAAGATTGTGGCCTATGTCAAGTATAATGGTTCTCGTCCAAGGGA
GGAATGGGAAATGTGGCACCCGACTCTGATTGCGGAAGCACTCTTCGCAATATCCAACATTTTAAGTTCG
TTGCGTCTCATATCCCTGTTCACAGCCAACTCCCACTTAGGACCTCTGCAGATCTCTTTGGGACGCATGC
TGCTTGATATCCTCAAATTCCTCTTTATCTACTGCCTGGTACTACTAGCTTTTGCCAATGGACTGAACCA
GCTTTACTTCTATTATGAAACCAGAGCTATCGATGAGCCTAACAACTGCAAGGGGATCCGATGTGAGAAA
CAGAACAATGCCTTCTCCACGCTCTTTGAGACTCTTCAGTCACTCTTCTGGTCTGTATTTGGCCTTTTAA
ATCTATATGTCACCAATGTGAAAGCCAGACACGAATTCACCGAGTTTGTAGGAGCTACCATGTTTGGAAC
ATACAATGTCATCTCCCTGGTAGTGCTGCTGAACATGCTGATTGCTATGATGAACAACTCCTATCAGCTT
ATTGCCGATCATGCTGATATCGAGTGGAAGTTTGCAAGGACGAAGCTCTGGATGAGTTACTTTGATGAAG
GTGGCACCTTGCCACCTCCTTTCAACATCATCCCCAGCCCCAAGTCATTTCTATACCTTGGTAACTGGTT
CAACAACACCTTCTGCCCCAAAAGAGACCCTGACGGTAGACGGAGAAGGCGCAACTTGAGAAGTTTCACA
GAACGCAATGCTGACAGCCTGATACAAAATCAACATTATCAGGAAGTTATCAGGAATTTAGTCAAAAGAT
ATGTGGCTGCTATGATAAGAAATTCCAAAACACATGAGGGACTTACAGAAGAAAATTTTAAGGAATTAAA
GCAAGACATCTCCAGCTTTCGGTATGAAGTGCTTGACCTCTTGGGAAATAGAAAACATCCAAGGAGCTTT
TCCACTAGCAGCACTGAACTGTCTCAGAGAGACGATAATAATGATGGCAGTGGTGGGGCTCGGGCCAAAT
CCAAGAGTGTCTCTTTTAATTTAGGCTGCAAGAAAAAGACTTGCCATGGGCCACCTCTCATCAGAACCAT
GCCAAGGTCCAGTGGTGCCCAAGGAAAGTCAAAAGCTGAGTCATCAAGCAAACGCTCCTTCATGGGTCCT
TCTCTCAAGAAACTGGGTCTCCTATTCTCCAAATTTAATGGTCATATGTCTGAACCCAGTTCAGAGCCAA
TGTACACAATTTCTGATGGAATTGTTCAGCAGCACTGTATGTGGCAGGACATCAGATATTCTCAGATGGA
GAAAGGGAAAGCAGAGGCCTGTTCTCAAAGTGAAATTAACCTCAGTGAGGTAGAATTAGGTGAAGTCCAG
GGCGCTGCTCAGAGCAGTGAATGCCCTCTAGCCTGTTCCAGCTCTCTTCACTGTGCATCCAGCATCTGCT
CCTCAAATTCTAAACTTTTAGACTCCTCAGAGGATGTATTTGAAACTTGGGGAGAGGCTTGTGACTTGCT
CATGCACAAATGGGGTGATGGACAGGAAGAACAAGTTACAACTCGCCTC


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC213238 representing NM_012471
Red=Cloning site Green=Tags(s)

MAQLYYKKVNYSPYRDRIPLQIVRAETELSAEEKAFLNAVEKGDYATVKQALQEAEIYYNVNINCMDPLG
RSALLIAIENENLEIMELLLNHSVYVGDALLYAIRKEVVGAVELLLSYRRPSGEKQVPTLMMDTQFSEFT
PDITPIMLAAHTNNYEIIKLLVQKRVTIPRPHQIRCNCVECVSSSEVDSLRHSRSRLNIYKALASPSLIA
LSSEDPILTAFRLGWELKELSKVENEFKAEYEELSQQCKLFAKDLLDQARSSRELEIILNHRDDHSEELD
PQKYHDLAKLKVAIKYHQKEFVAQPNCQQLLATLWYDGFPGWRRKHWVVKLLTCMTIGFLFPMLSIAYLI
SPRSNLGLFIKKPFIKFICHTASYLTFLFMLLLASQHIVRTDLHVQGPPPTVVEWMILPWVLGFIWGEIK
EMWDGGFTEYIHDWWNLMDFAMNSLYLATISLKIVAYVKYNGSRPREEWEMWHPTLIAEALFAISNILSS
LRLISLFTANSHLGPLQISLGRMLLDILKFLFIYCLVLLAFANGLNQLYFYYETRAIDEPNNCKGIRCEK
QNNAFSTLFETLQSLFWSVFGLLNLYVTNVKARHEFTEFVGATMFGTYNVISLVVLLNMLIAMMNNSYQL
IADHADIEWKFARTKLWMSYFDEGGTLPPPFNIIPSPKSFLYLGNWFNNTFCPKRDPDGRRRRRNLRSFT
ERNADSLIQNQHYQEVIRNLVKRYVAAMIRNSKTHEGLTEENFKELKQDISSFRYEVLDLLGNRKHPRSF
STSSTELSQRDDNNDGSGGARAKSKSVSFNLGCKKKTCHGPPLIRTMPRSSGAQGKSKAESSSKRSFMGP
SLKKLGLLFSKFNGHMSEPSSEPMYTISDGIVQQHCMWQDIRYSQMEKGKAEACSQSEINLSEVELGEVQ
GAAQSSECPLACSSSLHCASSICSSNSKLLDSSEDVFETWGEACDLLMHKWGDGQEEQVTTRL

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_012471
ORF Size 2919 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_012471.2
RefSeq Size 5839 bp
RefSeq ORF 2922 bp
Locus ID 7224
UniProt ID Q9UL62
Cytogenetics Xq23
Domains ANK, ion_trans
Protein Families Druggable Genome, Ion Channels: Transient receptor potential, Transmembrane
MW 111.2 kDa
Summary This gene belongs to the transient receptor family. It encodes one of the seven mammalian TRPC (transient receptor potential channel) proteins. The encoded protein is a multi-pass membrane protein and is thought to form a receptor-activated non-selective calcium permeant cation channel. The protein is active alone or as a heteromultimeric assembly with TRPC1, TRPC3, and TRPC4. It also interacts with multiple proteins including calmodulin, CABP1, enkurin, Na(+)-H+ exchange regulatory factor (NHERF ), interferon-induced GTP-binding protein (MX1), ring finger protein 24 (RNF24), and SEC14 domain and spectrin repeat-containing protein 1 (SESTD1). provided by RefSeq, May 2010
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_012471" in other vectors (6)
SKU Description Size Price
RC213238L1 Lenti ORF clone of Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5), Myc-DDK-tagged 10 ug
$1,191.00
RC213238L2 Lenti ORF clone of Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5), mGFP tagged 10 ug
$1,191.00
RC213238L3 Lenti ORF clone of Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5), Myc-DDK-tagged 10 ug
$1,191.00
RC213238L4 Lenti ORF clone of Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5), mGFP tagged 10 ug
$1,191.00
RG213238 TRPC5 (tGFP-tagged) - Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5) 10 ug
$789.00 $1,091.00
SC310023 TRPC5 (untagged)-Human transient receptor potential cation channel, subfamily C, member 5 (TRPC5) 10 ug
$892.00

Plasmid Map for RC213238

Download sequence for

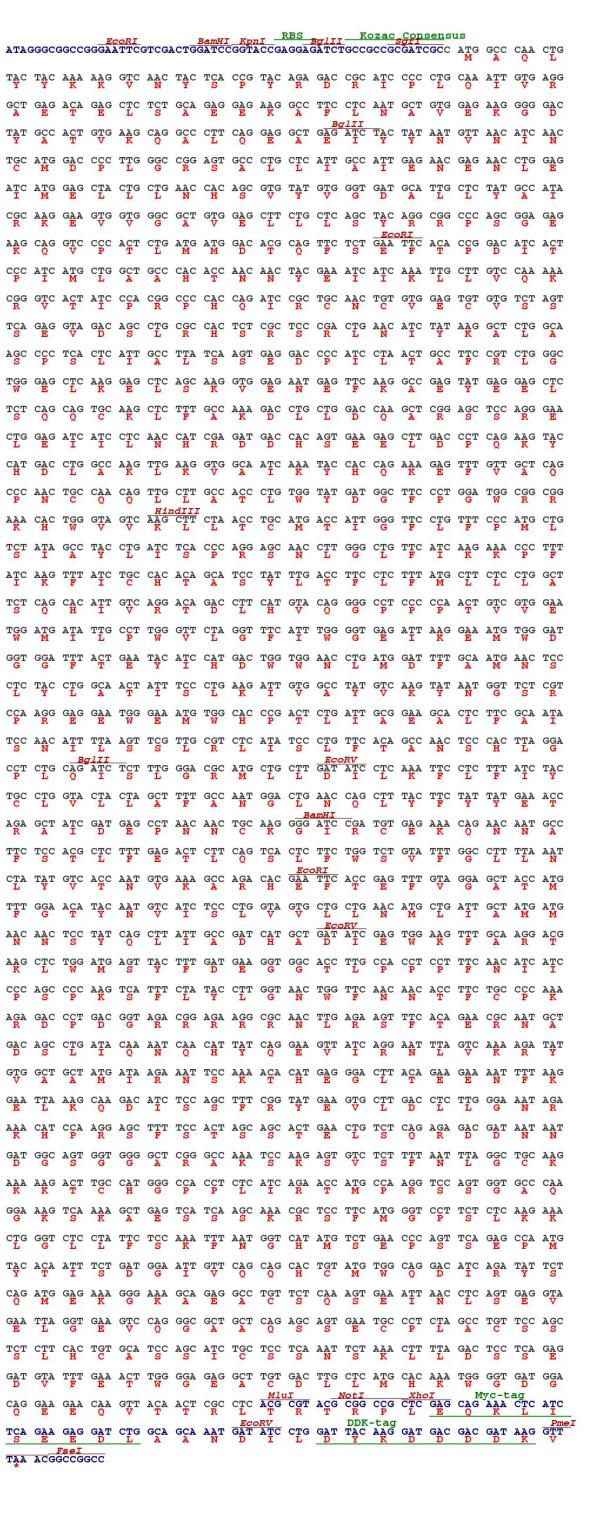

Cloning scheme for RC213238

Circular map for RC213238

file-alt Citations

Transient receptor potential canonical 5 mediates inflammatory mechanical and spontaneous pain in mice
Sadler, Moehring, Shiers et al
Sci Transl Med (2021) 13 (595) DOI: 10.1126/scitranslmed.abd7702
Cited by 90
AI Summary: OriGene’s pCMV vectors expressing mouse TRPC5 (mTRPC5) and human TRPC5 (hTRPC5) were used to study the role of TRPC5 in pain signaling by enabling the expression of these channels in cellular models.
Snippet: using a pCMV vector expressing either 1 μg of mTRPC5 or hTRPC5 (Origene) cotransfected with 7 μg of pBabe Puro vector for rapid stable selection
Transient receptor potential canonical 5 (TRPC5) mediates inflammatory mechanical pain
Sadler, Moehring, Shiers et al
bioRxiv (2020)
Cited by 2
Snippet: Stable cell lines were generated in HEK293 (ATCC, mycoplasma free) using a pCMV vector expressing either 1µg of mouse or human TRPC5 (Origene) co-transfected with 7µg of pBabe Puro vector for rapid stable selection
Molecular Determinants of the Sensitivity to Gq/11-phospholipase C-dependent Gating, Gd3+ Potentiation, and Ca2+ Permeability in the Transient Receptor Potential Canonical Type 5 (TRPC5) Channel
Chen, Li, Riley et al
J. Biol. Chem. (2016)
AI Summary: In this study, OriGene's mouse (Accession #: NM_009428) and human (Accession #: NM_012471) TRPC5 cDNAs were used as essential molecular tools to investigate the molecular mechanisms regulating TRPC5 channel sensitivity and function.
Snippet: channel. EXPERIMENTAL PROCEDURES Molecular biology—The mouse (Accession #: NM_009428) and human (Accession #: NM_012471, Origene Technologies, Rockville, MD) TRPC5 cDNAs were used during this study. ... Cite SaveSaving
Englerin A Agonizes the TRPC4/C5 Cation Channels to Inhibit Tumor Cell Line Proliferation
Carson, Raman, Tullai et al
PLoS ONE (2015) 10 (6), e0127498 DOI: 10.1371/journal.pone.0127498
Cited by 109
AI Summary: In this study, the human TRPC4 cDNA obtained from OriGene (catalog number RC218941) was used to construct HEK293T cell lines with inducible TRPC4 expression, enabling the researchers to investigate the role of TRPC4 in mediating the anti-proliferative effects of Englerin A on tumor cells.
Snippet: The HEK293T cell line with Dox-inducible expression of TRPC4 was constructed using the Invitrogen pcDNA5/FRT/TO TOPO TA expression kit (K6020-20). Human TRPC4 was ordered from Origene (Origene;RC218941). Forward ... Cite SaveSaving
