GRB2 (NM_203506) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC213101
GRB2 (Myc-DDK-tagged)-Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $300.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA349332 Rabbit Polyclonal Anti-GRB2 Antibody
100 ul
$205.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "GRB2 or NM_203506"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol GRB2
Synonyms ASH; EGFRBP-GRB2; Grb3-3; MST084; MSTP084; NCKAP2
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC213101 representing NM_203506
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAAGCCATCGCCAAATATGACTTCAAAGCTACTGCAGACGACGAGCTGAGCTTCAAAAGGGGGGACA
TCCTCAAGGTTTTGAACGAAGAATGTGATCAGAACTGGTACAAGGCAGAGCTTAATGGAAAAGACGGCTT
CATTCCCAAGAACTACATAGAAATGAAACCACATCCGTTTGGAAACGATGTGCAGCACTTCAAGGTGCTC
CGAGATGGAGCCGGGAAGTACTTCCTCTGGGTGGTGAAGTTCAATTCTTTGAATGAGCTGGTGGATTATC
ACAGATCTACATCTGTCTCCAGAAACCAGCAGATATTCCTGCGGGACATAGAACAGGTGCCACAGCAGCC
GACATACGTCCAGGCCCTCTTTGACTTTGATCCCCAGGAGGATGGAGAGCTGGGCTTCCGCCGGGGAGAT
TTTATCCATGTCATGGATAACTCAGACCCCAACTGGTGGAAAGGAGCTTGCCACGGGCAGACCGGCATGT
TTCCCCGCAATTATGTCACCCCCGTGAACCGGAACGTC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC213101 representing NM_203506
Red=Cloning site Green=Tags(s)

MEAIAKYDFKATADDELSFKRGDILKVLNEECDQNWYKAELNGKDGFIPKNYIEMKPHPFGNDVQHFKVL
RDGAGKYFLWVVKFNSLNELVDYHRSTSVSRNQQIFLRDIEQVPQQPTYVQALFDFDPQEDGELGFRRGD
FIHVMDNSDPNWWKGACHGQTGMFPRNYVTPVNRNV

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_203506
ORF Size 528 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_203506.2, NP_987102.1
RefSeq Size 3139 bp
RefSeq ORF 531 bp
Locus ID 2885
UniProt ID P62993, P62993-2
Cytogenetics 17q25.1
Protein Families Druggable Genome
Protein Pathways Acute myeloid leukemia, B cell receptor signaling pathway, Chemokine signaling pathway, Chronic myeloid leukemia, Colorectal cancer, Dorso-ventral axis formation, Endometrial cancer, ErbB signaling pathway, Fc epsilon RI signaling pathway, Focal adhesion, Gap junction, Glioma, GnRH signaling pathway, Insulin signaling pathway, Jak-STAT signaling pathway, MAPK signaling pathway, Natural killer cell mediated cytotoxicity, Neurotrophin signaling pathway, Non-small cell lung cancer, Pathways in cancer, Prostate cancer, Renal cell carcinoma, T cell receptor signaling pathway
MW 20.4 kDa
Summary The protein encoded by this gene binds the epidermal growth factor receptor and contains one SH2 domain and two SH3 domains. Its two SH3 domains direct complex formation with proline-rich regions of other proteins, and its SH2 domain binds tyrosine phosphorylated sequences. This gene is similar to the Sem5 gene of C.elegans, which is involved in the signal transduction pathway. Two alternatively spliced transcript variants encoding different isoforms have been found for this gene. provided by RefSeq, Jul 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_203506" in other vectors (6)
SKU Description Size Price
RC213101L1 Lenti ORF clone of Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC213101L2 Lenti ORF clone of Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2, mGFP tagged 10 ug
$600.00
RC213101L3 Lenti ORF clone of Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC213101L4 Lenti ORF clone of Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2, mGFP tagged 10 ug
$600.00
RG213101 GRB2 (tGFP-tagged) - Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2 10 ug
$500.00
SC308219 GRB2 (untagged)-Human growth factor receptor-bound protein 2 (GRB2), transcript variant 2 10 ug
$300.00

Plasmid Map for RC213101

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

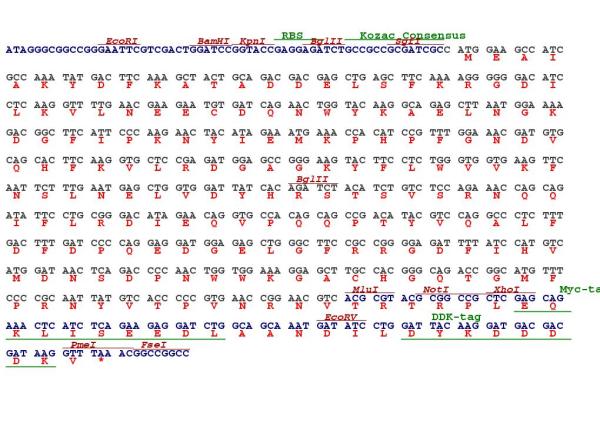

Cloning scheme for RC213101
Circular map for RC213101
