SIRPB1 (NM_006065) Human Tagged ORF Clone

SKU RC211765

SIRPB1 (Myc-DDK-tagged)-Human signal-regulatory protein beta 1 (SIRPB1), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SIRPB1
• Synonyms: CD172b; SIRP-BETA-1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

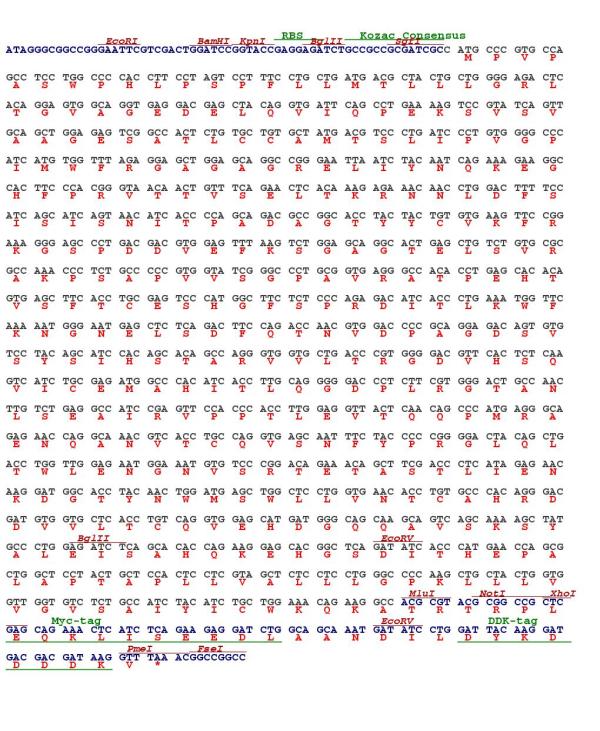

  ORF Nucleotide Sequence

  >RC211765 representing NM_006065; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCCCGTGCCAGCCTCCTGGCCCCACCTTCCTAGTCCTTTCCTGCTGATGACGCTACTGCTGGGGAGAC; TCACAGGAGTGGCAGGTGAGGACGAGCTACAGGTGATTCAGCCTGAAAAGTCCGTATCAGTTGCAGCTGG; AGAGTCGGCCACTCTGTGCTGTGCTATGACGTCCCTGATCCCTGTGGGGCCCATCATGTGGTTTAGAGGA; GCTGGAGCAGGCCGGGAATTAATCTACAATCAGAAAGAAGGCCACTTCCCACGGGTAACAACTGTTTCAG; AACTCACAAAGAGAAACAACCTGGACTTTTCCATCAGCATCAGTAACATCACCCCAGCAGACGCCGGCAC; CTACTACTGTGTGAAGTTCCGGAAAGGGAGCCCTGACGACGTGGAGTTTAAGTCTGGAGCAGGCACTGAG; CTGTCTGTGCGCGCCAAACCCTCTGCCCCCGTGGTATCGGGCCCTGCGGTGAGGGCCACACCTGAGCACA; CAGTGAGCTTCACCTGCGAGTCCCATGGCTTCTCTCCCAGAGACATCACCCTGAAATGGTTCAAAAATGG; GAATGAGCTCTCAGACTTCCAGACCAACGTGGACCCCGCAGGAGACAGTGTGTCCTACAGCATCCACAGC; ACAGCCAGGGTGGTGCTGACCCGTGGGGACGTTCACTCTCAAGTCATCTGCGAGATGGCCCACATCACCT; TGCAGGGGGACCCTCTTCGTGGGACTGCCAACTTGTCTGAGGCCATCCGAGTTCCACCCACCTTGGAGGT; TACTCAACAGCCCATGAGGGCAGAGAACCAGGCAAACGTCACCTGCCAGGTGAGCAATTTCTACCCCCGG; GGACTACAGCTGACCTGGTTGGAGAATGGAAATGTGTCCCGGACAGAAACAGCTTCGACCCTCATAGAGA; ACAAGGATGGCACCTACAACTGGATGAGCTGGCTCCTGGTGAACACCTGTGCCCACAGGGACGATGTGGT; GCTCACCTGTCAGGTGGAGCATGATGGGCAGCAAGCAGTCAGCAAAAGCTATGCCCTGGAGATCTCAGCA; CACCAGAAGGAGCACGGCTCAGATATCACCCATGAACCAGCGCTGGCTCCTACTGCTCCACTCCTCGTAG; CTCTCCTCCTGGGCCCCAAGCTGCTACTGGTGGTTGGTGTCTCTGCCATCTACATCTGCTGGAAACAGAA; GGCC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC211765 representing NM_006065; Red=Cloning site Green=Tags(s); ; MPVPASWPHLPSPFLLMTLLLGRLTGVAGEDELQVIQPEKSVSVAAGESATLCCAMTSLIPVGPIMWFRG; AGAGRELIYNQKEGHFPRVTTVSELTKRNNLDFSISISNITPADAGTYYCVKFRKGSPDDVEFKSGAGTE; LSVRAKPSAPVVSGPAVRATPEHTVSFTCESHGFSPRDITLKWFKNGNELSDFQTNVDPAGDSVSYSIHS; TARVVLTRGDVHSQVICEMAHITLQGDPLRGTANLSEAIRVPPTLEVTQQPMRAENQANVTCQVSNFYPR; GLQLTWLENGNVSRTETASTLIENKDGTYNWMSWLLVNTCAHRDDVVLTCQVEHDGQQAVSKSYALEISA; HQKEHGSDITHEPALAPTAPLLVALLLGPKLLLVVGVSAIYICWKQKA; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006065
• ORF Size: 1194 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006065.5
• RefSeq Size: 3804 bp
• RefSeq ORF: 1197 bp
• Locus ID: 10326
• UniProt ID: O00241
• Cytogenetics: 20p13
• Domains: ig, IG, IGc1
• Protein Families: Druggable Genome, Transmembrane
• MW: 43.2 kDa
• Summary: The protein encoded by this gene is a member of the signal-regulatory-protein (SIRP) family, and also belongs to the immunoglobulin superfamily. SIRP family members are receptor-type transmembrane glycoproteins known to be involved in the negative regulation of receptor tyrosine kinase-coupled signaling processes. This protein was found to interact with TYROBP/DAP12, a protein bearing immunoreceptor tyrosine-based activation motifs. This protein was also reported to participate in the recruitment of tyrosine kinase SYK. Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Feb 2009]
