B7-1 (CD80) (NM_005191) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RC206540
CD80 (Myc-DDK-tagged)-Human CD80 molecule (CD80)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
$289.00 $450.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA501575 CD80 mouse monoclonal antibody, clone OTI2B11 (formerly 2B11) 100 ul
$447.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "B7-1 or NM_005191"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol B7-1
Synonyms B7; B7-1; B7.1; BB1; CD28LG; CD28LG1; LAB7
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC206540 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGGCCACACACGGAGGCAGGGAACATCACCATCCAAGTGTCCATACCTCAATTTCTTTCAGCTCTTGG
TGCTGGCTGGTCTTTCTCACTTCTGTTCAGGTGTTATCCACGTGACCAAGGAAGTGAAAGAAGTGGCAAC
GCTGTCCTGTGGTCACAATGTTTCTGTTGAAGAGCTGGCACAAACTCGCATCTACTGGCAAAAGGAGAAG
AAAATGGTGCTGACTATGATGTCTGGGGACATGAATATATGGCCCGAGTACAAGAACCGGACCATCTTTG
ATATCACTAATAACCTCTCCATTGTGATCCTGGCTCTGCGCCCATCTGACGAGGGCACATACGAGTGTGT
TGTTCTGAAGTATGAAAAAGACGCTTTCAAGCGGGAACACCTGGCTGAAGTGACGTTATCAGTCAAAGCT
GACTTCCCTACACCTAGTATATCTGACTTTGAAATTCCAACTTCTAATATTAGAAGGATAATTTGCTCAA
CCTCTGGAGGTTTTCCAGAGCCTCACCTCTCCTGGTTGGAAAATGGAGAAGAATTAAATGCCATCAACAC
AACAGTTTCCCAAGATCCTGAAACTGAGCTCTATGCTGTTAGCAGCAAACTGGATTTCAATATGACAACC
AACCACAGCTTCATGTGTCTCATCAAGTATGGACATTTAAGAGTGAATCAGACCTTCAACTGGAATACAA
CCAAGCAAGAGCATTTTCCTGATAACCTGCTCCCATCCTGGGCCATTACCTTAATCTCAGTAAATGGAAT
TTTTGTGATATGCTGCCTGACCTACTGCTTTGCCCCAAGATGCAGAGAGAGAAGGAGGAATGAGAGATTG
AGAAGGGAAAGTGTACGCCCTGTA

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC206540 protein sequence
Red=Cloning site Green=Tags(s)

MGHTRRQGTSPSKCPYLNFFQLLVLAGLSHFCSGVIHVTKEVKEVATLSCGHNVSVEELAQTRIYWQKEK
KMVLTMMSGDMNIWPEYKNRTIFDITNNLSIVILALRPSDEGTYECVVLKYEKDAFKREHLAEVTLSVKA
DFPTPSISDFEIPTSNIRRIICSTSGGFPEPHLSWLENGEELNAINTTVSQDPETELYAVSSKLDFNMTT
NHSFMCLIKYGHLRVNQTFNWNTTKQEHFPDNLLPSWAITLISVNGIFVICCLTYCFAPRCRERRRNERL
RRESVRPV

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_005191
ORF Size 864 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_005191.4
RefSeq Size 2757 bp
RefSeq ORF 867 bp
Locus ID 941
UniProt ID P33681
Cytogenetics 3q13.33
Domains ig
Protein Families Druggable Genome, Transcription Factors, Transmembrane
Protein Pathways Allograft rejection, Autoimmune thyroid disease, Cell adhesion molecules (CAMs), Graft-versus-host disease, Systemic lupus erythematosus, Toll-like receptor signaling pathway, Type I diabetes mellitus, Viral myocarditis
MW 33 kDa
Summary The protein encoded by this gene is a membrane receptor that is activated by the binding of CD28 or CTLA-4. The activated protein induces T-cell proliferation and cytokine production. This protein can act as a receptor for adenovirus subgroup B and may play a role in lupus neuropathy. provided by RefSeq, Aug 2011
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_005191" in other vectors (6)
SKU Description Size Price
RC206540L1 Lenti ORF clone of Human CD80 molecule (CD80), Myc-DDK-tagged 10 ug
$750.00
RC206540L2 Lenti ORF clone of Human CD80 molecule (CD80), mGFP tagged 10 ug
$750.00
RC206540L3 Lenti ORF clone of Human CD80 molecule (CD80), Myc-DDK-tagged 10 ug
$750.00
RC206540L4 Lenti ORF clone of Human CD80 molecule (CD80), mGFP tagged 10 ug
$750.00
RG206540 CD80 (tGFP-tagged) - Human CD80 molecule (CD80) 10 ug
$489.00 $650.00
SC108276 CD80 (untagged)-Human CD80 molecule (CD80) 10 ug
$1,262.00

Plasmid Map for RC206540

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

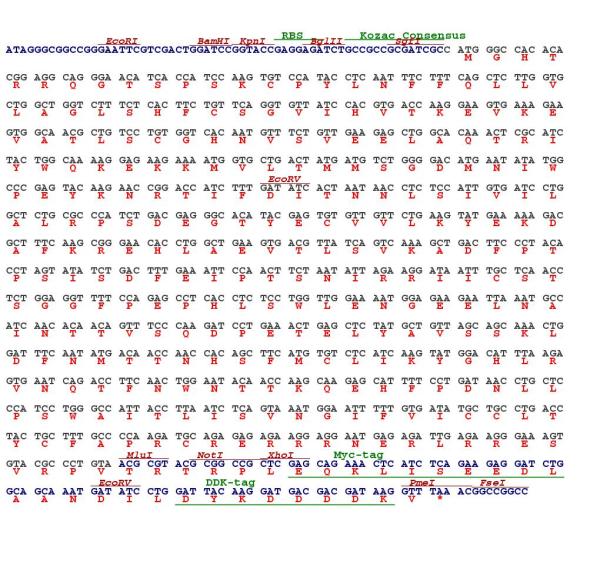

Cloning scheme for RC206540
Circular map for RC206540
