TEM7 (PLXDC1) (NM_020405) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC206233
PLXDC1 (Myc-DDK-tagged)-Human plexin domain containing 1 (PLXDC1)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $457.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA336403 Mouse Monoclonal TEM7/PLXDC1 Antibody (197C193 (IM193))
100 ug
$620.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "TEM7 or NM_020405"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol TEM7
Synonyms TEM3; TEM7
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC206233 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCGAGGCGAGCTCTGGCTCCTGGTGCTGGTGCTCAGGGAGGCTGCCCGGGCGCTGAGCCCCCAGCCCG
GAGCAGGTCACGATGAGGGCCCAGGCTCTGGATGGGCTGCCAAAGGGACCGTGCGGGGCTGGAACCGGAG
AGCCCGAGAGAGCCCTGGGCATGTGTCAGAGCCGGACAGGACCCAGCTGAGCCAGGACCTGGGTGGGGGC
ACCCTGGCCATGGACACGCTGCCAGATAACAGGACCAGGGTGGTGGAGGACAACCACAGCTATTATGTGT
CCCGTCTCTATGGCCCCAGCGAGCCCCACAGCCGGGAACTGTGGGTAGATGTGGCCGAGGCCAACCGGAG
CCAAGTGAAGATCCACACAATACTCTCCAACACCCACCGGCAGGCTTCGAGAGTGGTCTTGTCCTTTGAT
TTCCCTTTCTACGGGCATCCTCTGCGGCAGATCACCATGGCAACTGGAGGCTTCATCTTCATGGGGGACG
TGATCCATCGGATGCTCACAGCTACTCAGTATGTGGCGCCCCTGATGGCCAACTTCAACCCTGGCTACTC
CGACAACTCCACAGTTGTTTACTTTGACAATGGGACAGTCTTTGTGGTTCAGTGGGACCACGTTTATCTC
CAAGGCTGGGAAGACAAGGGCAGTTTCACCTTCCAGGCAGCTCTGCACCATGACGGCCGCATTGTCTTTG
CCTATAAAGAGATCCCTATGTCTGTCCCGGAAATCAGCTCCTCCCAGCATCCTGTCAAAACCGGCCTATC
GGATGCCTTCATGATTCTCAATCCATCCCCGGATGTGCCAGAATCTCGGCGAAGGAGCATCTTTGAATAT
CACCGCATAGAGCTGGACCCCAGCAAGGTCACCAGCATGTCGGCCGTGGAGTTCACCCCATTGCCGACCT
GCCTGCAGCATAGGAGCTGTGACGCCTGCATGTCCTCAGACCTGACCTTCAACTGCAGCTGGTGCCATGT
CCTCCAGAGATGCTCCAGTGGCTTTGACCGCTATCGCCAGGAGTGGATGGACTATGGCTGTGCACAGGAG
GCAGAGGGCAGGATGTGCGAGGACTTCCAGGATGAGGACCACGACTCAGCCTCCCCTGACACTTCCTTCA
GCCCCTATGATGGAGACCTCACCACTACCTCCTCCTCCCTCTTCATCGACAGCCTCACCACAGAAGATGA
CACCAAGTTGAATCCCTATGCAGGAGGAGACGGCCTTCAGAACAACCTGTCACCCAAGACAAAGGGCACT
CCTGTGCACCTGGGCACCATCGTGGGCATCGTGCTGGCAGTCCTCCTCGTGGCGGCCATCATCCTGGCTG
GAATTTACATCAATGGCCACCCCACATCCAATGCTGCGCTCTTCTTCATCGAGCGTAGACCTCACCACTG
GCCAGCCATGAAGTTTCGCAGCCACCCTGACCATTCCACCTATGCGGAGGTGGAGCCCTCGGGCCATGAG
AAGGAGGGCTTCATGGAGGCTGAGCAGTGC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC206233 protein sequence
Red=Cloning site Green=Tags(s)

MRGELWLLVLVLREAARALSPQPGAGHDEGPGSGWAAKGTVRGWNRRARESPGHVSEPDRTQLSQDLGGG
TLAMDTLPDNRTRVVEDNHSYYVSRLYGPSEPHSRELWVDVAEANRSQVKIHTILSNTHRQASRVVLSFD
FPFYGHPLRQITMATGGFIFMGDVIHRMLTATQYVAPLMANFNPGYSDNSTVVYFDNGTVFVVQWDHVYL
QGWEDKGSFTFQAALHHDGRIVFAYKEIPMSVPEISSSQHPVKTGLSDAFMILNPSPDVPESRRRSIFEY
HRIELDPSKVTSMSAVEFTPLPTCLQHRSCDACMSSDLTFNCSWCHVLQRCSSGFDRYRQEWMDYGCAQE
AEGRMCEDFQDEDHDSASPDTSFSPYDGDLTTTSSSLFIDSLTTEDDTKLNPYAGGDGLQNNLSPKTKGT
PVHLGTIVGIVLAVLLVAAIILAGIYINGHPTSNAALFFIERRPHHWPAMKFRSHPDHSTYAEVEPSGHE
KEGFMEAEQC

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_020405
ORF Size 1500 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_020405.5
RefSeq Size 6271 bp
RefSeq ORF 1503 bp
Locus ID 57125
UniProt ID Q8IUK5
Cytogenetics 17q12
Domains PSI
Protein Families Druggable Genome, Secreted Protein, Transmembrane
MW 55.8 kDa
Summary Plays a critical role in endothelial cell capillary morphogenesis.UniProtKB/Swiss-Prot Function
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_020405" in other vectors (6)
SKU Description Size Price
RC206233L1 Lenti ORF clone of Human plexin domain containing 1 (PLXDC1), Myc-DDK-tagged 10 ug
$757.00
RC206233L2 Lenti ORF clone of Human plexin domain containing 1 (PLXDC1), mGFP tagged 10 ug
$757.00
RC206233L3 Lenti ORF clone of Human plexin domain containing 1 (PLXDC1), Myc-DDK-tagged 10 ug
$757.00
RC206233L4 Lenti ORF clone of Human plexin domain containing 1 (PLXDC1), mGFP tagged 10 ug
$757.00
RG206233 PLXDC1 (tGFP-tagged) - Human plexin domain containing 1 (PLXDC1) 10 ug
$489.00 $657.00
SC113127 PLXDC1 (untagged)-Human plexin domain containing 1 (PLXDC1) 10 ug
$466.00

Plasmid Map for RC206233

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

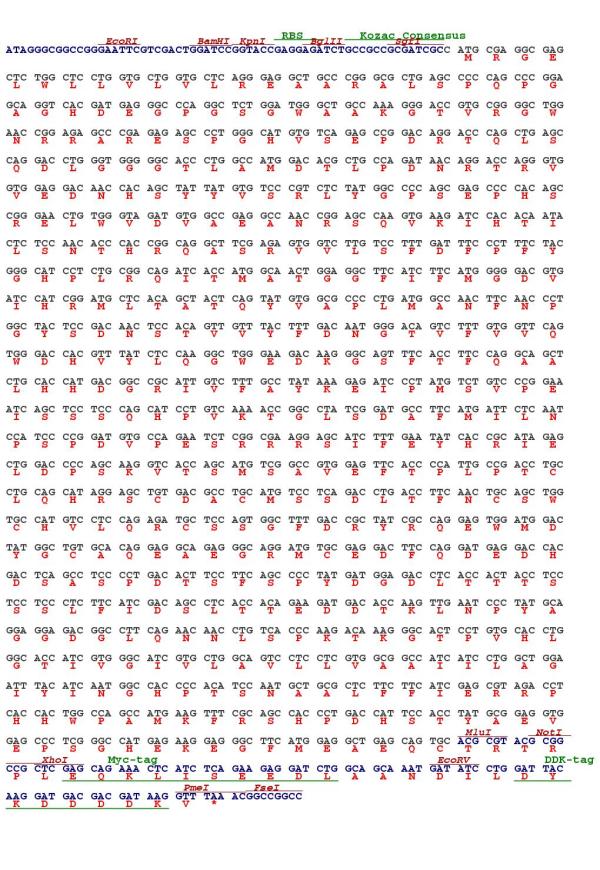

Cloning scheme for RC206233
Circular map for RC206233
