ATP5L (NM_006476) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC205078
ATP5L (Myc-DDK-tagged)-Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit G (ATP5L), nuclear gene encoding mitochondrial protein, transcript variant 1
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $150.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA365925 ATP5MG rabbit polyclonal antibody
100 ul
$310.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "ATP5L or NM_006476"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol ATP5L
Synonyms ATP5JG; ATP5L
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC205078 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCCCAATTTGTCCGTAACCTTGTGGAGAAGACCCCGGCGCTGGTGAACGCTGCTGTGACTTACTCGA
AGCCTCGATTGGCCACATTTTGGTACTACGCCAAGGTTGAGCTGGTTCCTCCCACCCCTGCTGAGATCCC
TAGAGCTATTCAGAGCCTGAAAAAAATAGCCAATAGTGCTCAGACTGGTAGCTTCAAACAGCTCACAGTT
AAGGAAGCTGTGCTGAATGGTTTGGTGGCCACTGAGGTGTTGATGTGGTTTTATGTCGGAGAGATTATAG
GCAAGCGGGGCATCATTGGCTATGATGTT

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC205078 protein sequence
Red=Cloning site Green=Tags(s)

MAQFVRNLVEKTPALVNAAVTYSKPRLATFWYYAKVELVPPTPAEIPRAIQSLKKIANSAQTGSFKQLTV
KEAVLNGLVATEVLMWFYVGEIIGKRGIIGYDV

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_006476
ORF Size 309 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_006476.3
RefSeq Size 1343 bp
RefSeq ORF 312 bp
Locus ID 10632
UniProt ID O75964
Cytogenetics 11q23.3
Domains ATP-synt_G
Protein Pathways Metabolic pathways, Oxidative phosphorylation
MW 11.4 kDa
Summary Mitochondrial ATP synthase catalyzes ATP synthesis, utilizing an electrochemical gradient of protons across the inner membrane during oxidative phosphorylation. It is composed of two linked multi-subunit complexes: the soluble catalytic core, F1, and the membrane-spanning component, Fo, which comprises the proton channel. The F1 complex consists of 5 different subunits (alpha, beta, gamma, delta, and epsilon) assembled in a ratio of 3 alpha, 3 beta, and a single representative of the other 3. The Fo seems to have nine subunits (a, b, c, d, e, f, g, F6 and 8). This gene encodes the g subunit of the Fo complex. Alternative splicing results in multiple transcript variants.provided by RefSeq, Jun 2010
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_006476" in other vectors (4)
SKU Description Size Price
RC205078L3 Lenti ORF clone of Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit G (ATP5L), nuclear gene encoding mitochondrial protein, transcript variant 1, Myc-DDK-tagged 10 ug
$450.00
RC205078L4 Lenti ORF clone of Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit G (ATP5L), nuclear gene encoding mitochondrial protein, transcript variant 1, mGFP tagged 10 ug
$450.00
RG205078 ATP5L (tGFP-tagged) - Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit G (ATP5L), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$489.00
SC127740 ATP5L (untagged)-Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit G (ATP5L), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$150.00

Plasmid Map for RC205078

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

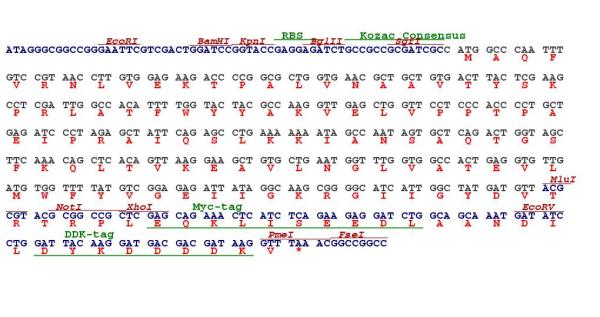

Cloning scheme for RC205078
Circular map for RC205078
