SDHC (NM_003001) Human Tagged ORF Clone

SKU RC205010

SDHC (Myc-DDK-tagged)-Human succinate dehydrogenase complex, subunit C, integral membrane protein, 15kDa (SDHC), nuclear gene encoding mitochondrial protein, transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SDHC
• Synonyms: CYB560; CYBL; PGL3; QPS1; SDH3
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

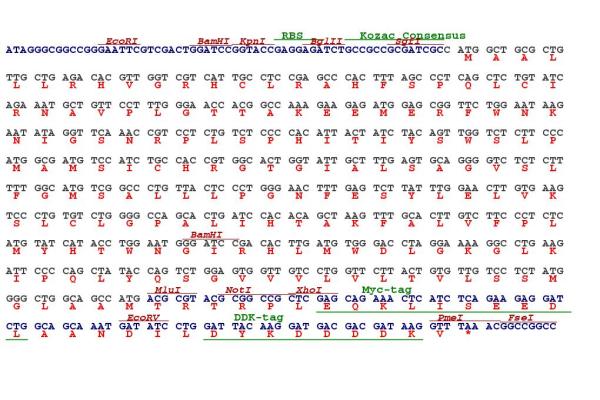

  >RC205010 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTGCGCTGTTGCTGAGACACGTTGGTCGTCATTGCCTCCGAGCCCACTTTAGCCCTCAGCTCTGTA; TCAGAAATGCTGTTCCTTTGGGAACCACGGCCAAAGAAGAGATGGAGCGGTTCTGGAATAAGAATATAGG; TTCAAACCGTCCTCTGTCTCCCCACATTACTATCTACAGTTGGTCTCTTCCCATGGCGATGTCCATCTGC; CACCGTGGCACTGGTATTGCTTTGAGTGCAGGGGTCTCTCTTTTTGGCATGTCGGCCCTGTTACTCCCTG; GGAACTTTGAGTCTTATTTGGAACTTGTGAAGTCCCTGTGTCTGGGGCCAGCACTGATCCACACAGCTAA; GTTTGCACTTGTCTTCCCTCTCATGTATCATACCTGGAATGGGATCCGACACTTGATGTGGGACCTAGGA; AAAGGCCTGAAGATTCCCCAGCTATACCAGTCTGGAGTGGTTGTCCTGGTTCTTACTGTGTTGTCCTCTA; TGGGGCTGGCAGCCATG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC205010 protein sequence; Red=Cloning site Green=Tags(s); ; MAALLLRHVGRHCLRAHFSPQLCIRNAVPLGTTAKEEMERFWNKNIGSNRPLSPHITIYSWSLPMAMSIC; HRGTGIALSAGVSLFGMSALLLPGNFESYLELVKSLCLGPALIHTAKFALVFPLMYHTWNGIRHLMWDLG; KGLKIPQLYQSGVVVLVLTVLSSMGLAAM; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_003001
• ORF Size: 507 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_003001.5
• RefSeq Size: 2858 bp
• RefSeq ORF: 510 bp
• Locus ID: 6391
• UniProt ID: Q99643
• Cytogenetics: 1q23.3
• Domains: Sdh_cyt
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Alzheimer's disease, Citrate cycle (TCA cycle), Huntington's disease, Metabolic pathways, Oxidative phosphorylation, Parkinson's disease
• MW: 18.6 kDa
• Summary: This gene encodes one of four nuclear-encoded subunits that comprise succinate dehydrogenase, also known as mitochondrial complex II, a key enzyme complex of the tricarboxylic acid cycle and aerobic respiratory chains of mitochondria. The encoded protein is one of two integral membrane proteins that anchor other subunits of the complex, which form the catalytic core, to the inner mitochondrial membrane. There are several related pseudogenes for this gene on different chromosomes. Mutations in this gene have been associated with paragangliomas. Alternatively spliced transcript variants have been described. [provided by RefSeq, May 2013]
