TFAP4 (NM_003223) Human Tagged ORF Clone

SKU RC203773

TFAP4 (Myc-DDK-tagged)-Human transcription factor AP-4 (activating enhancer binding protein 4) (TFAP4)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TFAP4
• Synonyms: AP-4; bHLHc41
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC203773 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAGTATTTCATGGTGCCCACTCAGAAGGTGCCCTCTTTGCAACATTTCAGGAAAACAGAGAAAGAAG; TGATAGGAGGGCTCTGTAGCCTTGCCAACATTCCACTAACCCCCGAGACTCAGCGGGACCAGGAGCGGCG; GATTCGGCGGGAGATCGCCAACAGCAACGAGCGGAGACGCATGCAGAGCATCAACGCGGGATTCCAGTCC; CTCAAGACCCTCATCCCCCACACAGACGGAGAGAAGCTCAGCAAGGCAGCCATTCTCCAGCAGACAGCCG; AGTACATCTTCTCCCTGGAGCAGGAGAAGACCAGGCTCTTGCAGCAGAACACACAGCTCAAGCGCTTCAT; CCAGGAGCTGAGCGGCTCGTCCCCCAAGCGACGGCGGGCAGAGGACAAGGACGAAGGCATAGGCTCCCCG; GACATCTGGGAGGACGAGAAGGCGGAGGACCTGCGGCGGGAGATGATTGAGCTGCGGCAGCAGCTGGACA; AGGAGCGCTCGGTGCGCATGATGCTGGAGGAGCAGGTGCGCTCGCTGGAGGCCCACATGTACCCGGAAAA; GCTCAAGGTGATTGCGCAGCAGGTGCAGCTGCAGCAGCAGCAGGAACAGGTGAGGCTGCTGCACCAGGAG; AAGCTGGAGCGGGAACAGCAGCAGCTGCGGACCCAGCTTCTGCCCCCTCCGGCCCCCACCCACCACCCCA; CGGTGATCGTGCCAGCACCGCCTCCTCCTCCCTCCCACCACATCAATGTCGTCACCATGGGCCCCTCCTC; GGTCATCAACTCTGTTTCCACATCCCGGCAAAATCTGGACACCATCGTGCAGGCAATCCAGCACATCGAG; GGCACCCAGGAAAAGCAGGAGCTGGAGGAGGAGCAGCGGCGAGCTGTCATCGTGAAGCCTGTCCGCAGCT; GCCCGGAGGCCCCCACCTCTGACACCGCCTCCGACTCCGAGGCCTCAGACAGTGACGCCATGGACCAGAG; CCGGGAGGAGCCGTCGGGGGACGGGGAGCTTCCC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC203773 protein sequence; Red=Cloning site Green=Tags(s); ; MEYFMVPTQKVPSLQHFRKTEKEVIGGLCSLANIPLTPETQRDQERRIRREIANSNERRRMQSINAGFQS; LKTLIPHTDGEKLSKAAILQQTAEYIFSLEQEKTRLLQQNTQLKRFIQELSGSSPKRRRAEDKDEGIGSP; DIWEDEKAEDLRREMIELRQQLDKERSVRMMLEEQVRSLEAHMYPEKLKVIAQQVQLQQQQEQVRLLHQE; KLEREQQQLRTQLLPPPAPTHHPTVIVPAPPPPPSHHINVVTMGPSSVINSVSTSRQNLDTIVQAIQHIE; GTQEKQELEEEQRRAVIVKPVRSCPEAPTSDTASDSEASDSDAMDQSREEPSGDGELP; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

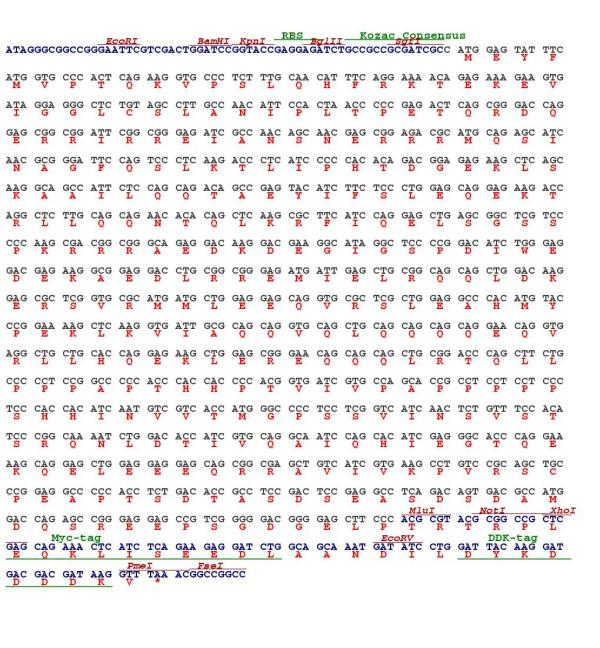

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_003223
• ORF Size: 1014 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_003223.3
• RefSeq Size: 2147 bp
• RefSeq ORF: 1017 bp
• Locus ID: 7023
• UniProt ID: Q01664
• Cytogenetics: 16p13.3
• Protein Families: Druggable Genome, Transcription Factors
• MW: 38.7 kDa
• Summary: Transcription factors of the basic helix-loop-helix-zipper (bHLH-ZIP) family contain a basic domain, which is used for DNA binding, and HLH and ZIP domains, which are used for oligomerization. Transcription factor AP4 activates both viral and cellular genes by binding to the symmetrical DNA sequence CAGCTG (Mermod et al., 1988 [PubMed 2833704]; Hu et al., 1990 [PubMed 2123466]).[supplied by OMIM, Jul 2009]
