PSMC5 (NM_002805) Human Tagged ORF Clone

SKU RC201251

PSMC5 (Myc-DDK-tagged)-Human proteasome (prosome, macropain) 26S subunit, ATPase, 5 (PSMC5), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PSMC5
• Synonyms: p45; p45/SUG; RPT6; S8; SUG-1; SUG1; TBP10; TRIP1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

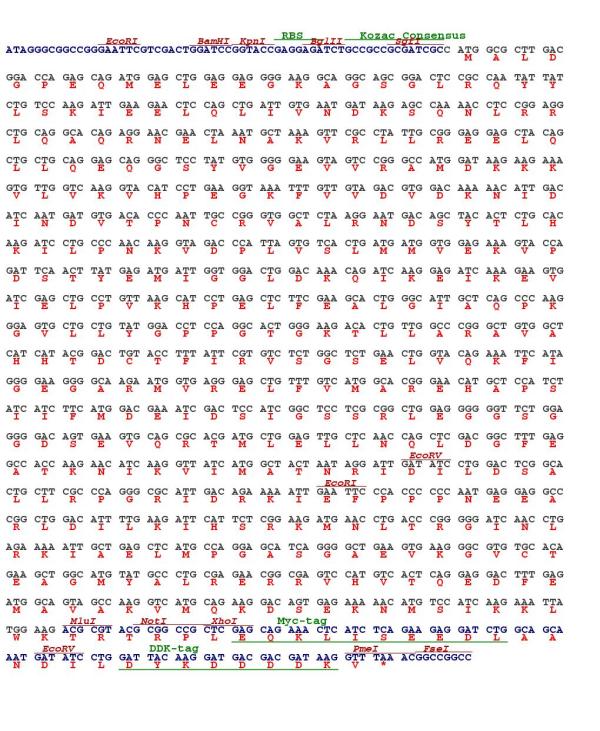

  ORF Nucleotide Sequence

  >RC201251 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGCTTGACGGACCAGAGCAGATGGAGCTGGAGGAGGGGAAGGCAGGCAGCGGACTCCGCCAATATT; ATCTGTCCAAGATTGAAGAACTCCAGCTGATTGTGAATGATAAGAGCCAAAACCTCCGGAGGCTGCAGGC; ACAGAGGAACGAACTAAATGCTAAAGTTCGCCTATTGCGGGAGGAGCTACAGCTGCTGCAGGAGCAGGGC; TCCTATGTGGGGGAAGTAGTCCGGGCCATGGATAAGAAGAAAGTGTTGGTCAAGGTACATCCTGAAGGTA; AATTTGTTGTAGACGTGGACAAAAACATTGACATCAATGATGTGACACCCAATTGCCGGGTGGCTCTAAG; GAATGACAGCTACACTCTGCACAAGATCCTGCCCAACAAGGTAGACCCATTAGTGTCACTGATGATGGTG; GAGAAAGTACCAGATTCAACTTATGAGATGATTGGTGGACTGGACAAACAGATCAAGGAGATCAAAGAAG; TGATCGAGCTGCCTGTTAAGCATCCTGAGCTCTTCGAAGCACTGGGCATTGCTCAGCCCAAGGGAGTGCT; GCTGTATGGACCTCCAGGCACTGGGAAGACACTGTTGGCCCGGGCTGTGGCTCATCATACGGACTGTACC; TTTATTCGTGTCTCTGGCTCTGAACTGGTACAGAAATTCATAGGGGAAGGGGCAAGAATGGTGAGGGAGC; TGTTTGTCATGGCACGGGAACATGCTCCATCTATCATCTTCATGGACGAAATCGACTCCATCGGCTCCTC; GCGGCTGGAGGGGGGTTCTGGAGGGGACAGTGAAGTGCAGCGCACGATGCTGGAGTTGCTCAACCAGCTC; GACGGCTTTGAGGCCACCAAGAACATCAAGGTTATCATGGCTACTAATAGGATTGATATCCTGGACTCGG; CACTGCTTCGCCCAGGGCGCATTGACAGAAAAATTGAATTCCCACCCCCCAATGAGGAGGCCCGGCTGGA; CATTTTGAAGATTCATTCTCGGAAGATGAACCTGACCCGGGGGATCAACCTGAGAAAAATTGCTGAGCTC; ATGCCAGGAGCATCAGGGGCTGAAGTGAAGGGCGTGTGCACAGAAGCTGGCATGTATGCCCTGCGAGAAC; GGCGAGTCCATGTCACTCAGGAGGACTTTGAGATGGCAGTAGCCAAGGTCATGCAGAAGGACAGTGAGAA; AAACATGTCCATCAAGAAATTATGGAAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC201251 protein sequence; Red=Cloning site Green=Tags(s); ; MALDGPEQMELEEGKAGSGLRQYYLSKIEELQLIVNDKSQNLRRLQAQRNELNAKVRLLREELQLLQEQG; SYVGEVVRAMDKKKVLVKVHPEGKFVVDVDKNIDINDVTPNCRVALRNDSYTLHKILPNKVDPLVSLMMV; EKVPDSTYEMIGGLDKQIKEIKEVIELPVKHPELFEALGIAQPKGVLLYGPPGTGKTLLARAVAHHTDCT; FIRVSGSELVQKFIGEGARMVRELFVMAREHAPSIIFMDEIDSIGSSRLEGGSGGDSEVQRTMLELLNQL; DGFEATKNIKVIMATNRIDILDSALLRPGRIDRKIEFPPPNEEARLDILKIHSRKMNLTRGINLRKIAEL; MPGASGAEVKGVCTEAGMYALRERRVHVTQEDFEMAVAKVMQKDSEKNMSIKKLWK; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002805
• ORF Size: 1218 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002805.6
• RefSeq Size: 1372 bp
• RefSeq ORF: 1221 bp
• Locus ID: 5705
• UniProt ID: P62195
• Cytogenetics: 17q23.3
• Domains: AAA
• Protein Families: Druggable Genome
• Protein Pathways: Proteasome
• MW: 45.6 kDa
• Summary: The 26S proteasome is a multicatalytic proteinase complex with a highly ordered structure composed of 2 complexes, a 20S core and a 19S regulator. The 20S core is composed of 4 rings of 28 non-identical subunits; 2 rings are composed of 7 alpha subunits and 2 rings are composed of 7 beta subunits. The 19S regulator is composed of a base, which contains 6 ATPase subunits and 2 non-ATPase subunits, and a lid, which contains up to 10 non-ATPase subunits. Proteasomes are distributed throughout eukaryotic cells at a high concentration and cleave peptides in an ATP/ubiquitin-dependent process in a non-lysosomal pathway. An essential function of a modified proteasome, the immunoproteasome, is the processing of class I MHC peptides. This gene encodes one of the ATPase subunits, a member of the triple-A family of ATPases which have a chaperone-like activity. In addition to participation in proteasome functions, this subunit may participate in transcriptional regulation since it has been shown to interact with the thyroid hormone receptor and retinoid X receptor-alpha. Two transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Nov 2010]
