Clec4e (NM_019948) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MR202353
Clec4e (Myc-DDK-tagged) - Mouse C-type lectin domain family 4, member e (Clec4e)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
$289.00 $300.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "Clec4e or NM_019948"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Clec4e
Synonyms C86253; Clecsf9; Mincle
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MR202353 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGAATTCAACCAAATCGCCTGCATCCCACCACACAGAGAGAGGATGCTTCAAAAACTCCCAAGTGCTCT
CCTGGACGATAGCCGGGGCCTCCATCCTGTTTCTCAGTGGCTGTTTCATCACCAGATGTGTCGTAACATA
TCGCAGCTCTCAAATTTCCGGGCAGAACTTACAGCCACATAGAAATATTAAGGAGCTTTCCTGCTACAGT
GAGGCATCAGGTTCAGTCAAGAATTGCTGTCCTTTGAACTGGAAACATTATCAATCTAGTTGTTATTTTT
TCTCTACGACAACCTTGACCTGGTCATCAAGTTTAAAGAATTGCTCAGACATGGGGGCTCACCTGGTGGT
TATCGACACACAGGAAGAGCAGGAATTCCTTTTTCGCACAAAACCTAAAAGGAAAGAGTTTTATATTGGA
CTGACAGACCAGGTGGTGGAGGGTCAGTGGCAATGGGTGGATGATACACCTTTCACAGAGTCCCTGAGCT
TCTGGGATGCTGGGGAGCCCAACAATATAGTTTTGGTGGAGGACTGTGCCACCATAAGGGACTCTTCAAA
CTCCAGGAAGAACTGGAATGATATACCCTGTTTCTACAGTATGCCTTGGATTTGTGAGATGCCAGAAATA
AGTCCTCTGGAC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>MR202353 protein sequence
Red=Cloning site Green=Tags(s)

MNSTKSPASHHTERGCFKNSQVLSWTIAGASILFLSGCFITRCVVTYRSSQISGQNLQPHRNIKELSCYS
EASGSVKNCCPLNWKHYQSSCYFFSTTTLTWSSSLKNCSDMGAHLVVIDTQEEQEFLFRTKPKRKEFYIG
LTDQVVEGQWQWVDDTPFTESLSFWDAGEPNNIVLVEDCATIRDSSNSRKNWNDIPCFYSMPWICEMPEI
SPLD

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_019948
ORF Size 642 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_019948.2, NP_064332.1
RefSeq Size 2519 bp
RefSeq ORF 645 bp
Locus ID 56619
UniProt ID Q9R0Q8
Cytogenetics 6 58.35 cM
MW 24.4 kDa
Summary A calcium-dependent lectin that acts as a pattern recognition receptor of the innate immune system. Recognizes damage-associated molecular patterns (DAMPs) of abnormal self and pathogen-associated molecular patterns (PAMPs) of bacteria and fungi (PubMed:18509109, PubMed:19171887, PubMed:23602766, PubMed:18776906). The PAMPs notably include mycobacterial trehalose 6,6'-dimycolate (TDM), a cell wall glycolipid with potent adjuvant immunomodulatory functions (PubMed:23602766). Interacts with signaling adapter Fc receptor gamma chain/FCER1G to form a functional complex in myeloid cells (PubMed:23602766, PubMed:18776906). Binding of mycobacterial trehalose 6,6'-dimycolate (TDM) to this receptor complex leads to phosphorylation of the immunoreceptor tyrosine-based activation motif (ITAM) of FCER1G, triggering activation of SYK, CARD9 and NF-kappa-B, consequently driving maturation of antigen-presenting cells and shaping antigen-specific priming of T-cells toward effector T-helper 1 and T-helper 17 cell subtypes (PubMed:23602766). Specifically recognizes alpha-mannose residues on pathogenic fungi of the genus Malassezia and mediates macrophage activation (PubMed:19171887). Through recognition of DAMPs released upon nonhomeostatic cell death, enables immune sensing of damaged self and promotes inflammatory cell infiltration into the damaged tissue (PubMed:18776906).UniProtKB/Swiss-Prot Function
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_019948" in other vectors (4)
SKU Description Size Price
MC207531 Clec4e (untagged) - Mouse C-type lectin domain family 4, member e (Clec4e), (10ug) 10 ug
$300.00
MG202353 Clec4e (tGFP-tagged) - Mouse C-type lectin domain family 4, member e (Clec4e) 10 ug
$489.00 $500.00
MR202353L3 Lenti ORF clone of Clec4e (Myc-DDK-tagged) - Mouse C-type lectin domain family 4, member e (Clec4e) 10 ug
$600.00
MR202353L4 Lenti ORF clone of Clec4e (mGFP-tagged) - Mouse C-type lectin domain family 4, member e (Clec4e) 10 ug
$600.00

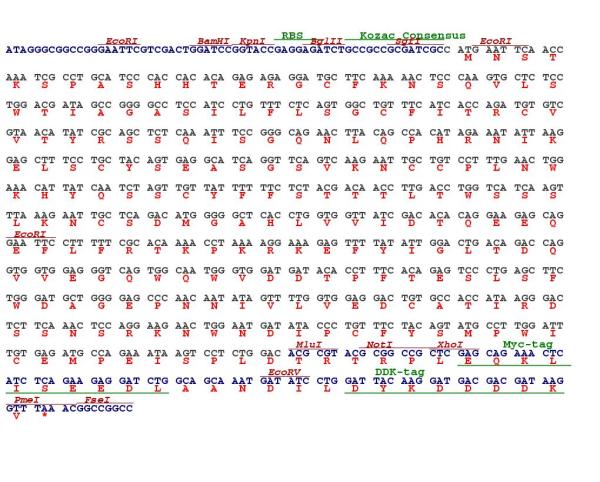

Plasmid Map for MR202353
