Cygb (NM_030206) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MR201816
Cygb (Myc-DDK-tagged) - Mouse cytoglobin (Cygb)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
$289.00 $300.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "Cygb or NM_030206"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Cygb
Synonyms 3110001K20Rik; HGb; Staap
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MR201816 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAGAAAGTGCCGGGCGACATGGAGATAGAGCGTAGGGAGAGGAGCGAGGAGCTGTCCGAGGCGGAGA
GGAAGGCGGTTCAGGCTACGTGGGCCCGGCTGTATGCCAACTGCGAGGACGTGGGGGTGGCCATCCTGGT
GAGGTTCTTTGTGAACTTCCCTTCGGCCAAGCAGTACTTCAGCCAGTTTAGACACATGGAGGATCCCTTG
GAGATGGAGAGGAGTCCCCAGCTGCGGAAGCACGCCTGCCGGGTCATGGGGGCCCTCAACACTGTCGTGG
AGAACCTGCATGACCCAGACAAGGTATCCTCTGTGCTCGCCCTGGTCGGCAAGGCCCACGCCCTCAAGCA
CAAGGTGGAACCTATGTACTTTAAGATTCTCTCTGGGGTCATTCTGGAGGTGATCGCCGAGGAATTTGCC
AATGACTTCCCTGTGGAGACGCAGAAAGCCTGGGCCAAGCTGCGGGGTCTCATCTACAGCCACGTGACCG
CAGCCTACAAGGAAGTGGGCTGGGTACAGCAGGTCCCCAACACCACCACCCCACCAGCCACTCTGCCCTC
TTCAGGGCCG

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>MR201816 protein sequence
Red=Cloning site Green=Tags(s)

MEKVPGDMEIERRERSEELSEAERKAVQATWARLYANCEDVGVAILVRFFVNFPSAKQYFSQFRHMEDPL
EMERSPQLRKHACRVMGALNTVVENLHDPDKVSSVLALVGKAHALKHKVEPMYFKILSGVILEVIAEEFA
NDFPVETQKAWAKLRGLIYSHVTAAYKEVGWVQQVPNTTTPPATLPSSGP

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_030206
ORF Size 570 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_030206.4
RefSeq Size 2331 bp
RefSeq ORF 573 bp
Locus ID 114886
UniProt ID Q9CX80
Cytogenetics 11 E2
MW 21.5 kDa
Summary May have a protective function during conditions of oxidative stress. May be involved in intracellular oxygen storage or transfer.UniProtKB/Swiss-Prot Function
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_030206" in other vectors (3)
SKU Description Size Price
MG201816 Cygb (tGFP-tagged) - Mouse cytoglobin (Cygb) 10 ug
$489.00 $500.00
MR201816L3 Lenti ORF clone of Cygb (Myc-DDK-tagged) - Mouse cytoglobin (Cygb) 10 ug
$600.00
MR201816L4 Lenti ORF clone of Cygb (mGFP-tagged) - Mouse cytoglobin (Cygb) 10 ug
$600.00

Plasmid Map for MR201816

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

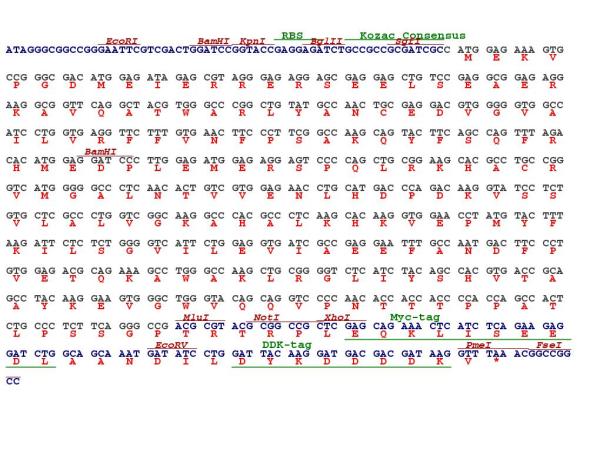

Cloning scheme for MR201816
Circular map for MR201816
