Cxcl5 (NM_009141) Mouse Tagged ORF Clone

  • TrueORF®
SKU
MR200761
Cxcl5 (Myc-DDK-tagged) - Mouse chemokine (C-X-C motif) ligand 5 (Cxcl5)
  $225.00
In Stock*
Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Cxcl5
Synonyms AMCF; AMCF-II; Cxcl; Cxcl6; ENA-; ENA-78; GCP-; GCP-2; L; LIX; Scyb; Scyb5; Scyb6
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

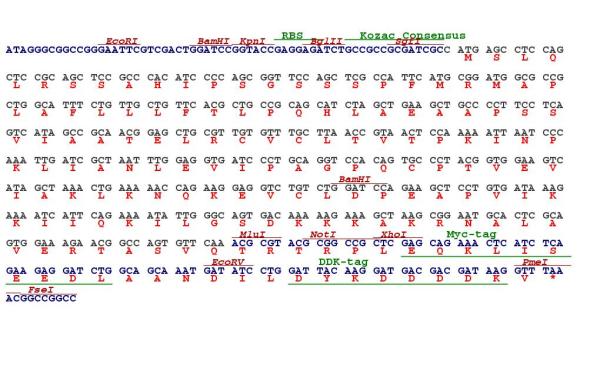

ORF Nucleotide Sequence
>MR200761 representing NM_009141
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGAGCCTCCAGCTCCGCAGCTCCGCCCACATCCCCAGCGGTTCCAGCTCGCCATTCATGCGGATGGCGC
CGCTGGCATTTCTGTTGCTGTTCACGCTGCCGCAGCATCTAGCTGAAGCTGCCCCTTCCTCAGTCATAGC
CGCAACGGAGCTGCGTTGTGTTTGCTTAACCGTAACTCCAAAAATTAATCCCAAATTGATCGCTAATTTG
GAGGTGATCCCTGCAGGTCCACAGTGCCCTACGGTGGAAGTCATAGCTAAACTGAAAAACCAGAAGGAGG
TCTGTCTGGATCCAGAAGCTCCTGTGATAAAGAAAATCATTCAGAAAATATTGGGCAGTGACAAAAAGAA
AGCTAAGCGGAATGCACTCGCAGTGGAAAGAACGGCCAGTGTTCAA


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>MR200761 representing NM_009141
Red=Cloning site Green=Tags(s)

MSLQLRSSAHIPSGSSSPFMRMAPLAFLLLFTLPQHLAEAAPSSVIAATELRCVCLTVTPKINPKLIANL
EVIPAGPQCPTVEVIAKLKNQKEVCLDPEAPVIKKIIQKILGSDKKKAKRNALAVERTASVQ

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_009141
ORF Size 396 bp
OTI Disclaimer Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.

The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_009141.1
RefSeq Size 1655 bp
RefSeq ORF 399 bp
Locus ID 20311
UniProt ID P50228
Cytogenetics 5 44.78 cM
MW 14.7 kDa
Summary This gene encodes a protein that is a member of the CXC subfamily of chemokines. Chemokines, which recruit and activate leukocytes, are classified by function (inflammatory or homeostatic) or by structure. This protein is proposed to bind the G-protein coupled receptor chemokine (C-X-C motif) receptor 2 to recruit neutrophils and to have homeostatic and inflammatory functions. In mouse, deficiency of this gene is associated with increased lung inflammation that is neutrophil-dependent. provided by RefSeq, May 2013
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_009141" in other vectors (4)
SKU Description Size Price
MC202149 Cxcl5 (untagged) - Mouse chemokine (C-X-C motif) ligand 5 (Cxcl5), (10ug) 10 ug
$225.00
MG200761 Cxcl5 (tGFP-tagged) - Mouse chemokine (C-X-C motif) ligand 5 (Cxcl5) 10 ug
$425.00
MR200761L3 Lenti ORF clone of Cxcl5 (Myc-DDK-tagged) - Mouse chemokine (C-X-C motif) ligand 5 (Cxcl5) 10 ug
$525.00
MR200761L4 Lenti ORF clone of Cxcl5 (mGFP-tagged) - Mouse chemokine (C-X-C motif) ligand 5 (Cxcl5) 10 ug
$525.00

Plasmid Map for MR200761

Download sequence for

Cloning scheme for MR200761

Circular map for MR200761

file-alt Citations

IL-17/CXCL5 signaling within the oligovascular niche mediates human and mouse white matter injury
Xiao, Kumar, Komuro et al
Cell Rep (2022) 41 (12), 111848 DOI: 10.1016/j.celrep.2022.111848
Cited by 17
AI Summary: OriGene's murine CXCL5 plasmid (#MR200761) was used to overexpress CXCL5 in experimental models, enabling the study of its role in white matter injury and oligovascular signaling pathways.
Snippet: fiber diameter, axon diameter, myelin thickness, and g-ratio. Lentiviral injection A plasmid containing the open reading frame of the murine CXCL5 sequence with a 3′ stop codon was purchased from Origene (#MR200761). The pCDH-EF1-FLEX-EGFP-CMV-2A-TagBFP2-SC dual promoter lentiviral backbone was created by subcloning the FLEX-GFP sequence between the loxP sites from the pAAV-FLEX-GFP vector (Ad
Endothelial CXCL5 negatively regulates myelination and repair after white matter stroke
Xiao, Kumar, Burguet et al
bioRxiv (2019)
Snippet: A plasmid containing the open reading frame of the murine CXCL5 sequence with a 3’ stop codon was purchased from Origene (#MR200761). The pCDH-EF1-FLEX-EGFP-CMV2A-TagBFP2-SC dual promoter lentiviral backbone was created by subcloning the FLEX-GFP sequence between the loxP sites from the pAAV-FLEX-GFP vector (Addgene #28304) into the
Showing 1-2 of 2 papers.
