SCN4B (NM_001142348) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RG227554
SCN4B (tGFP-tagged) - Human sodium channel, voltage-gated, type IV, beta (SCN4B), transcript variant 2
ORF Plasmid:
tGFP DDK
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
  $365.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA326109 Rabbit polyclonal SCN4B antibody
100 ul
$380.00
TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "SCN4B or NM_001142348"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol SCN4B
Synonyms ATFB17; LQT10; Navbeta4
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG227554 representing NM_001142348
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCCCGGGGCTGGGGACGGAGGCAAAGCCCCGGCGAGATGGCTGGGCACTGGGCTTTTGGTGGAAGAAG
TGGACAACACAGTGACACTCATCATCCTGGCTGTCGTGGGCGGGGTCATCGGGCTCCTCATCCTCATCCT
GCTGATCAAGAAACTCATCATCTTCATCCTGAAGAAGACTCGGGAGAAGAAGAAGGAGTGTCTCGTGAGC
TCCTCGGGGAATGACAACACGGAGAACGGCTTGCCTGGCTCCAAGGCAGAGGAGAAACCACCTTCAAAAG
TG

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG227554 representing NM_001142348
Red=Cloning site Green=Tags(s)

MPGAGDGGKAPARWLGTGLLVEEVDNTVTLIILAVVGGVIGLLILILLIKKLIIFILKKTREKKKECLVS
SSGNDNTENGLPGSKAEEKPPSKV

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001142348
ORF Size 282 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001142348.2
RefSeq Size 4177 bp
RefSeq ORF 285 bp
Locus ID 6330
UniProt ID Q8IWT1
Cytogenetics 11q23.3
Protein Families Ion Channels: Sodium, Transmembrane
Summary The protein encoded by this gene is one of several sodium channel beta subunits. These subunits interact with voltage-gated alpha subunits to change sodium channel kinetics. The encoded transmembrane protein forms interchain disulfide bonds with SCN2A. Defects in this gene are a cause of long QT syndrome type 10 (LQT10). Three protein-coding and one non-coding transcript variant have been found for this gene.provided by RefSeq, Mar 2009
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001142348" in other vectors (4)
SKU Description Size Price
RC227554 SCN4B (Myc-DDK-tagged)-Human sodium channel, voltage-gated, type IV, beta (SCN4B), transcript variant 2 10 ug
$165.00
RC227554L3 Lenti-ORF clone of SCN4B (Myc-DDK-tagged)-Human sodium channel, voltage-gated, type IV, beta (SCN4B), transcript variant 2 10 ug
$465.00
RC227554L4 Lenti-ORF clone of SCN4B (mGFP-tagged)-Human sodium channel, voltage-gated, type IV, beta (SCN4B), transcript variant 2 10 ug
$465.00
SC325448 SCN4B (untagged)-Human sodium channel, voltage-gated, type IV, beta (SCN4B), transcript variant 2 10 ug
$150.00

Plasmid Map for RG227554

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

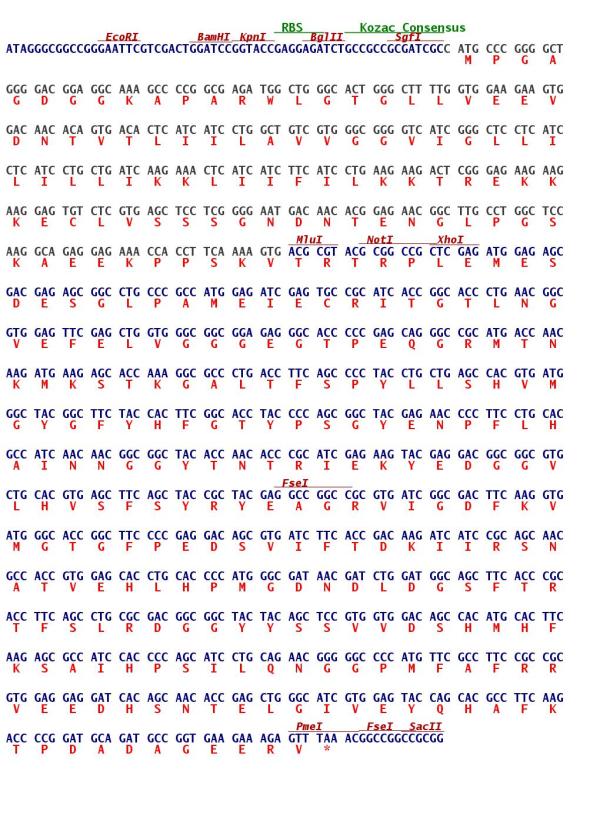

Cloning scheme for RG227554
