PDGF beta (PDGFB) (NM_033016) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RG222432
PDGFB (tGFP-tagged) - Human platelet-derived growth factor beta polypeptide (PDGFB), transcript variant 2
ORF Plasmid:
tGFP DDK
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $500.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "PDGF beta or NM_033016"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol PDGF beta
Synonyms c-sis; IBGC5; PDGF-2; PDGF2; SIS; SSV
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG222432 representing NM_033016
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTTTATCATGGGCCTCGGGGACCCCATTCCCGAGGAGCTTTATGAGATGCTGAGTGACCACTCGATCC
GCTCCTTTGATGATCTCCAACGCCTGCTGCACGGAGACCCCGGAGAGGAAGATGGGGCCGAGTTGGACCT
GAACATGACCCGCTCCCACTCTGGAGGCGAGCTGGAGAGCTTGGCTCGTGGAAGAAGGAGCCTGGGTTCC
CTGACCATTGCTGAGCCGGCCATGATCGCCGAGTGCAAGACGCGCACCGAGGTGTTCGAGATCTCCCGGC
GCCTCATAGACCGCACCAACGCCAACTTCCTGGTGTGGCCGCCCTGTGTGGAGGTGCAGCGCTGCTCCGG
CTGCTGCAACAACCGCAACGTGCAGTGCCGCCCCACCCAGGTGCAGCTGCGACCTGTCCAGGTGAGAAAG
ATCGAGATTGTGCGGAAGAAGCCAATCTTTAAGAAGGCCACGGTGACGCTGGAAGACCACCTGGCATGCA
AGTGTGAGACAGTGGCAGCTGCACGGCCTGTGACCCGAAGCCCGGGGGGTTCCCAGGAGCAGCGAGCCAA
AACGCCCCAAACTCGGGTGACCATTCGGACGGTGCGAGTCCGCCGGCCCCCCAAGGGCAAGCACCGGAAA
TTCAAGCACACGCATGACAAGACGGCACTGAAGGAGACCCTTGGAGCC

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG222432 representing NM_033016
Red=Cloning site Green=Tags(s)

MFIMGLGDPIPEELYEMLSDHSIRSFDDLQRLLHGDPGEEDGAELDLNMTRSHSGGELESLARGRRSLGS
LTIAEPAMIAECKTRTEVFEISRRLIDRTNANFLVWPPCVEVQRCSGCCNNRNVQCRPTQVQLRPVQVRK
IEIVRKKPIFKKATVTLEDHLACKCETVAAARPVTRSPGGSQEQRAKTPQTRVTIRTVRVRRPPKGKHRK
FKHTHDKTALKETLGA

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_033016
ORF Size 678 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_033016.3, NP_148937.1
RefSeq Size 2378 bp
RefSeq ORF 681 bp
Locus ID 5155
UniProt ID P01127
Cytogenetics 22q13.1
Protein Families Druggable Genome
Protein Pathways Cytokine-cytokine receptor interaction, Focal adhesion, Gap junction, Glioma, MAPK signaling pathway, Melanoma, Pathways in cancer, Prostate cancer, Regulation of actin cytoskeleton, Renal cell carcinoma
Summary This gene encodes a member of the protein family comprised of both platelet-derived growth factors (PDGF) and vascular endothelial growth factors (VEGF). The encoded preproprotein is proteolytically processed to generate platelet-derived growth factor subunit B, which can homodimerize, or alternatively, heterodimerize with the related platelet-derived growth factor subunit A. These proteins bind and activate PDGF receptor tyrosine kinases, which play a role in a wide range of developmental processes. Mutations in this gene are associated with meningioma. Reciprocal translocations between chromosomes 22 and 17, at sites where this gene and that for collagen type 1, alpha 1 are located, are associated with dermatofibrosarcoma protuberans, a rare skin tumor. Alternative splicing results in multiple transcript variants. provided by RefSeq, Oct 2015
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_033016" in other vectors (4)
SKU Description Size Price
RC222432 PDGFB (Myc-DDK-tagged)-Human platelet-derived growth factor beta polypeptide (PDGFB), transcript variant 2 10 ug
$300.00
RC222432L3 Lenti ORF clone of Human platelet-derived growth factor beta polypeptide (PDGFB), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC222432L4 Lenti ORF clone of Human platelet-derived growth factor beta polypeptide (PDGFB), transcript variant 2, mGFP tagged 10 ug
$600.00
SC305533 PDGFB (untagged)-Human platelet-derived growth factor beta polypeptide (PDGFB), transcript variant 2 10 ug
$330.00

Plasmid Map for RG222432

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

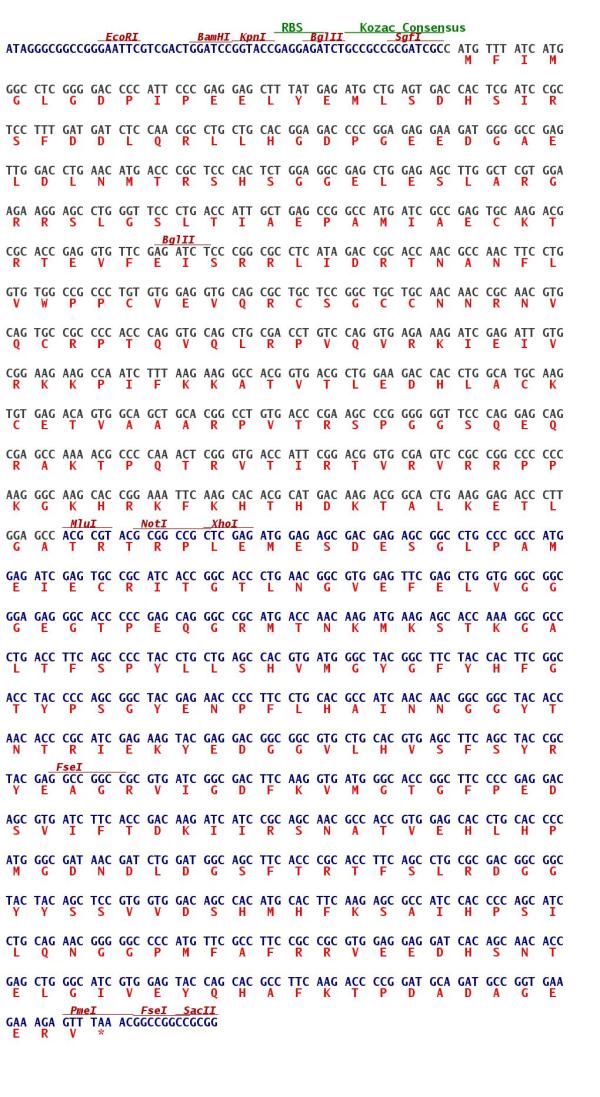

Cloning scheme for RG222432
Circular map for RG222432

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
