SHARPIN (NM_030974) Human Tagged ORF Clone

SKU RG222012

SHARPIN (tGFP-tagged) - Human SHANK-associated RH domain interactor (SHARPIN), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SHARPIN
• Synonyms: SIPL1
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

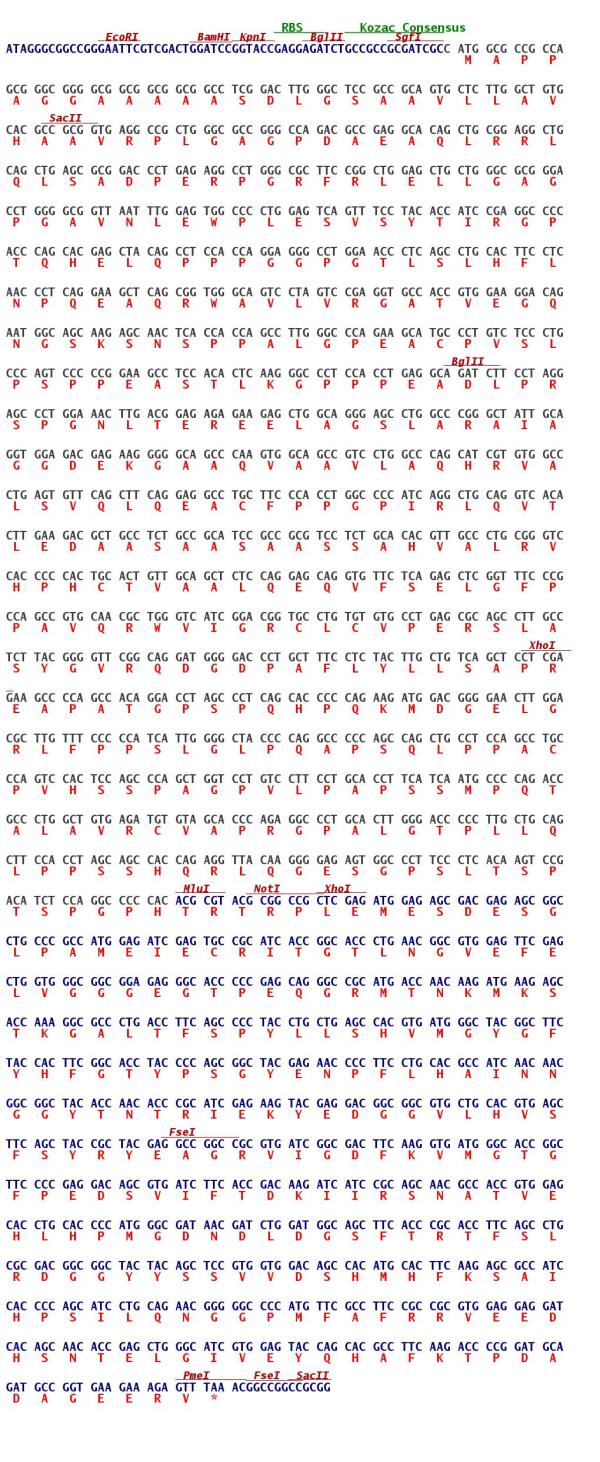

  ORF Nucleotide Sequence

  >RG222012 representing NM_030974; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGCCGCCAGCGGGCGGGGCGGCGGCGGCGGCCTCGGACTTGGGCTCCGCCGCAGTGCTCTTGGCTG; TGCACGCCGCGGTGAGGCCGCTGGGCGCCGGGCCAGACGCCGAGGCACAGCTGCGGAGGCTGCAGCTGAG; CGCGGACCCTGAGAGGCCTGGGCGCTTCCGGCTGGAGCTGCTGGGCGCGGGACCTGGGGCGGTTAATTTG; GAGTGGCCCCTGGAGTCAGTTTCCTACACCATCCGAGGCCCCACCCAGCACGAGCTACAGCCTCCACCAG; GAGGGCCTGGAACCCTCAGCCTGCACTTCCTCAACCCTCAGGAAGCTCAGCGGTGGGCAGTCCTAGTCCG; AGGTGCCACCGTGGAAGGACAGAATGGCAGCAAGAGCAACTCACCACCAGCCTTGGGCCCAGAAGCATGC; CCTGTCTCCCTGCCCAGTCCCCCGGAAGCCTCCACACTCAAGGGCCCTCCACCTGAGGCAGATCTTCCTA; GGAGCCCTGGAAACTTGACGGAGAGAGAAGAGCTGGCAGGGAGCCTGGCCCGGGCTATTGCAGGTGGAGA; CGAGAAGGGGGCAGCCCAAGTGGCAGCCGTCCTGGCCCAGCATCGTGTGGCCCTGAGTGTTCAGCTTCAG; GAGGCCTGCTTCCCACCTGGCCCCATCAGGCTGCAGGTCACACTTGAAGACGCTGCCTCTGCCGCATCCG; CCGCGTCCTCTGCACACGTTGCCCTGCGGGTCCACCCCCACTGCACTGTTGCAGCTCTCCAGGAGCAGGT; GTTCTCAGAGCTCGGTTTCCCGCCAGCCGTGCAACGCTGGGTCATCGGACGGTGCCTGTGTGTGCCTGAG; CGCAGCCTTGCCTCTTACGGGGTTCGGCAGGATGGGGACCCTGCTTTCCTCTACTTGCTGTCAGCTCCTC; GAGAAGCCCCAGCCACAGGACCTAGCCCTCAGCACCCCCAGAAGATGGACGGGGAACTTGGACGCTTGTT; TCCCCCATCATTGGGGCTACCCCAGGCCCCCAGCCAGCTGCCTCCAGCCTGCCCAGTCCACTCCAGCCCA; GCTGGTCCTGTCCTTCCTGCACCTTCATCAATGCCCCAGACCGCCCTGGCTGTGAGATGTGTAGCACCCA; GAGGCCCTGCACTTGGGACCCCCTTGCTGCAGCTTCCACCTAGCAGCCACCAGAGGTTACAAGGGGAGAG; TGGCCCTTCCCTCACAAGTCCGACATCTCCAGGCCCCCAC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG222012 representing NM_030974; Red=Cloning site Green=Tags(s); ; MAPPAGGAAAAASDLGSAAVLLAVHAAVRPLGAGPDAEAQLRRLQLSADPERPGRFRLELLGAGPGAVNL; EWPLESVSYTIRGPTQHELQPPPGGPGTLSLHFLNPQEAQRWAVLVRGATVEGQNGSKSNSPPALGPEAC; PVSLPSPPEASTLKGPPPEADLPRSPGNLTEREELAGSLARAIAGGDEKGAAQVAAVLAQHRVALSVQLQ; EACFPPGPIRLQVTLEDAASAASAASSAHVALRVHPHCTVAALQEQVFSELGFPPAVQRWVIGRCLCVPE; RSLASYGVRQDGDPAFLYLLSAPREAPATGPSPQHPQKMDGELGRLFPPSLGLPQAPSQLPPACPVHSSP; AGPVLPAPSSMPQTALAVRCVAPRGPALGTPLLQLPPSSHQRLQGESGPSLTSPTSPGPH; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_030974
• ORF Size: 1230 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_030974.2, NP_112236.2
• RefSeq Size: 1765 bp
• RefSeq ORF: 1164 bp
• Locus ID: 81858
• UniProt ID: Q9H0F6
• Cytogenetics: 8q24.3
• Domains: zf-RanBP
• Protein Families: Druggable Genome
• Summary: Component of the LUBAC complex which conjugates linear polyubiquitin chains in a head-to-tail manner to substrates and plays a key role in NF-kappa-B activation and regulation of inflammation. LUBAC conjugates linear polyubiquitin to IKBKG and RIPK1 and is involved in activation of the canonical NF-kappa-B and the JNK signaling pathways. Linear ubiquitination mediated by the LUBAC complex interferes with TNF-induced cell death and thereby prevents inflammation. LUBAC is recruited to the TNF-R1 signaling complex (TNF-RSC) following polyubiquitination of TNF-RSC components by BIRC2 and/or BIRC3 and to conjugate linear polyubiquitin to IKBKG and possibly other components contributing to the stability of the complex. Together with OTULIN, the LUBAC complex regulates the canonical Wnt signaling during angiogenesis.[UniProtKB/Swiss-Prot Function]
