Adducin 2 (ADD2) (NM_017482) Human Tagged ORF Clone

SKU RG212102

ADD2 (tGFP-tagged) - Human adducin 2 (beta) (ADD2), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Adducin 2
• Synonyms: ADDB
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG212102 representing NM_017482; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGAGCGAAGAGACGGTCCCCGAGGCTGCCTCGCCGCCGCCCCCGCAGGGGCAGCCTTACTTTGACCGCT; TCTCAGAGGACGACCCCGAGTACATGCGCCTTCGCAACCGGGCGGCGGACCTGCGGCAGGACTTCAACCT; GATGGAGCAGAAGAAGCGCGTCACCATGATCCTGCAGAGTCCCTCTTTCAGGGAGGAGCTGGAAGGCCTC; ATCCAGGAGCAGATGAAGAAGGGGAACAACTCCTCCAACATCTGGGCCCTGCGACAGATCGCGGACTTCA; TGGCCAGCACCTCCCACGCAGTCTTCCCGACATCTTCCATGAATGTCTCCATGATGACGCCTATCAATGA; CCTCCACACAGCTGACTCCCTGAACCTGGCCAAAGGGGAGCGGCTCATGCGGTGCAAGATCAGCAGTGTC; TACCGACTCCTGGACCTCTATGGCTGGGCCCAGCTGAGTGACACCTATGTCACGTTGAGAGTCAGCAAGG; AGCAGGACCACTTCCTGATCAGCCCTAAGGGAGTTTCTTGCAGTGAAGTCACAGCGTCCAGCCTGATCAA; GGTGAACATTCTGGGAGAGGTGGTGGAGAAGGGCAGCAGCTGCTTCCCAGTGGACACCACAGGCTTCTGT; CTGCACTCGGCCATCTATGCAGCGAGGCCCGACGTGCGCTGCATCATCCACCTGCACACACCGGCCACAG; CAGCGGTGTCGGCCATGAAGTGGGGCCTCCTGCCTGTCTCCCACAATGCCCTGCTGGTGGGGGACATGGC; CTATTATGACTTCAATGGGGAAATGGAGCAGGAAGCCGATCGGATCAACCTGCAGAAGTGCCTTGGACCC; ACCTGCAAGATCCTGGTGCTAAGAAACCATGGAGTGGTTGCTCTGGGTGACACGGTAGAGGAGGCATTTT; ACAAGATCTTCCACCTGCAGGCTGCATGTGAGATACAGGTGTCGGCTCTGTCCAGTGCCGGGGGAGTGGA; GAACCTCATCCTCCTGGAGCAGGAGAAGCACCGGCCCCATGAGGTGGGCTCCGTGCAGTGGGCCGGGAGC; ACCTTTGGGCCTATGCAGAAGAGTCGGCTGGGGGAGCATGAGTTTGAGGCCCTCATGAGGATGCTGGACA; ACCTGGGCTACAGAACAGGTTACACGTATCGCCACCCCTTTGTTCAAGAGAAAACCAAACACAAAAGTGA; GGTGGAGATTCCAGCCACGGTCACAGCCTTCGTGTTTGAGGAGGACGGTGCCCCGGTGCCCGCCCTGCGA; CAGCATGCCCAGAAGCAGCAGAAGGAGAAGACCCGCTGGCTCAATACGCCCAACACCTACCTGCGGGTCA; ATGTGGCCGATGAGGTCCAGAGGAGCATGGGCAGCCCCCGACCCAAGACCACGTGGATGAAGGCTGACGA; GGTGGAGAAATCCAGCAGTGGCATGCCGATTCGCATCGAAAACCCAAACCAATTTGTGCCTCTCTATACT; GACCCCCAGGAAGTACTGGAGATGAGGAACAAGATTCGAGAACAAAACCGACAAGATGTGAAGTCAGCGG; GGCCTCAGTCCCAGCTCCTGGCGAGCGTCATTGCCGAGAAGAGCCGAAGCCCGGTAGAGCAGAGGCTGCC; CCTGACTGGCGGGGAAACGTGTTTGCCTTGCCTTCGGGGTCTTGTGCCTGGGGCTGGGTTGCAGGACCCC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG212102 representing NM_017482; Red=Cloning site Green=Tags(s); ; MSEETVPEAASPPPPQGQPYFDRFSEDDPEYMRLRNRAADLRQDFNLMEQKKRVTMILQSPSFREELEGL; IQEQMKKGNNSSNIWALRQIADFMASTSHAVFPTSSMNVSMMTPINDLHTADSLNLAKGERLMRCKISSV; YRLLDLYGWAQLSDTYVTLRVSKEQDHFLISPKGVSCSEVTASSLIKVNILGEVVEKGSSCFPVDTTGFC; LHSAIYAARPDVRCIIHLHTPATAAVSAMKWGLLPVSHNALLVGDMAYYDFNGEMEQEADRINLQKCLGP; TCKILVLRNHGVVALGDTVEEAFYKIFHLQAACEIQVSALSSAGGVENLILLEQEKHRPHEVGSVQWAGS; TFGPMQKSRLGEHEFEALMRMLDNLGYRTGYTYRHPFVQEKTKHKSEVEIPATVTAFVFEEDGAPVPALR; QHAQKQQKEKTRWLNTPNTYLRVNVADEVQRSMGSPRPKTTWMKADEVEKSSSGMPIRIENPNQFVPLYT; DPQEVLEMRNKIREQNRQDVKSAGPQSQLLASVIAEKSRSPVEQRLPLTGGETCLPCLRGLVPGAGLQDP; ; TRTRPLE - GFP Tag - V

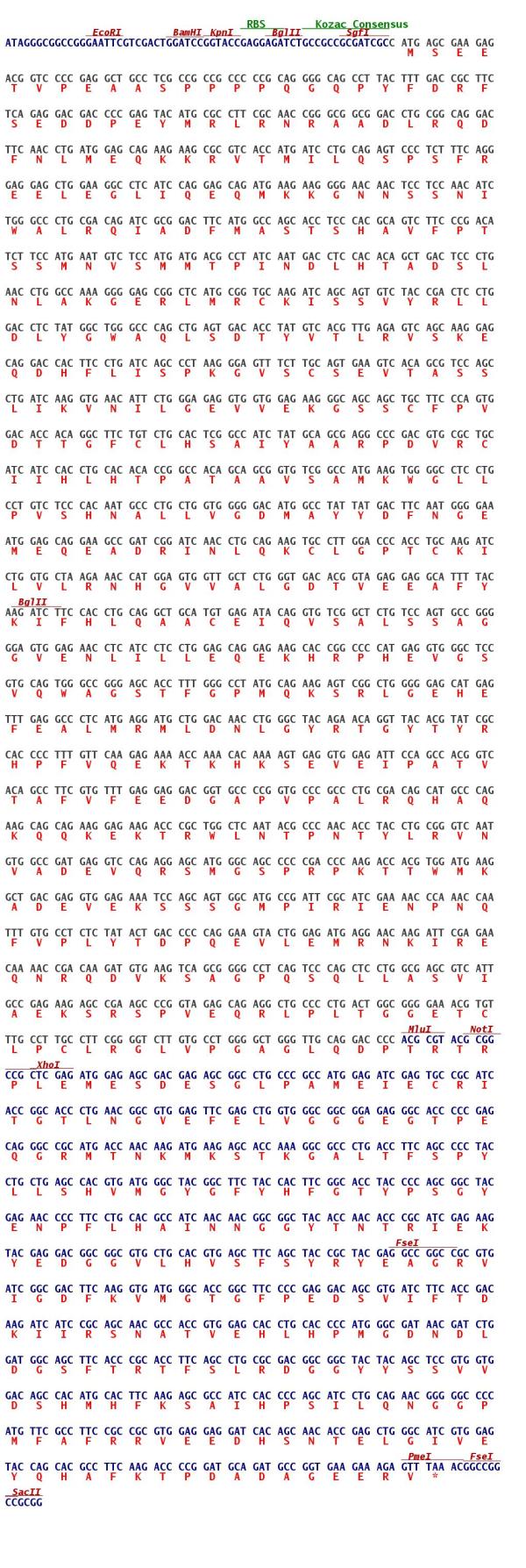

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_017482
• ORF Size: 1680 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_017482.1, NP_059516.1
• RefSeq Size: 2775 bp
• RefSeq ORF: 1680 bp
• Locus ID: 119
• UniProt ID: P35612
• Cytogenetics: 2p13.3
• Domains: Aldolase_II
• Summary: Adducins are heteromeric proteins composed of different subunits referred to as adducin alpha, beta and gamma. The three subunits are encoded by distinct genes and belong to a family of membrane skeletal proteins involved in the assembly of spectrin-actin network in erythrocytes and at sites of cell-cell contact in epithelial tissues. While adducins alpha and gamma are ubiquitously expressed, the expression of adducin beta is restricted to brain and hematopoietic tissues. Adducin, originally purified from human erythrocytes, was found to be a heterodimer of adducins alpha and beta. Polymorphisms resulting in amino acid substitutions in these two subunits have been associated with the regulation of blood pressure in an animal model of hypertension. Heterodimers consisting of alpha and gamma subunits have also been described. Structurally, each subunit is comprised of two distinct domains. The amino-terminal region is protease resistant and globular in shape, while the carboxy-terminal region is protease sensitive. The latter contains multiple phosphorylation sites for protein kinase C, the binding site for calmodulin, and is required for association with spectrin and actin. Alternatively spliced transcript variants have been described. [provided by RefSeq, Jun 2010]
