E2F4 (NM_001950) Human Tagged ORF Clone

SKU RG207699

E2F4 (tGFP-tagged) - Human E2F transcription factor 4, p107/p130-binding (E2F4)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: E2F4
• Synonyms: E2F-4
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

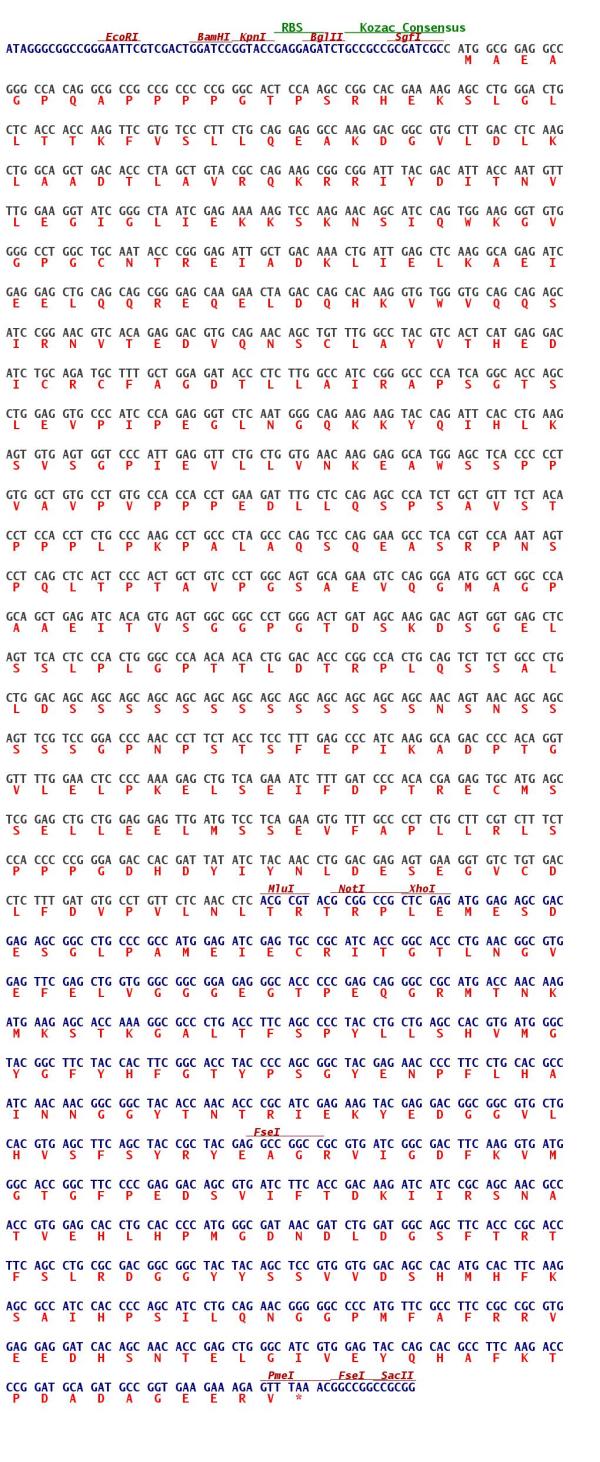

  ORF Nucleotide Sequence

  >RG207699 representing NM_001950; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGAGGCCGGGCCACAGGCGCCGCCGCCCCCGGGCACTCCAAGCCGGCACGAAAAGAGCCTGGGAC; TGCTCACCACCAAGTTCGTGTCCCTTCTGCAGGAGGCCAAGGACGGCGTGCTTGACCTCAAGCTGGCAGC; TGACACCCTAGCTGTACGCCAGAAGCGGCGGATTTACGACATTACCAATGTTTTGGAAGGTATCGGGCTA; ATCGAGAAAAAGTCCAAGAACAGCATCCAGTGGAAGGGTGTGGGGCCTGGCTGCAATACCCGGGAGATTG; CTGACAAACTGATTGAGCTCAAGGCAGAGATCGAGGAGCTGCAGCAGCGGGAGCAAGAACTAGACCAGCA; CAAGGTGTGGGTGCAGCAGAGCATCCGGAACGTCACAGAGGACGTGCAGAACAGCTGTTTGGCCTACGTC; ACTCATGAGGACATCTGCAGATGCTTTGCTGGAGATACCCTCTTGGCCATCCGGGCCCCATCAGGCACCA; GCCTGGAGGTGCCCATCCCAGAGGGTCTCAATGGGCAGAAGAAGTACCAGATTCACCTGAAGAGTGTGAG; TGGTCCCATTGAGGTTCTGCTGGTGAACAAGGAGGCATGGAGCTCACCCCCTGTGGCTGTGCCTGTGCCA; CCACCTGAAGATTTGCTCCAGAGCCCATCTGCTGTTTCTACACCTCCACCTCTGCCCAAGCCTGCCCTAG; CCCAGTCCCAGGAAGCCTCACGTCCAAATAGTCCTCAGCTCACTCCCACTGCTGTCCCTGGCAGTGCAGA; AGTCCAGGGAATGGCTGGCCCAGCAGCTGAGATCACAGTGAGTGGCGGCCCTGGGACTGATAGCAAGGAC; AGTGGTGAGCTCAGTTCACTCCCACTGGGCCCAACAACACTGGACACCCGGCCACTGCAGTCTTCTGCCC; TGCTGGACAGCAGCAGCAGCAGCAGCAGCAGCAGCAGCAGCAGCAGCAACAGTAACAGCAGCAGTTCGTC; CGGACCCAACCCTTCTACCTCCTTTGAGCCCATCAAGGCAGACCCCACAGGTGTTTTGGAACTCCCCAAA; GAGCTGTCAGAAATCTTTGATCCCACACGAGAGTGCATGAGCTCGGAGCTGCTGGAGGAGTTGATGTCCT; CAGAAGTGTTTGCCCCTCTGCTTCGTCTTTCTCCACCCCCGGGAGACCACGATTATATCTACAACCTGGA; CGAGAGTGAAGGTGTCTGTGACCTCTTTGATGTGCCTGTTCTCAACCTC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG207699 representing NM_001950; Red=Cloning site Green=Tags(s); ; MAEAGPQAPPPPGTPSRHEKSLGLLTTKFVSLLQEAKDGVLDLKLAADTLAVRQKRRIYDITNVLEGIGL; IEKKSKNSIQWKGVGPGCNTREIADKLIELKAEIEELQQREQELDQHKVWVQQSIRNVTEDVQNSCLAYV; THEDICRCFAGDTLLAIRAPSGTSLEVPIPEGLNGQKKYQIHLKSVSGPIEVLLVNKEAWSSPPVAVPVP; PPEDLLQSPSAVSTPPPLPKPALAQSQEASRPNSPQLTPTAVPGSAEVQGMAGPAAEITVSGGPGTDSKD; SGELSSLPLGPTTLDTRPLQSSALLDSSSSSSSSSSSSSNSNSSSSSGPNPSTSFEPIKADPTGVLELPK; ELSEIFDPTRECMSSELLEELMSSEVFAPLLRLSPPPGDHDYIYNLDESEGVCDLFDVPVLNL; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001950
• ORF Size: 1239 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001950.4
• RefSeq Size: 2100 bp
• RefSeq ORF: 1242 bp
• Locus ID: 1874
• UniProt ID: Q16254
• Cytogenetics: 16q22.1
• Domains: E2F_TDP
• Protein Families: Druggable Genome, Transcription Factors
• Protein Pathways: Cell cycle, TGF-beta signaling pathway
• Summary: The protein encoded by this gene is a member of the E2F family of transcription factors. The E2F family plays a crucial role in the control of cell cycle and action of tumor suppressor proteins and is also a target of the transforming proteins of small DNA tumor viruses. The E2F proteins contain several evolutionally conserved domains found in most members of the family. These domains include a DNA binding domain, a dimerization domain which determines interaction with the differentiation regulated transcription factor proteins (DP), a transactivation domain enriched in acidic amino acids, and a tumor suppressor protein association domain which is embedded within the transactivation domain. This protein binds to all three of the tumor suppressor proteins pRB, p107 and p130, but with higher affinity to the last two. It plays an important role in the suppression of proliferation-associated genes, and its gene mutation and increased expression may be associated with human cancer. [provided by RefSeq, Jul 2008]
