NDUFB4 (NM_004547) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RG201574
NDUFB4 (tGFP-tagged) - Human NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 4, 15kDa (NDUFB4), nuclear gene encoding mitochondrial protein, transcript variant 1
ORF Plasmid:
tGFP DDK
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $489.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA379012 NDUFB4 Rabbit polyclonal Antibody
100 ul
$475.00
TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "NDUFB4 or NM_004547"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol NDUFB4
Synonyms B15; CI-B15
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG201574 representing NM_004547
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTCGTTCCCAAAGTATAAGCCGTCGAGCCTGCGCACTCTGCCTGAGACCCTCGACCCAGCCGAATACA
ACATATCTCCGGAAACCCGGCGGGCGCAAGCCGAGCGGTTGGCCATAAGAGCCCAGCTGAAACGAGAGTA
CCTGCTTCAGTACAACGATCCCAACCGCCGAGGGCTCATCGAAAATCCTGCCTTGCTTCGTTGGGCCTAT
GCAAGAACAATAAATGTCTATCCTAATTTCAGACCCACTCCTAAAAACTCACTCATGGGAGCTCTGTGTG
GATTTGGGCCCCTCATCTTCATTTATTATATTATCAAAACTGAGAGGGATAGGAAAGAAAAACTTATCCA
GGAAGGAAAATTGGATCGAACATTTCACCTCTCATAT

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG201574 representing NM_004547
Red=Cloning site Green=Tags(s)

MSFPKYKPSSLRTLPETLDPAEYNISPETRRAQAERLAIRAQLKREYLLQYNDPNRRGLIENPALLRWAY
ARTINVYPNFRPTPKNSLMGALCGFGPLIFIYYIIKTERDRKEKLIQEGKLDRTFHLSY

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_004547
ORF Size 387 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_004547.6
RefSeq Size 541 bp
RefSeq ORF 390 bp
Locus ID 4710
UniProt ID O95168
Cytogenetics 3q13.33
Protein Families Transmembrane
Protein Pathways Alzheimer's disease, Huntington's disease, Metabolic pathways, Oxidative phosphorylation, Parkinson's disease
Summary This gene encodes a non-catalytic subunit of the multisubunit NADH:ubiquinone oxidoreductase, the first enzyme complex in the mitochondrial electron transport chain (complex I). Mammalian complex I is composed of 45 different subunits and transfers electrons from NADH to ubiquinone. provided by RefSeq, Dec 2009
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_004547" in other vectors (4)
SKU Description Size Price
RC201574 NDUFB4 (Myc-DDK-tagged)-Human NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 4, 15kDa (NDUFB4), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$150.00
RC201574L3 Lenti ORF clone of Human NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 4, 15kDa (NDUFB4), nuclear gene encoding mitochondrial protein, transcript variant 1, Myc-DDK-tagged 10 ug
$450.00
RC201574L4 Lenti ORF clone of Human NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 4, 15kDa (NDUFB4), nuclear gene encoding mitochondrial protein, transcript variant 1, mGFP tagged 10 ug
$450.00
SC117304 NDUFB4 (untagged)-Human NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 4, 15kDa (NDUFB4), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$150.00

Plasmid Map for RG201574

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

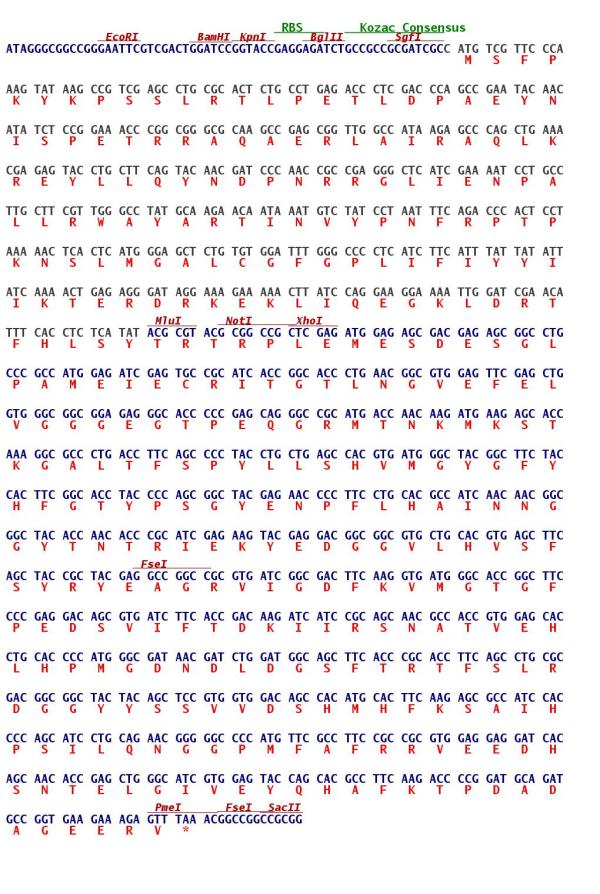

Cloning scheme for RG201574
Circular map for RG201574

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
