Zyxin (ZYX) (NM_001010972) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RG200960
ZYX (tGFP-tagged) - Human zyxin (ZYX), transcript variant 2
ORF Plasmid:
tGFP DDK
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
  $732.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA383635 Zyxin Rabbit polyclonal Antibody
100 ul
$410.00
TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "Zyxin or NM_001010972"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol Zyxin
Synonyms ESP-2; HED-2
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG200960 representing NM_001010972
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCGGCCCCCCGCCCGTCTCCCGCGATCTCCGTTTCGGTCTCGGCTCCGGCTTTTTACGCCCCGCAGA
AGAAGTTCGGCCCTGTGGTGGCCCCAAAGCCCAAAGTGAATCCCTTCCGGCCCGGGGACAGCGAGCCTCC
CCCGGCACCCGGGGCCCAGCGCGCACAGATGGGCCGGGTGGGCGAGATTCCCCCGCCGCCCCCGGAAGAC
TTTCCCCTGCCTCCACCTCCCCTTGCTGGGGATGGCGACGATGCAGAGGGTGCTCTGGGAGGTGCCTTCC
CGCCGCCCCCTCCCCCGATCGAGGAATCATTTCCCCCTGCGCCTCTGGAGGAGGAGATCTTCCCTTCCCC
GCCGCCTCCTCCGGAGGAGGAGGGAGGGCCTGAGGCCCCCATACCGCCCCCACCACAGCCCAGGGAGAAG
GTGAGCAGTATTGATTTGGAGATCGACTCTCTGTCCTCACTGCTGGATGACATGACCAAGAATGATCCTT
TCAAAGCCCGGGTGTCATCTGGATATGTGCCCCCACCAGTGGCCACTCCATTCAGTTCCAAGTCCAGTAC
CAAGCCTGCAGCCGGGGGCACAGCACCCCTGCCTCCTTGGAAGTCCCCTTCCAGCTCCCAGCCTCTGCCC
CAGGTTCCGGCTCCGGCTCAGAGCCAGACACAGTTCCATGTTCAGCCCCAGCCCCAGCCCAAGCCTCAGG
TCCAACTCCATGTCCAGTCCCAGACCCAGCCTGTGTCTTTGGCTAACACCCAGCCCCGAGGGCCCCCAGC
CTCATCTCCGGCTCCAGCCCCTAAGTTTTCTCCAGTGACTCCTAAGTTTACTCCTGTGGCTTCCAAGTTC
AGTCCTGGAGCCCCAGGTGGATCTGGGTCACAACCAAATCAAAAATTGGGGCACCCCGAAGCTCTTTCTG
CTGGCACAGGCTCCCCTCAACCTCCCAGCTTCACCTATGCCCAGCAGAGGGAGAAGCCCCGAGTGCAGGA
GAAGCAGCACCCCGTGCCCCCACCGGCTCAGAACCAAAACCAGGTGCGCTCCCCTGGGGCCCCAGGGCCC
CTGACTCTGAAGGAGGTGGAGGAGCTGGAGCAGCTGACCCAGCAGCTAATGCAGGACATGGAGCATCCTC
AGAGGCAGAATGTGGCTGTCAACGAACTCTGCGGCCGATGCCATCAACCCCTGGCCCGGGCGCAGCCAGC
CGTCCGCGCTCTAGGGCAGCTGTTCCACATCGCCTGCTTCACCTGCCACCAGTGTGCGCAGCAGCTCCAG
GGCCAGCAGTTCTACAGTCTGGAGGGGGCGCCGTACTGCGAGGGCTGTTACACTGACACCCTGGAGAAGT
GTAACACCTGCGGGGAGCCCATCACTGACCGCATGCTGAGGGCCACGGGCAAGGCCTATCACCCGCACTG
CTTCACCTGTGTGGTCTGCGCCCGCCCCCTGGAGGGCACCTCCTTCATCGTGGACCAGGCCAACCGGCCC
CACTGTGTCCCCGACTACCACAAGCAGTACGCCCCGAGGTGCTCCGTCTGCTCTGAGCCCATCATGCCTG
AGCCTGGCCGAGATGAGACTGTGCGAGTGGTCGCCCTGGACAAGAACTTCCACATGAAGTGTTACAAGTG
TGAGGACTGCGGGAAGCCCCTGTCGATTGAGGCAGATGACAATGGCTGCTTCCCCCTGGACGGTCACGTG
CTCTGTCGGAAGTGCCACACTGCTAGAGCCCAGACC

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG200960 representing NM_001010972
Red=Cloning site Green=Tags(s)

MAAPRPSPAISVSVSAPAFYAPQKKFGPVVAPKPKVNPFRPGDSEPPPAPGAQRAQMGRVGEIPPPPPED
FPLPPPPLAGDGDDAEGALGGAFPPPPPPIEESFPPAPLEEEIFPSPPPPPEEEGGPEAPIPPPPQPREK
VSSIDLEIDSLSSLLDDMTKNDPFKARVSSGYVPPPVATPFSSKSSTKPAAGGTAPLPPWKSPSSSQPLP
QVPAPAQSQTQFHVQPQPQPKPQVQLHVQSQTQPVSLANTQPRGPPASSPAPAPKFSPVTPKFTPVASKF
SPGAPGGSGSQPNQKLGHPEALSAGTGSPQPPSFTYAQQREKPRVQEKQHPVPPPAQNQNQVRSPGAPGP
LTLKEVEELEQLTQQLMQDMEHPQRQNVAVNELCGRCHQPLARAQPAVRALGQLFHIACFTCHQCAQQLQ
GQQFYSLEGAPYCEGCYTDTLEKCNTCGEPITDRMLRATGKAYHPHCFTCVVCARPLEGTSFIVDQANRP
HCVPDYHKQYAPRCSVCSEPIMPEPGRDETVRVVALDKNFHMKCYKCEDCGKPLSIEADDNGCFPLDGHV
LCRKCHTARAQT

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001010972
ORF Size 1716 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001010972.2
RefSeq Size 2322 bp
RefSeq ORF 1719 bp
Locus ID 7791
UniProt ID Q15942
Cytogenetics 7q34
Protein Pathways Focal adhesion
Summary Focal adhesions are actin-rich structures that enable cells to adhere to the extracellular matrix and at which protein complexes involved in signal transduction assemble. Zyxin is a zinc-binding phosphoprotein that concentrates at focal adhesions and along the actin cytoskeleton. Zyxin has an N-terminal proline-rich domain and three LIM domains in its C-terminal half. The proline-rich domain may interact with SH3 domains of proteins involved in signal transduction pathways while the LIM domains are likely involved in protein-protein binding. Zyxin may function as a messenger in the signal transduction pathway that mediates adhesion-stimulated changes in gene expression and may modulate the cytoskeletal organization of actin bundles. Alternative splicing results in multiple transcript variants that encode the same isoform. provided by RefSeq, Jul 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001010972" in other vectors (4)
SKU Description Size Price
RC200960 ZYX (Myc-DDK-tagged)-Human zyxin (ZYX), transcript variant 2 10 ug
$289.00 $532.00
RC200960L3 Lenti-ORF clone of ZYX (Myc-DDK-tagged)-Human zyxin (ZYX), transcript variant 2 10 ug
$832.00
RC200960L4 Lenti-ORF clone of ZYX (mGFP-tagged)-Human zyxin (ZYX), transcript variant 2 10 ug
$832.00
SC319514 ZYX (untagged)-Human zyxin (ZYX), transcript variant 2 10 ug
$533.00

Plasmid Map for RG200960

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

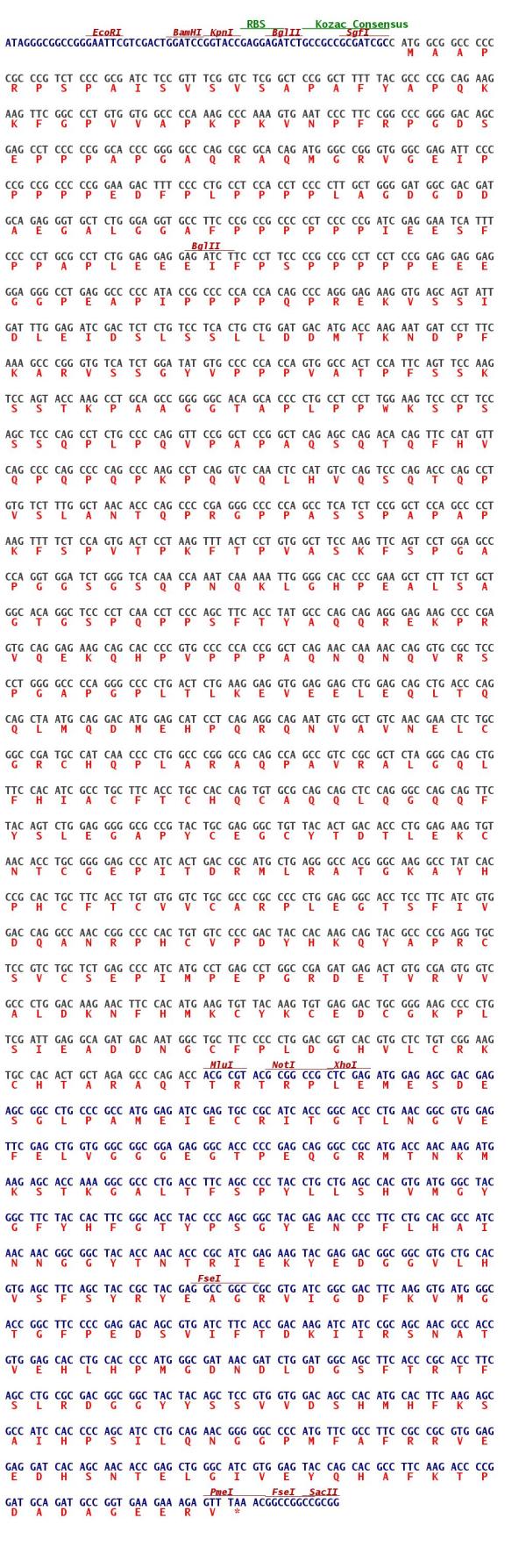

Cloning scheme for RG200960
Circular map for RG200960

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
