STYX (NM_001130701) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC225273
STYX (Myc-DDK-tagged)-Human serine/threonine/tyrosine interacting protein (STYX), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $300.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA382177 STYX Rabbit polyclonal Antibody
100 ul
$410.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "STYX or NM_001130701"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol STYX
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC225273 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAGGACGTGAAGCTGGAGTTCCCTTCCCTTCCACAGTGCAAGGAAGACGCCGAGGAGTGGACCTACC
CTATGAGACGAGAGATGCAGGAAATTTTACCTGGATTGTTCTTAGGCCCATATTCATCTGCTATGAAAAG
CAAGCTACCTGTACTACAGAAACATGGAATAACCCATATAATATGCATACGACAAAATATTGAAGCAAAC
TTTATTAAACCAAACTTTCAGCAGTTATTTAGATATTTAGTCCTGGATATTGCAGATAATCCAGTTGAAA
ATATAATACGTTTTTTCCCTATGACTAAGGAATTTATTGATGGGAGCTTACAAATGGGAGGAAAAGTTCT
TGTGCATGGAAATGCAGGGATCTCCAGAAGTGCAGCCTTTGTTATTGCATACATTATGGAAACATTTGGA
ATGAAGTACAGAGATGCTTTTGCTTATGTTCAAGAAAGAAGATTTTGTATTAATCCTAATGCTGGATTTG
TCCATCAACTTCAGGAATATGAAGCCATCTACCTAGCAAAATTAACAATACAGATGATGTCACCACTCCA
GATAGAAAGGTCATTATCTGTTCATTCTGGTACCACAGGCAGTTTGAAGAGAACACATGAAGAAGAGGAT
GATTTTGGAACCATGCAAGTGGCGACTGCACAGAATGGC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC225273 protein sequence
Red=Cloning site Green=Tags(s)

MEDVKLEFPSLPQCKEDAEEWTYPMRREMQEILPGLFLGPYSSAMKSKLPVLQKHGITHIICIRQNIEAN
FIKPNFQQLFRYLVLDIADNPVENIIRFFPMTKEFIDGSLQMGGKVLVHGNAGISRSAAFVIAYIMETFG
MKYRDAFAYVQERRFCINPNAGFVHQLQEYEAIYLAKLTIQMMSPLQIERSLSVHSGTTGSLKRTHEEED
DFGTMQVATAQNG

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001130701
ORF Size 669 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001130701.2
RefSeq Size 4631 bp
RefSeq ORF 672 bp
Locus ID 6815
UniProt ID Q8WUJ0, A0A024R641
Cytogenetics 14q22.1
Protein Families Druggable Genome, Phosphatase
MW 25.5 kDa
Summary The protein encoded by this gene is a pseudophosphatase, able to bind potential substrates but lacking an active catalytic loop. The encoded protein may be involved in spermiogenesis. Two transcript variants encoding the same protein have been found for these genes. provided by RefSeq, Oct 2011
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001130701" in other vectors (4)
SKU Description Size Price
RC225273L3 Lenti ORF clone of Human serine/threonine/tyrosine interacting protein (STYX), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC225273L4 Lenti ORF clone of Human serine/threonine/tyrosine interacting protein (STYX), transcript variant 2, mGFP tagged 10 ug
$600.00
RG225273 STYX (tGFP-tagged) - Human serine/threonine/tyrosine interacting protein (STYX), transcript variant 2 10 ug
$500.00
SC324808 STYX (untagged)-Human serine/threonine/tyrosine interacting protein (STYX), transcript variant 2 10 ug
$330.00

Plasmid Map for RC225273

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

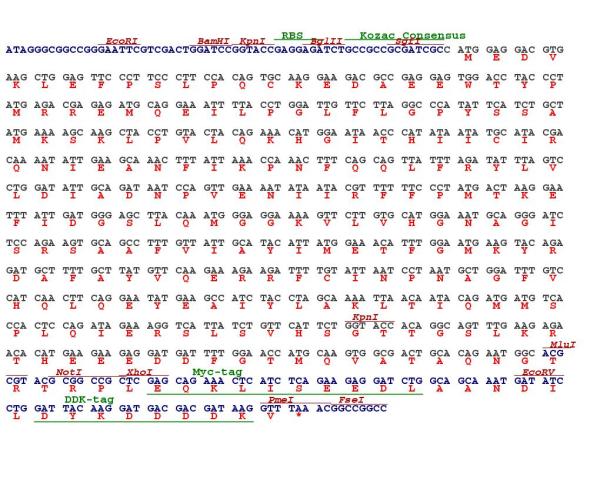

Cloning scheme for RC225273
Circular map for RC225273

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
