TMEM168 (NM_022484) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC220027
TMEM168 (Myc-DDK-tagged)-Human transmembrane protein 168 (TMEM168)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $638.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA338609 Rabbit Polyclonal Anti-TMEM168 Antibody
100 ul
$585.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "TMEM168 or NM_022484"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol TMEM168
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC220027 representing NM_022484
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTGTAAATCACTGCGTTATTGCTTTAGTCATTGTCTCTATTTAGCAATGACAAGACTGGAAGAAGTAA
ATAGAGAAGTGAACATGCATTCTTCAGTGCGGTATCTTGGCTATTTAGCCAGAATCAATTTATTGGTTGC
TATATGCTTAGGTCTATACGTAAGATGGGAAAAAACAGCAAATTCCTTAATTTTGGTAATTTTTATTCTT
GGTCTTTTTGTTCTTGGAATCGCCAGCATACTCTATTACTATTTTTCAATGGAAGCAGCAAGTTTAAGTC
TCTCCAATCTTTGGTTTGGATTCTTGCTTGGCCTCCTATGTTTTCTTGATAATTCATCCTTTAAAAATGA
TGTAAAAGAAGAATCAACCAAATATTTGCTTCTAACATCCATAGTGTTAAGGATATTGTGCTCTCTGGTG
GAGAGAATTTCTGGTTATGTCCGTCATCGGCCCACTTTACTAACCACAGTTGAATTTCTGGAGCTTGTTG
GATTTGCCATTGCCAGCACAACTATGTTGGTGGAGAAGTCTCTGAGTGTCATTTTGCTTGTTGTAGCTCT
GGCTATGCTGATTATTGATCTGAGAATGAAATCTTTCTTAGCTATTCCAAACTTAGTTATTTTTGCAGTT
TTGTTATTTTTTTCCTCATTGGAAACTCCCAAAAATCCGATTGCTTTTGCGTGTTTTTTTATTTGCCTGA
TAACTGATCCTTTCCTTGACATTTATTTTAGTGGACTTTCAGTAACTGAAAGATGGAAACCCTTTTTGTA
CCGTGGAAGAATTTGCAGAAGACTTTCAGTCGTTTTTGCTGGAATGATTGAGCTTACATTTTTTATTCTT
TCCGCATTCAAACTTAGAGACACTCACCTCTGGTATTTTGTAATACCTGGCTTTTCCATTTTTGGAATTT
TCTGGATGATTTGTCATATTATTTTTCTTTTAACTCTTTGGGGATTCCATACCAAATTAAATGACTGCCA
TAAAGTATATTTTACTCACAGGACAGATTACAATAGCCTTGATAGAATCATGGCATCCAAAGGGATGCGC
CATTTTTGCTTGATTTCAGAGCAGTTGGTGTTCTTTAGTCTTCTTGCAACAGCGATTTTGGGAGCAGTTT
CCTGGCAGCCAACAAATGGAATTTTCTTGAGCATGTTTCTAATCGTTTTGCCATTGGAATCCATGGCTCA
TGGGCTCTTCCATGAATTGGGTAACTGTTTAGGAGGAACATCTGTTGGATATGCTATTGTGATTCCCACC
AACTTCTGCAGTCCTGATGGTCAGCCAACACTGCTTCCCCCAGAACATGTACAGGAGTTAAATTTGAGGT
CTACTGGCATGCTCAATGCTATCCAAAGATTTTTTGCATATCATATGATTGAGACCTATGGATGTGACTA
TTCCACAAGTGGACTGTCATTTGATACTCTGCATTCCAAACTAAAAGCTTTCCTCGAACTTCGGACAGTG
GATGGACCCAGACATGATACGTATATTTTGTATTACAGTGGGCACACCCATGGTACAGGAGAGTGGGCTC
TAGCAGGTGGAGATACACTACGCCTTGACACACTTATAGAATGGTGGAGAGAAAAGAATGGTTCCTTTTG
TTCCCGGCTTATTATCGTATTAGACAGCGAAAATTCAACCCCTTGGGTGAAAGAAGTGAGGAAAATTAAT
GACCAGTATATTGCAGTGCAAGGAGCAGAGTTGATAAAAACAGTAGATATTGAAGAAGCTGACCCGCCAC
AGCTAGGTGACTTTACAAAAGACTGGGTAGAATATAACTGCAACTCCAGTAATAACATCTGCTGGACTGA
AAAGGGACGCACAGTGAAAGCAGTATATGGTGTGTCAAAACGGTGGAGTGACTACACTCTGCATTTGCCA
ACGGGAAGCGATGTGGCCAAGCACTGGATGTTACACTTTCCTCGTATTACATATCCCCTAGTGCATTTGG
CAAATTGGTTATGCGGTCTGAACCTTTTTTGGATCTGCAAAACTTGTTTTAGGTGCTTGAAAAGATTAAA
AATGAGTTGGTTTCTTCCTACTGTGCTGGACACAGGACAAGGCTTCAAACTTGTCAAATCT

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC220027 representing NM_022484
Red=Cloning site Green=Tags(s)

MCKSLRYCFSHCLYLAMTRLEEVNREVNMHSSVRYLGYLARINLLVAICLGLYVRWEKTANSLILVIFIL
GLFVLGIASILYYYFSMEAASLSLSNLWFGFLLGLLCFLDNSSFKNDVKEESTKYLLLTSIVLRILCSLV
ERISGYVRHRPTLLTTVEFLELVGFAIASTTMLVEKSLSVILLVVALAMLIIDLRMKSFLAIPNLVIFAV
LLFFSSLETPKNPIAFACFFICLITDPFLDIYFSGLSVTERWKPFLYRGRICRRLSVVFAGMIELTFFIL
SAFKLRDTHLWYFVIPGFSIFGIFWMICHIIFLLTLWGFHTKLNDCHKVYFTHRTDYNSLDRIMASKGMR
HFCLISEQLVFFSLLATAILGAVSWQPTNGIFLSMFLIVLPLESMAHGLFHELGNCLGGTSVGYAIVIPT
NFCSPDGQPTLLPPEHVQELNLRSTGMLNAIQRFFAYHMIETYGCDYSTSGLSFDTLHSKLKAFLELRTV
DGPRHDTYILYYSGHTHGTGEWALAGGDTLRLDTLIEWWREKNGSFCSRLIIVLDSENSTPWVKEVRKIN
DQYIAVQGAELIKTVDIEEADPPQLGDFTKDWVEYNCNSSNNICWTEKGRTVKAVYGVSKRWSDYTLHLP
TGSDVAKHWMLHFPRITYPLVHLANWLCGLNLFWICKTCFRCLKRLKMSWFLPTVLDTGQGFKLVKS

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_022484
ORF Size 2091 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_022484.6
RefSeq Size 3951 bp
RefSeq ORF 2094 bp
Locus ID 64418
UniProt ID Q9H0V1, A0A024R716
Cytogenetics 7q31.1
Protein Families Transmembrane
MW 79.6 kDa
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_022484" in other vectors (5)
SKU Description Size Price
RC220027L3 Lenti ORF clone of Human transmembrane protein 168 (TMEM168), Myc-DDK-tagged 10 ug
$938.00
RC220027L4 Lenti ORF clone of Human transmembrane protein 168 (TMEM168), mGFP tagged 10 ug
$938.00
RG220027 TMEM168 (tGFP-tagged) - Human transmembrane protein 168 (TMEM168) 10 ug
$838.00
SC112497 TMEM168 (untagged)-Human transmembrane protein 168 (TMEM168) 10 ug
$2,013.00
SC318177 TMEM168 (untagged)-Human transmembrane protein 168 (TMEM168) 10 ug
$703.00

Plasmid Map for RC220027

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

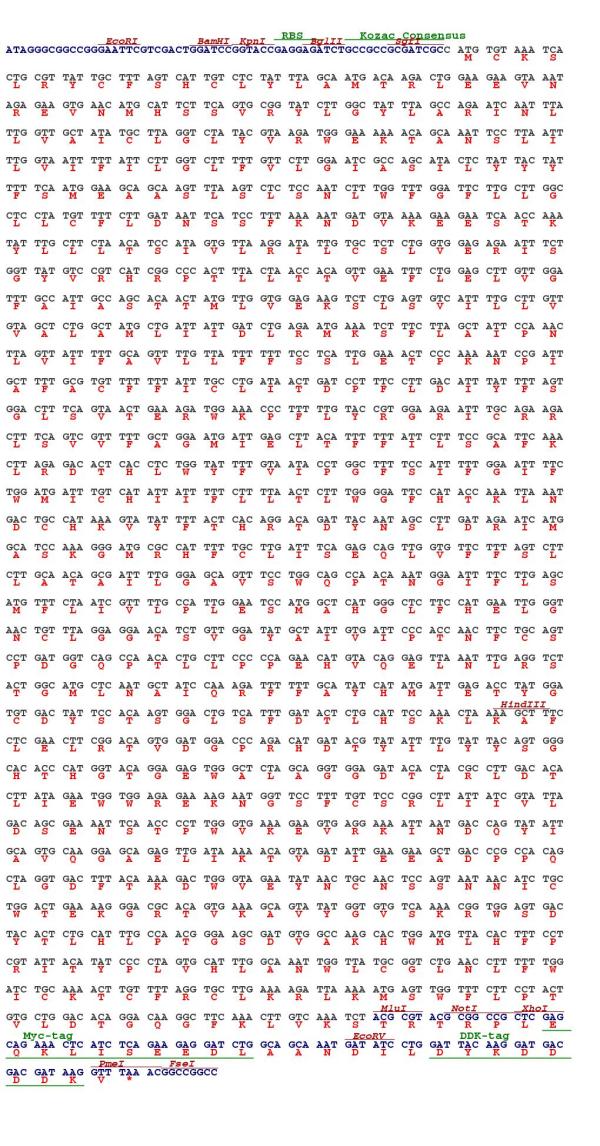

Cloning scheme for RC220027
Circular map for RC220027
