SMCHD1 (NM_015295) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RC213985
SMCHD1 (Myc-DDK-tagged)-Human structural maintenance of chromosomes flexible hinge domain containing 1 (SMCHD1)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK
  $1,655.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA381775 SMCHD1 Rabbit polyclonal Antibody
100 ul
$410.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "SMCHD1 or NM_015295"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol SMCHD1
Synonyms BAMS; FSHD2
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC213985 representing NM_015295
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCAGCGGCGGACGGCGGCGGGCCTGGTGGGGCCTCTGTGGGGACTGAGGAGGATGGCGGAGGCGTCG
GCCACAGGACGGTGTACTTGTTTGATCGGCGCGAAAAGGAGTCCGAGCTCGGGGACCGGCCTCTGCAGGT
CGGGGAGCGCTCGGACTACGCGGGATTTCGCGCGTGTGTGTGTCAGACACTTGGCATTTCACCTGAAGAA
AAATTTGTTATTACAACAACAAGTAGGAAAGAAATTACCTGTGATAATTTTGATGAAACTGTTAAAGATG
GAGTCACCTTATACCTGCTACAGTCGGTCAATCAGTTACTACTGACAGCTACGAAAGAACGAATTGACTT
CTTACCTCACTATGACACACTGGTTAAAAGTGGCATGTATGAATATTATGCCAGTGAAGGACAAAATCCT
TTGCCATTTGCTCTTGCGGAATTAATTGACAATTCATTGTCTGCTACTTCTCGTAACATTGGGGTTAGAA
GAATACAGATCAAATTGCTTTTTGATGAAACACAAGGAAAACCTGCTGTTGCAGTGATAGATAATGGAAG
AGGAATGACCTCTAAACAGCTTAACAACTGGGCCGTGTATAGGTTGTCAAAATTCACAAGGCAAGGTGAC
TTTGAAAGTGATCATTCAGGATATGTTCGTCCAGTACCAGTGCCACGCAGTTTAAATAGTGATATTTCCT
ATTTTGGTGTTGGGGGCAAGCAAGCTGTCTTCTTTGTTGGACAATCAGCCAGAATGATAAGCAAACCTGC
AGATTCCCAAGATGTTCACGAGCTTGTGCTTTCTAAAGAAGATTTTGAGAAGAAGGAGAAAAATAAAGAG
GCAATATATAGTGGATATATTAGAAACAGAAAGCCCTCTGATTCTGTTCACATTACAAATGATGATGAAA
GATTTCTACATCATCTTATCATAGAGGAGAAGGAAAAAGATAGCTTTACTGCTGTGGTTATCACAGGGGT
ACAACCAGAACACATACAGTACTTGAAAAATTATTTCCACCTTTGGACACGACAGTTAGCGCATATTTAT
CACTACTATATTCATGGCCCAAAAGGAAATGAAATACGAACATCAAAAGAAGTTGAACCTTTCAACAATA
TTGATATTGAAATTTCTATGTTTGAAAAAGGGAAGGTACCTAAGATTGTCAACCTAAGGGAAATACAAGA
CGACATGCAGACGTTGTATGTAAACACAGCAGCTGATAGTTTTGAATTCAAAGCTCATGTTGAAGGAGAT
GGTGTAGTGGAAGGGATTATCCGTTATCATCCATTCTTATATGATAGAGAAACTTACCCTGATGATCCAT
GCTTTCCATCAAAATTAAAAGATGAAGATGATGAAGATGATTGTTTCATACTTGAGAAAGCAGCTAGAGG
GAAAAGGCCTATTTTTGAATGTTTTTGGAATGGACGATTAATACCATATACATCAGTTGAAGACTTTGAC
TGGTGTACTCCTCCTAAGAAGAGAGGGCTTGCACCAATTGAATGCTACAATAGGATATCTGGTGCATTAT
TCACTAATGACAAATTCCAGGTCAGCACAAATAAATTGACGTTTATGGATCTTGAGCTAAAATTGAAAGA
TAAGAACACCCTTTTTACAAGGATTTTAAATGGACAGGAACAGCGAATGAAAATTGACAGAGAATTTGCT
TTGTGGCTGAAGGACTGTCATGAGAAGTATGATAAACAAATAAAATTTACACTTTTTAAGGGAGTAATTA
CACGTCCTGATCTTCCTTCTAAAAAGCAAGGTCCCTGGGCAACATATGCAGCAATAGAATGGGATGGAAA
GATATACAAAGCAGGACAGCTGGTCAAGACAATCAAGACACTTCCCCTCTTTTATGGAAGCATAGTAAGA
TTTTTTCTTTATGGCGATCATGATGGAGAAGTATATGCTACAGGAGGAGAGGTTCAAATTGCAATGGAAC
CTCAGGCACTATATGATGAAGTAAGAACTGTGCCAATTGCAAAGCTGGATAGGACAGTTGCTGAGAAAGC
TGTTAAAAAATATGTAGAAGATGAAATGGCAAGGCTCCCTGATAGATTGTCAGTAACTTGGCCTGAAGGA
GATGAATTATTGCCTAATGAGGTTAGGCCTGCTGGAACCCCTATTGGTGCGTTAAGAATTGAAATACTGA
ATAAAAAAGGGGAAGCAATGCAAAAGCTTCCAGGAACAAGCCATGGAGGGTCAAAGAAACTCCTGGTTGA
GCTCAAAGTTATTTTACATTCTTCAAGTGGAAATAAAGAGATTATTTCGCATATTAGTCAACATGGAGGA
AAATGGCCTTACTGGTTTAAAAAAATGGAAAATATTCAGAAGTTGGGGAATTATACCTTGAAATTACAAG
TTGTGTTGAATGAAAGTAATGCAGACACTTATGCAGGAAGACCACTACCATCTAAAGCAATTAAGTTTTC
TGTTAAAGAGGGTAAGCCAGAGAAATTTTCATTTGGTCTTCTGGATCTTCCTTTTCGTGTTGGAGTTCCA
TTTAATATCCCTCTGGAGTTTCAGGATGAATTTGGTCATACCAGTCAACTAGTAACTGATATTCAGCCAG
TTCTTGAAGCAAGTGGTTTATCTTTACATTATGAAGAAATAACCAAAGGACCAAATTGTGTAATTCGAGG
TGTTACAGCCAAGGGCCCTGTAAACTCTTGTCAAGGCAAGAATTATAATCTGAAGGTTACTCTGCCTGGC
TTAAAAGAAGACTCACAGATTTTGAAAATTAGATTACTACCTGGTCACCCTCGTCGACTGAAAGTGAAAC
CTGATTCTGAAATTTTAGTTATAGAAAATGGAACAGCTTTCCCATTTCAGGTGGAAGTTTTAGATGAATC
AGACAACATAACAGCACAACCAAAATTGATTGTTCATTGTAAGTTTTCAGGTGCTCCAAACCTTCCAGTC
TATGTTGTAGATTGCAGTAGTTCTGGAACCAGTATTTTAACAGGATCTGCAATTCAAGTTCAGAATATTA
AAAAAGACCAGACGCTTAAAGCAAGAATTGAAATACCTAGTTGTAAAGATGTGGCACCTGTGGAGAAGAC
TATTAAGTTGCTTCCCAGTAGCCATGTTGCAAGACTACAAATATTCAGTGTAGAAGGACAAAAGGCAATT
CAGATCAAACATCAGGATGAGGTTAATTGGATAGCGGGTGATATTATGCATAATCTTATTTTTCAAATGT
ATGATGAAGGAGAAAGAGAAATCAATATAACATCAGCTTTAGCAGAAAAAATTAAAGTTAATTGGACTCC
TGAGATTAACAAAGAACACTTGCTACAGGGTCTGCTTCCTGATGTGCAAGTACCAACATCTGTAAAAGAT
ATGCGCTATTGCCAGGTTTCATTCCAAGATGATCATGTGTCTTTGGAAAGTGCGTTTACAGTAAGACCAC
TTCCTGATGAACCTAAACATTTAAAATGTGAAATGAAAGGAGGAAAAACAGTACAGATGGGCCAAGAGCT
TCAAGGAGAAGTAGTTATAATAATTACAGATCAGTACGGAAATCAGATTCAAGCATTTTCACCAAGTTCT
TTATCTTCTTTGTCAATTGCTGGGGTTGGACTTGATAGCTCAAATTTGAAAACAACCTTTCAGGAAAACA
CACAGAGTATAAGTGTAAGAGGCATCAAATTTATTCCAGGTCCTCCTGGAAATAAGGATCTTTGTTTTAC
TTGGCGTGAGTTTTCTGACTTTATTCGAGTGCAACTAATTTCTGGACCTCCTGCTAAACTTCTCCTTATA
GACTGGCCAGAACTAAAGGAGTCCATTCCAGTGATTAATGGAAGAGATTTACAGAACCCTATTATTGTTC
AACTTTGTGATCAGTGGGATAATCCAGCACCGGTACAACATGTTAAAATAAGTCTTACAAAAGCTAGCAA
TTTAAAGCTCATGCCTTCAAACCAACAGCATAAAACAGATGAGAAAGGCAGGGCTAATTTGGGAGTATTC
AGTGTTTTTGCCCCTAGGGGAGAGCATACTCTTCAGGTTAAAGCCATCTATAACAAAAGTATCATAGAAG
GACCTATAATTAAGTTAATGATTCTTCCAGACCCAGAAAAACCCGTTCGTCTCAATGTTAAATATGACAA
AGATGCATCCTTCTTAGCAGGGGGTCTTTTCACTGATTTTATGATTAGTGTTATTTCTGAAGATGACAGT
ATCATTAAAAACATTAATCCAGCACGTATTTCCATGAAAATGTGGAAGCTGTCTACCAGTGGGAACCGAC
CCCCAGCAAATGCAGAAACATTTAGTTGTAATAAAATAAAAGATAATGACAAAGAAGATGGCTGCTTCTA
TTTCAGGGATAAAGTAATTCCTAATAAAGTGGGGACATATTGTATCCAGTTTGGTTTTATGATGGATAAA
ACAAATATTCTCAACAGTGAACAGGTTATAGTTGAAGTCCTGCCTAATCAACCTGTGAAGTTAGTACCTA
AAATTAAACCACCTACACCAGCTGTTTCAAATGTTCGCTCAGTTGCCAGTAGGACCTTGGTCAGAGATCT
ACATCTTAGTATCACGGATGACTACGACAACCATACTGGAATTGATTTGGTTGGCACTATAATAGCCACC
ATTAAAGGCTCTAATGAGGAAGATACTGATACCCCACTTTTTATTGGGAAAGTTAGAACACTTGAATTCC
CCTTCGTGAATGGTTCGGCTGAAATCATGAGTCTGGTGCTGGCAGAAAGTAGTCCTGGAAGGGATAGTAC
TGAATATTTTATTGTATTTGAGCCCCGGCTACCACTTTTATCAAGAACCTTAGAACCATATATCCTACCG
TTCATGTTTTACAATGATGTTAAGAAGCAGCAACAAATGGCAGCACTTACAAAAGAAAAGGACCAATTAT
CTCAGTCTATTGTTATGTATAAAAGTTTATTTGAAGCCAGCCAACAGCTTCTTAATGAAATGAAATGTCA
AGTTGAAGAAGCAAGATTAAAAGAGGCCCAATTGCGAAATGAACTAAAAATACATAATATTGACATTCCT
ACAACACAACAGGTGCCACACATTGAAGCACTTCTGAAAAGAAAGCTATCAGAACAAGAAGAACTGAAGA
AAAAACCTAGAAGATCGTGTACTCTTCCAAACTATACTAAAGGCAGTGGAGATGTTTTGGGAAAGATTGC
ACATCTAGCACAAATTGAAGATGATAGAGCTGCGATGGTTATTTCTTGGCATCTGGCAAGTGACATGGAC
TGTGTAGTCACCCTAACCACTGACGCTGCACGTCGTATCTATGATGAAACCCAAGGTCGTCAGCAGGTGT
TGCCCCTTGATTCTATTTACAAGAAGACTCTTCCAGATTGGAAAAGATCTCTACCTCATTTCCGAAATGG
AAAATTGTATTTTAAACCCATTGGAGATCCAGTCTTTGCTCGAGACTTGTTAACATTTCCAGATAATGTA
GAACATTGTGAAACAGTATTTGGTATGCTGTTAGGAGACACCATTATTTTGGATAATCTGGATGCGGCCA
ATCATTATAGAAAAGAGGTTGTTAAAATTACACACTGTCCTACACTGCTGACCAGAGATGGAGATCGAAT
TCGAAGTAATGGAAAGTTTGGGGGCCTTCAGAATAAAGCTCCTCCAATGGATAAACTTCGGGGAATGGTA
TTTGGAGCTCCAGTTCCAAAACAGTGTCTGATCTTAGGGGAACAAATAGATCTTCTTCAGCAGTATCGTT
CTGCTGTGTGCAAACTAGACAGTGTGAATAAGGATCTTAACAGTCAATTAGAGTACCTTCGCACTCCGGA
TATGAGGAAGAAAAAGCAAGAACTTGATGAACATGAGAAAAATCTCAAACTAATAGAGGAAAAACTAGGT
ATGACTCCCATACGTAAGTGTAATGACTCATTGCGTCATTCACCAAAGGTTGAGACGACAGATTGTCCAG
TTCCTCCTAAAAGAATGAGACGAGAAGCTACAAGACAAAATAGGATTATAACCAAAACAGATGTA

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC213985 representing NM_015295
Red=Cloning site Green=Tags(s)

MAAADGGGPGGASVGTEEDGGGVGHRTVYLFDRREKESELGDRPLQVGERSDYAGFRACVCQTLGISPEE
KFVITTTSRKEITCDNFDETVKDGVTLYLLQSVNQLLLTATKERIDFLPHYDTLVKSGMYEYYASEGQNP
LPFALAELIDNSLSATSRNIGVRRIQIKLLFDETQGKPAVAVIDNGRGMTSKQLNNWAVYRLSKFTRQGD
FESDHSGYVRPVPVPRSLNSDISYFGVGGKQAVFFVGQSARMISKPADSQDVHELVLSKEDFEKKEKNKE
AIYSGYIRNRKPSDSVHITNDDERFLHHLIIEEKEKDSFTAVVITGVQPEHIQYLKNYFHLWTRQLAHIY
HYYIHGPKGNEIRTSKEVEPFNNIDIEISMFEKGKVPKIVNLREIQDDMQTLYVNTAADSFEFKAHVEGD
GVVEGIIRYHPFLYDRETYPDDPCFPSKLKDEDDEDDCFILEKAARGKRPIFECFWNGRLIPYTSVEDFD
WCTPPKKRGLAPIECYNRISGALFTNDKFQVSTNKLTFMDLELKLKDKNTLFTRILNGQEQRMKIDREFA
LWLKDCHEKYDKQIKFTLFKGVITRPDLPSKKQGPWATYAAIEWDGKIYKAGQLVKTIKTLPLFYGSIVR
FFLYGDHDGEVYATGGEVQIAMEPQALYDEVRTVPIAKLDRTVAEKAVKKYVEDEMARLPDRLSVTWPEG
DELLPNEVRPAGTPIGALRIEILNKKGEAMQKLPGTSHGGSKKLLVELKVILHSSSGNKEIISHISQHGG
KWPYWFKKMENIQKLGNYTLKLQVVLNESNADTYAGRPLPSKAIKFSVKEGKPEKFSFGLLDLPFRVGVP
FNIPLEFQDEFGHTSQLVTDIQPVLEASGLSLHYEEITKGPNCVIRGVTAKGPVNSCQGKNYNLKVTLPG
LKEDSQILKIRLLPGHPRRLKVKPDSEILVIENGTAFPFQVEVLDESDNITAQPKLIVHCKFSGAPNLPV
YVVDCSSSGTSILTGSAIQVQNIKKDQTLKARIEIPSCKDVAPVEKTIKLLPSSHVARLQIFSVEGQKAI
QIKHQDEVNWIAGDIMHNLIFQMYDEGEREINITSALAEKIKVNWTPEINKEHLLQGLLPDVQVPTSVKD
MRYCQVSFQDDHVSLESAFTVRPLPDEPKHLKCEMKGGKTVQMGQELQGEVVIIITDQYGNQIQAFSPSS
LSSLSIAGVGLDSSNLKTTFQENTQSISVRGIKFIPGPPGNKDLCFTWREFSDFIRVQLISGPPAKLLLI
DWPELKESIPVINGRDLQNPIIVQLCDQWDNPAPVQHVKISLTKASNLKLMPSNQQHKTDEKGRANLGVF
SVFAPRGEHTLQVKAIYNKSIIEGPIIKLMILPDPEKPVRLNVKYDKDASFLAGGLFTDFMISVISEDDS
IIKNINPARISMKMWKLSTSGNRPPANAETFSCNKIKDNDKEDGCFYFRDKVIPNKVGTYCIQFGFMMDK
TNILNSEQVIVEVLPNQPVKLVPKIKPPTPAVSNVRSVASRTLVRDLHLSITDDYDNHTGIDLVGTIIAT
IKGSNEEDTDTPLFIGKVRTLEFPFVNGSAEIMSLVLAESSPGRDSTEYFIVFEPRLPLLSRTLEPYILP
FMFYNDVKKQQQMAALTKEKDQLSQSIVMYKSLFEASQQLLNEMKCQVEEARLKEAQLRNELKIHNIDIP
TTQQVPHIEALLKRKLSEQEELKKKPRRSCTLPNYTKGSGDVLGKIAHLAQIEDDRAAMVISWHLASDMD
CVVTLTTDAARRIYDETQGRQQVLPLDSIYKKTLPDWKRSLPHFRNGKLYFKPIGDPVFARDLLTFPDNV
EHCETVFGMLLGDTIILDNLDAANHYRKEVVKITHCPTLLTRDGDRIRSNGKFGGLQNKAPPMDKLRGMV
FGAPVPKQCLILGEQIDLLQQYRSAVCKLDSVNKDLNSQLEYLRTPDMRKKKQELDEHEKNLKLIEEKLG
MTPIRKCNDSLRHSPKVETTDCPVPPKRMRREATRQNRIITKTDV

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here

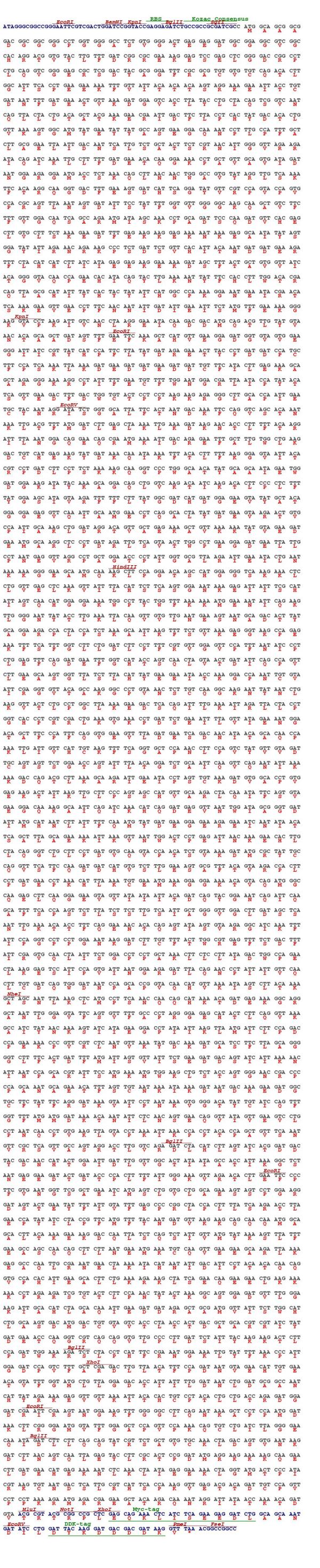

Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_015295
ORF Size 6015 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_015295.3
RefSeq Size 8672 bp
RefSeq ORF 6018 bp
Locus ID 23347
UniProt ID A6NHR9
Cytogenetics 18p11.32
Protein Families Druggable Genome
MW 226.2 kDa
Summary This gene encodes a protein which contains a hinge region domain found in members of the SMC (structural maintenance of chromosomes) protein family. provided by RefSeq, Dec 2011
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_015295" in other vectors (3)
SKU Description Size Price
RC213985L1 Lenti ORF clone of Human structural maintenance of chromosomes flexible hinge domain containing 1 (SMCHD1), Myc-DDK-tagged 10 ug
$1,955.00
RG213985 SMCHD1 (tGFP-tagged) - Human structural maintenance of chromosomes flexible hinge domain containing 1 (SMCHD1) 10 ug
$1,855.00
SC316455 SMCHD1 (untagged)-Human structural maintenance of chromosomes flexible hinge domain containing 1 (SMCHD1) 10 ug
$1,821.00

Plasmid Map for RC213985

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

Cloning scheme for RC213985
Circular map for RC213985

file-alt Citations

SMCHD1 mutations associated with a rare muscular dystrophy can also cause isolated arhinia and Bosma arhinia microphthalmia syndrome
Shaw, Brand, Kupchinsky et al
Nat. Genet. (2017) 49 (2), 238-248 DOI: 10.1038/ng.3743
AI Summary: OriGene Technologies contributed to this study by providing the wild-type human SMCHD1 ORF (NM_015295) construct, which was used in rescue experiments to investigate the functional effects of SMCHD1 mutations associated with arhinia and related syndromes.
Snippet: … For rescue experiments, a wild-type (WT) human SMCHD1 ORF (NM_015295) construct was obtained commercially (OriGene Technologies) and subcloned into the pCS2+ vector. … Cite SaveSaving...;For rescue experiments, a wild-type (WT) human SMCHD1 ORF (GenBank NM_015295) construct was obtained commercially (OriGene Technologies) and subcloned into the pCS2+ vector. …
Showing 1-1 of 1 papers.
Powered by BizGenius
*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.

Related Products
