OPCML (NM_002545) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC213594
OPCML (Myc-DDK-tagged)-Human opioid binding protein/cell adhesion molecule-like (OPCML), transcript variant 1
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $457.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA321261 Anti-OPCML Rabbit Polyclonal Antibody
100 ul
$305.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "OPCML or NM_002545"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol OPCML
Synonyms IGLON1; OBCAM; OPCM
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC213594 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGGGGTCTGTGGGTACCTGTTCCTGCCCTGGAAGTGCCTCGTGGTCGTGTCTCTCAGGCTGCTGTTCC
TTGTACCCACAGGAGTGCCCGTGCGCAGCGGAGATGCCACCTTCCCCAAAGCTATGGACAACGTGACGGT
CCGGCAGGGGGAGAGCGCCACCCTCAGGTGTACCATAGATGACCGGGTAACCCGGGTGGCCTGGCTAAAC
CGCAGCACCATCCTCTACGCTGGGAATGACAAGTGGTCCATAGACCCTCGTGTGATCATCCTGGTCAATA
CACCAACCCAGTACAGCATCATGATCCAAAATGTGGATGTGTATGACGAAGGTCCGTACACCTGCTCTGT
GCAGACAGACAATCATCCCAAAACGTCCCGGGTTCACCTAATAGTGCAAGTTCCTCCTCAGATCATGAAT
ATCTCCTCAGACATCACTGTGAATGAGGGAAGCAGTGTGACCCTGCTGTGTCTTGCTATTGGCAGACCAG
AGCCAACTGTGACATGGAGACACCTGTCAGTCAAGGAAGGCCAGGGCTTTGTAAGTGAGGATGAGTACCT
GGAGATCTCTGACATCAAGCGAGACCAGTCCGGGGAGTACGAATGCAGCGCGTTGAACGATGTCGCTGCG
CCCGATGTGCGGAAAGTAAAAATCACTGTAAACTATCCTCCCTATATCTCAAAAGCCAAGAACACTGGTG
TTTCAGTCGGTCAGAAGGGCATCCTGAGCTGTGAAGCCTCTGCAGTCCCCATGGCTGAATTCCAGTGGTT
CAAGGAAGAAACCAGGTTAGCCACTGGTCTGGATGGAATGAGGATTGAAAACAAAGGCCGCATGTCCACT
CTGACTTTCTTCAATGTTTCAGAAAAGGATTATGGGAACTATACTTGTGTGGCCACGAACAAGCTTGGGA
ACACCAATGCCAGCATCACATTGTATGGGCCTGGAGCAGTCATTGATGGTGTAAACTCGGCCTCCAGAGC
ACTGGCTTGTCTCTGGCTATCAGGGACCCTCTTAGCCCACTTCTTCATCAAGTTT

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC213594 protein sequence
Red=Cloning site Green=Tags(s)

MGVCGYLFLPWKCLVVVSLRLLFLVPTGVPVRSGDATFPKAMDNVTVRQGESATLRCTIDDRVTRVAWLN
RSTILYAGNDKWSIDPRVIILVNTPTQYSIMIQNVDVYDEGPYTCSVQTDNHPKTSRVHLIVQVPPQIMN
ISSDITVNEGSSVTLLCLAIGRPEPTVTWRHLSVKEGQGFVSEDEYLEISDIKRDQSGEYECSALNDVAA
PDVRKVKITVNYPPYISKAKNTGVSVGQKGILSCEASAVPMAEFQWFKEETRLATGLDGMRIENKGRMST
LTFFNVSEKDYGNYTCVATNKLGNTNASITLYGPGAVIDGVNSASRALACLWLSGTLLAHFFIKF

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_002545
ORF Size 1035 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_002545.4, NP_002536.1
RefSeq Size 6300 bp
RefSeq ORF 1038 bp
Locus ID 4978
UniProt ID Q14982
Cytogenetics 11q25
Domains ig, IG, IGc2
Protein Families Druggable Genome, Transmembrane
MW 38 kDa
Summary This gene encodes a member of the IgLON subfamily in the immunoglobulin protein superfamily of proteins. The encoded preprotein is proteolytically processed to generate the mature protein. This protein is localized in the plasma membrane and may have an accessory role in opioid receptor function. This gene has an ortholog in rat and bovine. The opioid binding-cell adhesion molecule encoded by the rat gene binds opioid alkaloids in the presence of acidic lipids, exhibits selectivity for mu ligands and acts as a GPI-anchored protein. Since the encoded protein is highly conserved in species during evolution, it may have a fundamental role in mammalian systems. Alternative splicing results in multiple transcript variants, at least one of which encodes an isoform that is proteolytically processed. provided by RefSeq, Jan 2016
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_002545" in other vectors (4)
SKU Description Size Price
RC213594L3 Lenti ORF clone of Human opioid binding protein/cell adhesion molecule-like (OPCML), transcript variant 1, Myc-DDK-tagged 10 ug
$757.00
RC213594L4 Lenti ORF clone of Human opioid binding protein/cell adhesion molecule-like (OPCML), transcript variant 1, mGFP tagged 10 ug
$757.00
RG213594 OPCML (tGFP-tagged) - Human opioid binding protein/cell adhesion molecule-like (OPCML), transcript variant 1 10 ug
$489.00 $657.00
SC313047 OPCML (untagged)-Human opioid binding protein/cell adhesion molecule-like (OPCML), transcript variant 1 10 ug
$503.00

Plasmid Map for RC213594

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

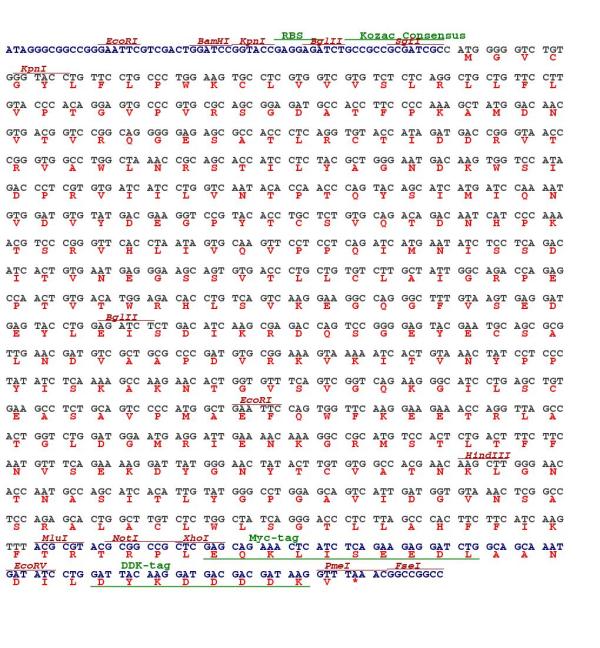

Cloning scheme for RC213594
Circular map for RC213594

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
