PDE4 (PDE4B) (NM_002600) Human Tagged ORF Clone

SKU
RC211956
PDE4B (Myc-DDK-tagged)-Human phosphodiesterase 4B, cAMP-specific (PDE4B), transcript variant a
  • TrueORF Gold

    Protein expression verified by Western blot, fully sequenced and in stock

    Click here to learn more.

$674.00
In Stock*
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol PDE4
Synonyms DPDE4; PDEIVB
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

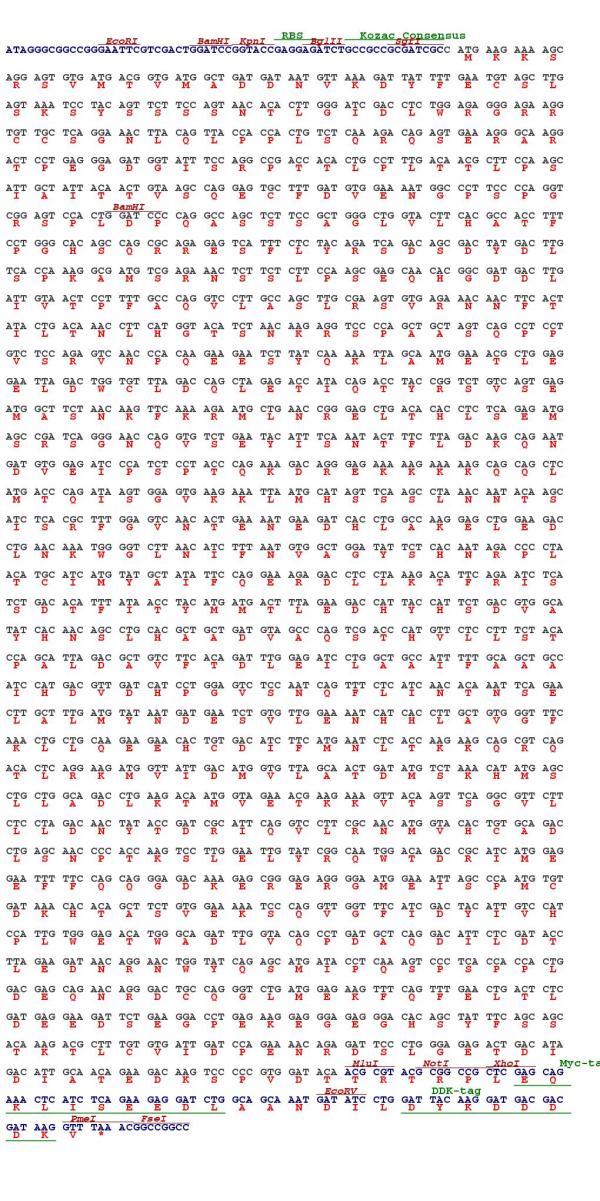

ORF Nucleotide Sequence
>RC211956 representing NM_002600
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGAAGAAAAGCAGGAGTGTGATGACGGTGATGGCTGATGATAATGTTAAAGATTATTTTGAATGTAGCT
TGAGTAAATCCTACAGTTCTTCCAGTAACACACTTGGGATCGACCTCTGGAGAGGGAGAAGGTGTTGCTC
AGGAAACTTACAGTTACCACCACTGTCTCAAAGACAGAGTGAAAGGGCAAGGACTCCTGAGGGAGATGGT
ATTTCCAGGCCGACCACACTGCCTTTGACAACGCTTCCAAGCATTGCTATTACAACTGTAAGCCAGGAGT
GCTTTGATGTGGAAAATGGCCCTTCCCCAGGTCGGAGTCCACTGGATCCCCAGGCCAGCTCTTCCGCTGG
GCTGGTACTTCACGCCACCTTTCCTGGGCACAGCCAGCGCAGAGAGTCATTTCTCTACAGATCAGACAGC
GACTATGACTTGTCACCAAAGGCGATGTCGAGAAACTCTTCTCTTCCAAGCGAGCAACACGGCGATGACT
TGATTGTAACTCCTTTTGCCCAGGTCCTTGCCAGCTTGCGAAGTGTGAGAAACAACTTCACTATACTGAC
AAACCTTCATGGTACATCTAACAAGAGGTCCCCAGCTGCTAGTCAGCCTCCTGTCTCCAGAGTCAACCCA
CAAGAAGAATCTTATCAAAAATTAGCAATGGAAACGCTGGAGGAATTAGACTGGTGTTTAGACCAGCTAG
AGACCATACAGACCTACCGGTCTGTCAGTGAGATGGCTTCTAACAAGTTCAAAAGAATGCTGAACCGGGA
GCTGACACACCTCTCAGAGATGAGCCGATCAGGGAACCAGGTGTCTGAATACATTTCAAATACTTTCTTA
GACAAGCAGAATGATGTGGAGATCCCATCTCCTACCCAGAAAGACAGGGAGAAAAAGAAAAAGCAGCAGC
TCATGACCCAGATAAGTGGAGTGAAGAAATTAATGCATAGTTCAAGCCTAAACAATACAAGCATCTCACG
CTTTGGAGTCAACACTGAAAATGAAGATCACCTGGCCAAGGAGCTGGAAGACCTGAACAAATGGGGTCTT
AACATCTTTAATGTGGCTGGATATTCTCACAATAGACCCCTAACATGCATCATGTATGCTATATTCCAGG
AAAGAGACCTCCTAAAGACATTCAGAATCTCATCTGACACATTTATAACCTACATGATGACTTTAGAAGA
CCATTACCATTCTGACGTGGCATATCACAACAGCCTGCACGCTGCTGATGTAGCCCAGTCGACCCATGTT
CTCCTTTCTACACCAGCATTAGACGCTGTCTTCACAGATTTGGAGATCCTGGCTGCCATTTTTGCAGCTG
CCATCCATGACGTTGATCATCCTGGAGTCTCCAATCAGTTTCTCATCAACACAAATTCAGAACTTGCTTT
GATGTATAATGATGAATCTGTGTTGGAAAATCATCACCTTGCTGTGGGTTTCAAACTGCTGCAAGAAGAA
CACTGTGACATCTTCATGAATCTCACCAAGAAGCAGCGTCAGACACTCAGGAAGATGGTTATTGACATGG
TGTTAGCAACTGATATGTCTAAACATATGAGCCTGCTGGCAGACCTGAAGACAATGGTAGAAACGAAGAA
AGTTACAAGTTCAGGCGTTCTTCTCCTAGACAACTATACCGATCGCATTCAGGTCCTTCGCAACATGGTA
CACTGTGCAGACCTGAGCAACCCCACCAAGTCCTTGGAATTGTATCGGCAATGGACAGACCGCATCATGG
AGGAATTTTTCCAGCAGGGAGACAAAGAGCGGGAGAGGGGAATGGAAATTAGCCCAATGTGTGATAAACA
CACAGCTTCTGTGGAAAAATCCCAGGTTGGTTTCATCGACTACATTGTCCATCCATTGTGGGAGACATGG
GCAGATTTGGTACAGCCTGATGCTCAGGACATTCTCGATACCTTAGAAGATAACAGGAACTGGTATCAGA
GCATGATACCTCAAAGTCCCTCACCACCACTGGACGAGCAGAACAGGGACTGCCAGGGTCTGATGGAGAA
GTTTCAGTTTGAACTGACTCTCGATGAGGAAGATTCTGAAGGACCTGAGAAGGAGGGAGAGGGACACAGC
TATTTCAGCAGCACAAAGACGCTTTGTGTGATTGATCCAGAAAACAGAGATTCCCTGGGAGAGACTGACA
TAGACATTGCAACAGAAGACAAGTCCCCCGTGGATACA


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC211956 representing NM_002600
Red=Cloning site Green=Tags(s)

MKKSRSVMTVMADDNVKDYFECSLSKSYSSSSNTLGIDLWRGRRCCSGNLQLPPLSQRQSERARTPEGDG
ISRPTTLPLTTLPSIAITTVSQECFDVENGPSPGRSPLDPQASSSAGLVLHATFPGHSQRRESFLYRSDS
DYDLSPKAMSRNSSLPSEQHGDDLIVTPFAQVLASLRSVRNNFTILTNLHGTSNKRSPAASQPPVSRVNP
QEESYQKLAMETLEELDWCLDQLETIQTYRSVSEMASNKFKRMLNRELTHLSEMSRSGNQVSEYISNTFL
DKQNDVEIPSPTQKDREKKKKQQLMTQISGVKKLMHSSSLNNTSISRFGVNTENEDHLAKELEDLNKWGL
NIFNVAGYSHNRPLTCIMYAIFQERDLLKTFRISSDTFITYMMTLEDHYHSDVAYHNSLHAADVAQSTHV
LLSTPALDAVFTDLEILAAIFAAAIHDVDHPGVSNQFLINTNSELALMYNDESVLENHHLAVGFKLLQEE
HCDIFMNLTKKQRQTLRKMVIDMVLATDMSKHMSLLADLKTMVETKKVTSSGVLLLDNYTDRIQVLRNMV
HCADLSNPTKSLELYRQWTDRIMEEFFQQGDKERERGMEISPMCDKHTASVEKSQVGFIDYIVHPLWETW
ADLVQPDAQDILDTLEDNRNWYQSMIPQSPSPPLDEQNRDCQGLMEKFQFELTLDEEDSEGPEKEGEGHS
YFSSTKTLCVIDPENRDSLGETDIDIATEDKSPVDT

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene Plasmid Map
ACCN NM_002600
ORF Size 2208 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_002600.4
RefSeq Size 4264 bp
RefSeq ORF 2211 bp
Locus ID 5142
UniProt ID Q07343
Cytogenetics 1p31.3
Domains PDEase
Protein Families Druggable Genome
Protein Pathways Progesterone-mediated oocyte maturation, Purine metabolism
MW 83.2 kDa
Summary This gene is a member of the type IV, cyclic AMP (cAMP)-specific, cyclic nucleotide phosphodiesterase (PDE) family. The encoded protein regulates the cellular concentrations of cyclic nucleotides and thereby play a role in signal transduction. Altered activity of this protein has been associated with schizophrenia and bipolar affective disorder. Alternative splicing and the use of alternative promoters results in multiple transcript variants encoding different isoforms. [provided by RefSeq, Jul 2014]
