PDE6C (NM_006204) Human Tagged ORF Clone
SKU
RC211842
PDE6C (Myc-DDK-tagged)-Human phosphodiesterase 6C, cGMP-specific, cone, alpha prime (PDE6C)
$786.00
In Stock*
Specifications
| Product Data | |
| Type | Human Tagged ORF Clone |
|---|---|
| Target Symbol | PDE6C |
| Synonyms | ACHM5; COD4; PDEA2 |
| Vector | pCMV6-Entry |
| E. coli Selection | Kanamycin (25 ug/mL) |
| Mammalian Cell Selection | Neomycin |
| Sequence Data | |
| Chromatograms |
Chromatograms
 Sequencher program is needed, download here |
| Restriction Sites |

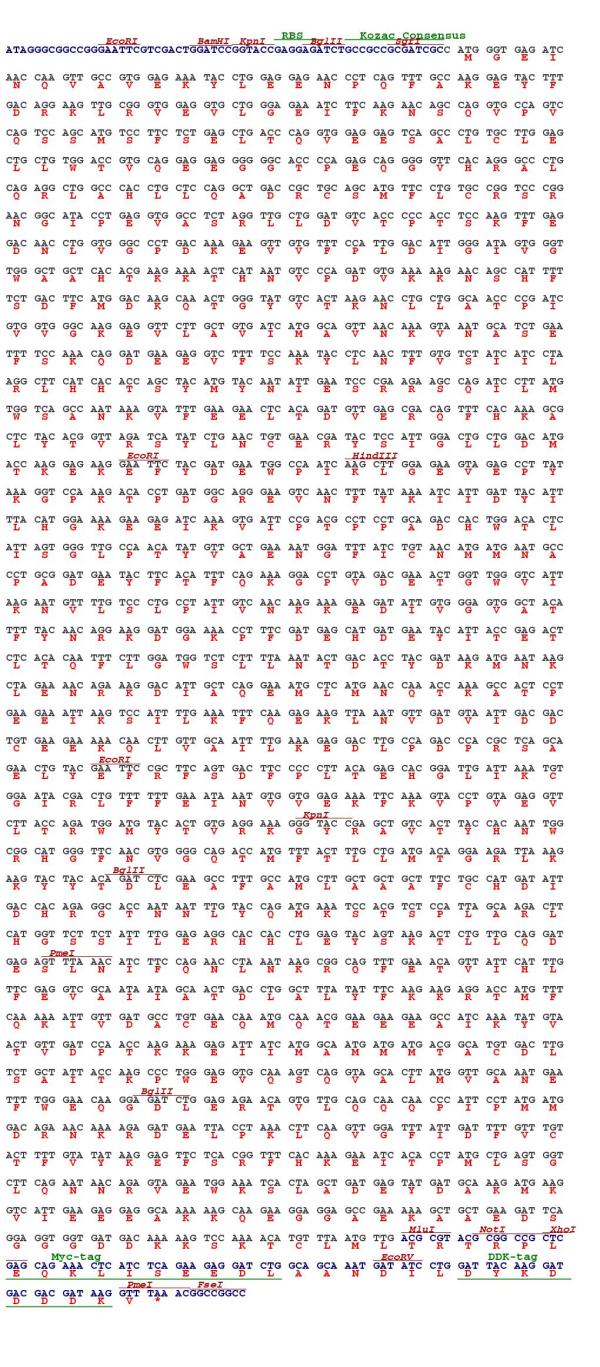

SgfI-MluI Cloning Scheme for this gene
|
Plasmid Map
|
| ACCN | NM_006204 |
| ORF Size | 2574 bp |
| OTI Disclaimer | The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info |
| OTI Annotation | This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene. |
| Components | The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water). |
| Reconstitution Method | 1. Centrifuge at 5,000xg for 5min. 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA. 3. Close the tube and incubate for 10 minutes at room temperature. 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom. 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C. |
| Note | Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required. |
| Shipping | Ambient |
| Reference Data | |
| RefSeq | NM_006204.4 |
| RefSeq Size | 2969 bp |
| RefSeq ORF | 2577 bp |
| Locus ID | 5146 |
| UniProt ID | P51160 |
| Cytogenetics | 10q23.33 |
| Protein Families | Druggable Genome |
| MW | 99 kDa |
| Summary | This gene encodes the alpha-prime subunit of cone phosphodiesterase, which is composed of a homodimer of two alpha-prime subunits and 3 smaller proteins of 11, 13, and 15 kDa. Mutations in this gene are associated with cone dystrophy type 4 (COD4). provided by RefSeq, Mar 2010 |
Reviews
Documents
| Product Manuals |
| FAQs |
| SDS |
Resources
"NM_006204" in other vectors (4)
| SKU | Description | Size | Price | |
|---|---|---|---|---|
| RC211842L3 | Lenti ORF clone of Human phosphodiesterase 6C, cGMP-specific, cone, alpha prime (PDE6C), Myc-DDK-tagged | 10 ug |
$1,086.00
|
|
| RC211842L4 | Lenti ORF clone of Human phosphodiesterase 6C, cGMP-specific, cone, alpha prime (PDE6C), mGFP tagged | 10 ug |
$1,086.00
|
|
| RG211842 | PDE6C (tGFP-tagged) - Human phosphodiesterase 6C, cGMP-specific, cone, alpha prime (PDE6C) | 10 ug |
$986.00
|
|
| SC303749 | PDE6C (untagged)-Human phosphodiesterase 6C, cGMP-specific, cone, alpha prime (PDE6C) | 10 ug |
$786.00
|
|
Citations
