CACNB2 (NM_201590) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC211555
CACNB2 (Myc-DDK-tagged)-Human calcium channel, voltage-dependent, beta 2 subunit (CACNB2), transcript variant 3
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $564.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA351024 Rabbit Polyclonal Anti-CACNB2 Antibody
100 ul
$205.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "CACNB2 or NM_201590"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol CACNB2
Synonyms CAB2; CACNLB2; CAVB2; MYSB
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC211555 representing NM_201590
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCTTGACAGACGCCTTATAGCTCCTCAAACTAAATACATTATTCCTGGGGGTTCGGCAGACTCCTACA
CTAGCCGTCCATCCGATTCCGATGTATCTCTGGAGGAGGACCGGGAGGCAGTGCGCAGAGAAGCGGAGCG
GCAGGCCCAGGCACAGTTGGAAAAAGCAAAGACAAAGCCCGTTGCATTTGCGGTTCGGACAAATGTCAGC
TACAGTGCGGCCCATGAAGATGATGTTCCAGTGCCTGGCATGGCCATCTCATTCGAAGCAAAAGATTTTC
TGCATGTTAAGGAAAAATTTAACAATGACTGGTGGATAGGGCGATTGGTAAAAGAAGGCTGTGAAATCGG
ATTCATTCCAAGCCCAGTCAAACTAGAAAACATGAGGCTGCAGCATGAACAGAGAGCCAAGCAAGGGAAA
TTCTACTCCAGTAAATCAGGAGGAAATTCATCATCCAGTTTGGGTGACATAGTACCTAGTTCCAGAAAAT
CAACACCTCCATCATCTGCTATAGACATAGATGCTACTGGCTTAGATGCAGAAGAAAATGATATTCCAGC
AAACCACCGCTCCCCTAAACCCAGTGCAAACAGTGTAACGTCACCCCACTCCAAAGAGAAAAGAATGCCC
TTCTTTAAGAAGACAGAGCACACTCCTCCGTATGATGTGGTACCTTCCATGCGACCAGTGGTCCTAGTGG
GCCCTTCTCTGAAGGGCTACGAGGTCACAGATATGATGCAAAAAGCGCTGTTTGATTTTTTAAAACACAG
ATTTGAAGGGCGGATATCCATCACAAGGGTCACCGCTGACATCTCGCTTGCCAAACGCTCGGTATTAAAC
AATCCCAGTAAGCACGCAATAATAGAAAGATCCAACACAAGGTCAAGCTTAGCGGAAGTTCAGAGTGAAA
TCGAAAGGATTTTTGAACTTGCAAGAACATTGCAGTTGGTGGTCCTTGACGCGGATACAATTAATCATCC
AGCTCAACTCAGTAAAACCTCCTTGGCCCCTATTATAGTATATGTAAAGATTTCTTCTCCTAAGGTTTTA
CAAAGGTTAATAAAATCTCGAGGGAAATCTCAAGCTAAACACCTCAACGTCCAGATGGTAGCAGCTGATA
AACTGGCTCAGTGTCCTCCAGAGCTGTTCGATGTGATCTTGGATGAGAACCAGCTTGAGGATGCCTGTGA
GCACCTTGCCGACTATCTGGAGGCCTACTGGAAGGCCACCCATCCTCCCAGCAGTAGCCTCCCCAACCCT
CTCCTTAGCCGTACATTAGCCACTTCAAGTCTGCCTCTTAGCCCCACCCTAGCCTCTAATTCACAGGGTT
CTCAAGGTGATCAGAGGACTGATCGCTCCGCTCCTATCCGTTCTGCTTCCCAAGCTGAAGAAGAACCTAG
TGTGGAACCAGTCAAGAAATCCCAGCACCGCTCTTCCTCCTCAGCCCCACACCACAACCATCGCAGTGGG
ACAAGTCGCGGCCTCTCCAGGCAAGAGACATTTGACTCGGAAACCCAGGAGAGTCGAGACTCTGCCTACG
TAGAGCCAAAGGAAGATTATTCCCATGACCACGTGGACCACTATGCCTCACACCGTGACCACAACCACAG
AGACGAGACCCACGGGAGCAGTGACCACAGACACAGGGAGTCCCGGCACCGTTCCCGGGACGTGGATCGA
GAGCAGGACCACAACGAGTGCAACAAGCAGCGCAGCCGTCATAAATCCAAGGATCGCTACTGTGAAAAGG
ATGGAGAAGTGATATCAAAAAAACGGAATGAGGCTGGGGAGTGGAACAGGGATGTTTACATCCGCCAA

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC211555 representing NM_201590
Red=Cloning site Green=Tags(s)

MLDRRLIAPQTKYIIPGGSADSYTSRPSDSDVSLEEDREAVRREAERQAQAQLEKAKTKPVAFAVRTNVS
YSAAHEDDVPVPGMAISFEAKDFLHVKEKFNNDWWIGRLVKEGCEIGFIPSPVKLENMRLQHEQRAKQGK
FYSSKSGGNSSSSLGDIVPSSRKSTPPSSAIDIDATGLDAEENDIPANHRSPKPSANSVTSPHSKEKRMP
FFKKTEHTPPYDVVPSMRPVVLVGPSLKGYEVTDMMQKALFDFLKHRFEGRISITRVTADISLAKRSVLN
NPSKHAIIERSNTRSSLAEVQSEIERIFELARTLQLVVLDADTINHPAQLSKTSLAPIIVYVKISSPKVL
QRLIKSRGKSQAKHLNVQMVAADKLAQCPPELFDVILDENQLEDACEHLADYLEAYWKATHPPSSSLPNP
LLSRTLATSSLPLSPTLASNSQGSQGDQRTDRSAPIRSASQAEEEPSVEPVKKSQHRSSSSAPHHNHRSG
TSRGLSRQETFDSETQESRDSAYVEPKEDYSHDHVDHYASHRDHNHRDETHGSSDHRHRESRHRSRDVDR
EQDHNECNKQRSRHKSKDRYCEKDGEVISKKRNEAGEWNRDVYIRQ

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_201590
ORF Size 1818 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_201590.3
RefSeq Size 3375 bp
RefSeq ORF 1821 bp
Locus ID 783
UniProt ID Q08289
Cytogenetics 10p12.33-p12.31
Protein Families Druggable Genome, Ion Channels: Other
Protein Pathways Arrhythmogenic right ventricular cardiomyopathy (ARVC), Cardiac muscle contraction, Dilated cardiomyopathy, Hypertrophic cardiomyopathy (HCM), MAPK signaling pathway
MW 68 kDa
Summary This gene encodes a subunit of a voltage-dependent calcium channel protein that is a member of the voltage-gated calcium channel superfamily. The gene product was originally identified as an antigen target in Lambert-Eaton myasthenic syndrome, an autoimmune disorder. Mutations in this gene are associated with Brugada syndrome. Alternatively spliced variants encoding different isoforms have been described. provided by RefSeq, Feb 2013
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_201590" in other vectors (4)
SKU Description Size Price
RC211555L3 Lenti-ORF clone of CACNB2 (Myc-DDK-tagged)-Human calcium channel, voltage-dependent, beta 2 subunit (CACNB2), transcript variant 3 10 ug
$864.00
RC211555L4 Lenti-ORF clone of CACNB2 (mGFP-tagged)-Human calcium channel, voltage-dependent, beta 2 subunit (CACNB2), transcript variant 3 10 ug
$864.00
RG211555 CACNB2 (tGFP-tagged) - Human calcium channel, voltage-dependent, beta 2 subunit (CACNB2), transcript variant 3 10 ug
$489.00 $764.00
SC308065 CACNB2 (untagged)-Human calcium channel, voltage-dependent, beta 2 subunit (CACNB2), transcript variant 3 10 ug
$565.00

Plasmid Map for RC211555

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

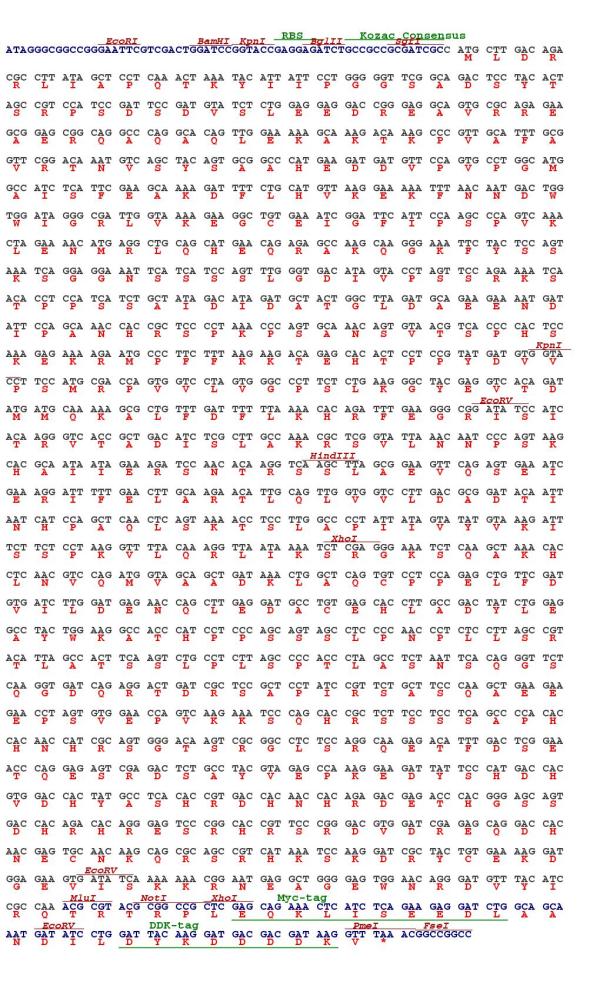

Cloning scheme for RC211555
Circular map for RC211555

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
