PRDM16 (NM_199454) Human Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
RC211534
PRDM16 (Myc-DDK-tagged)-Human PR domain containing 16 (PRDM16), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
  $1,203.00
6 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA306900 Rabbit Polyclonal PRDM16 Antibody
100 ug
$640.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "PRDM16 or NM_199454"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol PRDM16
Synonyms CMD1LL; KMT8F; LVNC8; MEL1; PFM13
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC211534 representing NM_199454
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCGATCCAAGGCGAGGGCGAGGAAGCTAGCCAAAAGTGACGGTGACGTTGTAAATAATATGTATGAGC
CCAACCGGGACCTGCTGGCCAGCCACAGCGCGGAGGACGAGGCCGAGGACAGTGCCATGTCGCCCATCCC
CGTGGGGCCACCGTCCCCCTTCCCCACCAGCGAGGACTTCACCCCCAAGGAGGGCTCGCCGTACGAGGCC
CCTGTCTACATTCCTGAAGACATTCCGATCCCAGCAGACTTCGAGCTCCGAGAGTCCTCCATCCCAGGGG
CTGGCCTGGGGGTCTGGGCCAAGAGGAAGATGGAAGCCGGGGAGAGGCTGGGCCCCTGCGTGGTGGTGCC
CCGGGCGGCGGCAAAGGAGACAGACTTCGGATGGGAGCAAATACTGACGGACGTGGAAGTGTCGCCCCAG
GAAGGCTGCATCACAAAGATCTCCGAAGACCTGGGCAGTGAGAAGTTCTGCGTGGATGCAAATCAGGCGG
GGGCTGGCAGCTGGCTCAAGTACATCCGTGTGGCGTGCTCCTGCGATGACCAGAACCTCACCATGTGTCA
GATCAGTGAGCAGATTTACTATAAAGTCATTAAGGACATTGAGCCAGGTGAGGAGCTGCTGGTGCACGTG
AAGGAAGGCGTCTACCCCCTGGGCACAGTGCCGCCCGGCCTGGACGAGGAGCCCACGTTCCGCTGTGACG
AGTGTGACGAACTCTTCCAGTCCAAGCTGGACCTGCGGCGCCATAAGAAGTACACGTGTGGCTCAGTGGG
GGCTGCGCTCTACGAGGGCCTGGCTGAGGAGCTCAAGCCCGAGGGCCTTGGCGGTGGCAGCGGCCAAGCC
CACGAGTGCAAGGACTGCGAGCGGATGTTCCCCAACAAGTACAGCCTGGAGCAGCACATGGTCATCCACA
CGGAGGAGCGCGAGTACAAATGCGACCAGTGTCCCAAGGCCTTCAACTGGAAGTCCAACCTCATCCGCCA
CCAGATGTCCCACGACAGCGGCAAACGCTTCGAATGTGAAAACTGCGTGAAGGTGTTCACGGACCCCAGC
AACCTTCAGCGGCACATCCGCTCGCAGCACGTGGGCGCTCGGGCCCACGCCTGCCCCGACTGCGGGAAGA
CCTTCGCCACGTCCTCCGGCCTCAAGCAGCACAAGCATATCCACAGCACGGTGAAGCCTTTCATATGTGA
GGTCTGCCACAAGTCCTACACGCAGTTCTCCAACCTGTGCCGGCACAAGCGGATGCACGCCGACTGCCGC
ACGCAGATCAAGTGCAAGGACTGTGGCCAGATGTTCAGCACTACCTCCTCCCTCAACAAGCACCGGCGCT
TCTGCGAGGGCAAGAACCATTACACGCCGGGCGGCATCTTTGCCCCGGGCCTGCCCTTGACCCCCAGCCC
CATGATGGACAAGGCAAAACCCTCCCCCAGCCTCAATCACGCCAGCCTGGGCTTCAACGAGTACTTTCCC
TCCAGGCCGCACCCGGGGAGCCTGCCCTTCTCCACGGCGCCTCCCACGTTCCCCGCACTCACCCCCGGCT
TCCCGGGCATCTTCCCTCCATCCTTGTACCCCCGGCCGCCTCTGCTACCTCCCACATCGCTGCTCAAGAG
CCCCCTGAACCACACCCAGGACGCCAAGCTCCCCAGTCCCCTGGGGAACCCAGCCCTGCCCCTGGTCTCC
GCCGTCAGCAACAGCAGCCAGGGCACGACGGCAGCTGCGGGGCCCGAGGAGAAGTTCGAGAGCCGCCTGG
AGGACTCCTGTGTGGAGAAGCTGAAGACCAGGAGCAGCGACATGTCGGACGGCAGTGACTTTGAGGACGT
CAACACCACCACGGGGACCGACCTGGACACGACCACGGGGACGGGCTCGGACCTGGACAGCGACGTGGAC
AGCGACCCTGACAAGGACAAGGGCAAGGGCAAGTCCGCCGAGGGCCAGCCCAAGTTTGGGGGCGGCTTGG
CGCCCCCGGGGGCCCCGAACAGCGTGGCCGAGGTGCCTGTCTTCTATTCCCAGCACTCATTCTTCCCGCC
ACCCGACGAGCAGCTGCTGACTGCAACGGGCGCCGCCGGGGACTCCATCAAGGCCATCGCATCCATTGCC
GAGAAGTACTTTGGCCCCGGCTTCATGGGGATGCAGGAGAAGAAGCTGGGCTCGCTCCCCTACCACTCGG
CGTTCCCCTTCCAGTTCCTGCCCAACTTCCCCCACTCCCTTTACCCCTTCACGGACCGAGCCCTCGCCCA
CAACTTGCTGGTCAAGGCCGAGCCAAAGTCACCCCGGGACGCCCTCAAGGTGGGCGGCCCCAGTGCCGAG
TGCCCCTTTGATCTCACCACCAAGCCCAAAGACGTGAAGCCCATCCTGCCCATGCCCAAGGGCCCCTCGG
CCCCCGCATCCGGCGAGGAGCAGCCGCTGGACCTGAGCATCGGCAGCCGGGCCCGTGCCAGCCAAAACGG
CGGCGGGCGGGAGCCCCGCAAGAACCACGTCTATGGGGAACGCAAGCTGGGCGCCGGCGAGGGGCTGCCC
CAGGTGTGCCCGGCGCGGATGCCCCAGCAGCCCCCGCTCCACTACGCCAAGCCCTCGCCCTTCTTCATGG
ACCCCATCTACAGCAGGGTAGAAAAGCGGAAGGTCACAGACCCCGTGGGAGCCCTGAAGGAGAAGTACCT
GCGGCCGTCCCCGCTGCTCTTCCACCCCCAGATGTCAGCCATAGAGACCATGACAGAGAAGCTGGAGAGC
TTTGCAGCCATGAAGGCGGACTCGGGCAGCTCCCTGCAGCCCCTCCCCCACCACCCCTTCAACTTCCGGT
CCCCACCCCCAACGCTCTCCGACCCCATCCTCAGGAAGGGCAAGGAGCGATACACGTGCAGGTACTGTGG
GAAGATCTTCCCCAGATCAGCCAATCTCACCAGACACCTGAGGACGCACACTGGGGAGCAGCCGTACAGG
TGTAAGTACTGCGACCGCTCCTTCAGCATCTCTTCGAACCTCCAGCGGCACGTCCGGAACATCCACAACA
AGGAGAAGCCTTTCAAGTGCCACCTGTGCAACCGCTGCTTCGGGCAGCAGACCAACCTGGACCGGCACCT
CAAGAAGCACGAGCACGAGAACGCACCAGTGAGCCAGCACCCCGGGGTCCTCACGAACCACCTGGGGACC
AGCGCGTCCTCTCCCACCTCAGAGTCGGACAACCACGCACTTTTAGACGAGAAAGAAGACTCTTATTTCT
CGGAAATCAGAAACTTTATTGCCAATAGTGAGATGAACCAAGCATCAACGCGAACAGAGAAACGGGCGGA
CATGCAGATCGTGGACGGCAGTGCCCAGTGTCCAGGCCTAGCCAGTGAGAAGCAGGAGGACGTGGAGGAG
GAGGACGACGATGACCTGGAGGAGGACGATGAGGACAGCCTGGCCGGGAAGTCGCAGGATGACACCGTGT
CCCCCGCACCCGAGCCCCAGGCCGCCTACGAGGATGAGGAGGATGAGGAGCCAGCCGCCTCCCTGGCCGT
GGGCTTTGACCACACCCGAAGGTGTGCTGAGGACCACGAAGGCGGTCTGTTAGCTTTGGAGCCGATGCCG
ACTTTTGGGAAGGGGCTGGACCTCCGCAGAGCAGCTGAGGAAGCATTTGAAGTTAAAGATGTGCTTAATT
CCACCTTAGATTCTGAGGCTTTAAAACATACACTGTGCAGGCAGGCTAAGAACCAGGGTTCTCTGGACGC
TTGGTTGAAGGTCACTGGAGCCACGTCGGAGTCTGGAGCATTTCACCCCATCAACCACCTC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC211534 representing NM_199454
Red=Cloning site Green=Tags(s)

MRSKARARKLAKSDGDVVNNMYEPNRDLLASHSAEDEAEDSAMSPIPVGPPSPFPTSEDFTPKEGSPYEA
PVYIPEDIPIPADFELRESSIPGAGLGVWAKRKMEAGERLGPCVVVPRAAAKETDFGWEQILTDVEVSPQ
EGCITKISEDLGSEKFCVDANQAGAGSWLKYIRVACSCDDQNLTMCQISEQIYYKVIKDIEPGEELLVHV
KEGVYPLGTVPPGLDEEPTFRCDECDELFQSKLDLRRHKKYTCGSVGAALYEGLAEELKPEGLGGGSGQA
HECKDCERMFPNKYSLEQHMVIHTEEREYKCDQCPKAFNWKSNLIRHQMSHDSGKRFECENCVKVFTDPS
NLQRHIRSQHVGARAHACPDCGKTFATSSGLKQHKHIHSTVKPFICEVCHKSYTQFSNLCRHKRMHADCR
TQIKCKDCGQMFSTTSSLNKHRRFCEGKNHYTPGGIFAPGLPLTPSPMMDKAKPSPSLNHASLGFNEYFP
SRPHPGSLPFSTAPPTFPALTPGFPGIFPPSLYPRPPLLPPTSLLKSPLNHTQDAKLPSPLGNPALPLVS
AVSNSSQGTTAAAGPEEKFESRLEDSCVEKLKTRSSDMSDGSDFEDVNTTTGTDLDTTTGTGSDLDSDVD
SDPDKDKGKGKSAEGQPKFGGGLAPPGAPNSVAEVPVFYSQHSFFPPPDEQLLTATGAAGDSIKAIASIA
EKYFGPGFMGMQEKKLGSLPYHSAFPFQFLPNFPHSLYPFTDRALAHNLLVKAEPKSPRDALKVGGPSAE
CPFDLTTKPKDVKPILPMPKGPSAPASGEEQPLDLSIGSRARASQNGGGREPRKNHVYGERKLGAGEGLP
QVCPARMPQQPPLHYAKPSPFFMDPIYSRVEKRKVTDPVGALKEKYLRPSPLLFHPQMSAIETMTEKLES
FAAMKADSGSSLQPLPHHPFNFRSPPPTLSDPILRKGKERYTCRYCGKIFPRSANLTRHLRTHTGEQPYR
CKYCDRSFSISSNLQRHVRNIHNKEKPFKCHLCNRCFGQQTNLDRHLKKHEHENAPVSQHPGVLTNHLGT
SASSPTSESDNHALLDEKEDSYFSEIRNFIANSEMNQASTRTEKRADMQIVDGSAQCPGLASEKQEDVEE
EDDDDLEEDDEDSLAGKSQDDTVSPAPEPQAAYEDEEDEEPAASLAVGFDHTRRCAEDHEGGLLALEPMP
TFGKGLDLRRAAEEAFEVKDVLNSTLDSEALKHTLCRQAKNQGSLDAWLKVTGATSESGAFHPINHL

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_199454
ORF Size 3771 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_199454.3
RefSeq Size 8674 bp
RefSeq ORF 3774 bp
Locus ID 63976
UniProt ID Q9HAZ2
Cytogenetics 1p36.32
MW 138.2 kDa
Summary The reciprocal translocation t(1;3)(p36;q21) occurs in a subset of myelodysplastic syndrome (MDS) and acute myeloid leukemia (AML). This gene is located near the 1p36.3 breakpoint and has been shown to be specifically expressed in the t(1:3)(p36,q21)-positive MDS/AML. The protein encoded by this gene is a zinc finger transcription factor and contains an N-terminal PR domain. The translocation results in the overexpression of a truncated version of this protein that lacks the PR domain, which may play an important role in the pathogenesis of MDS and AML. Alternatively spliced transcript variants encoding distinct isoforms have been reported. provided by RefSeq, Jul 2008
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_199454" in other vectors (4)
SKU Description Size Price
RC211534L3 Lenti-ORF clone of PRDM16 (Myc-DDK-tagged)-Human PR domain containing 16 (PRDM16), transcript variant 2 10 ug
$1,503.00
RC211534L4 Lenti-ORF clone of PRDM16 (mGFP-tagged)-Human PR domain containing 16 (PRDM16), transcript variant 2 10 ug
$1,503.00
RG211534 PRDM16 (tGFP-tagged) - Human PR domain containing 16 (PRDM16), transcript variant 2 10 ug
$1,403.00
SC307983 PRDM16 (untagged)-Human PR domain containing 16 (PRDM16), transcript variant 2 10 ug
$1,094.00

Plasmid Map for RC211534

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

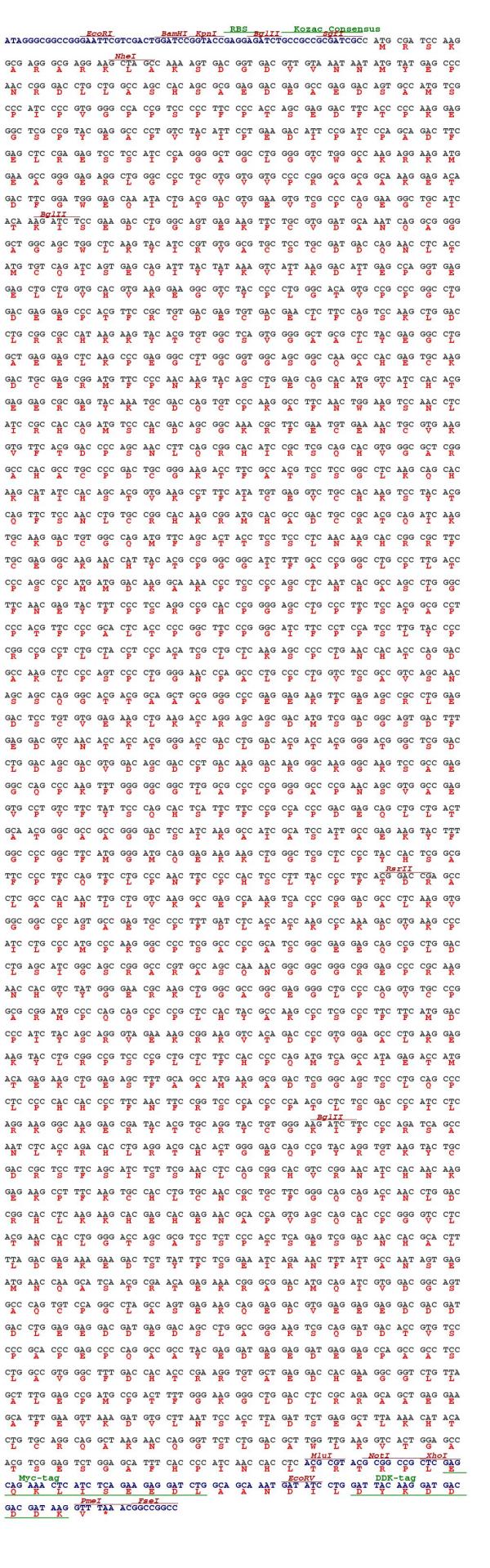

Cloning scheme for RC211534
Circular map for RC211534

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
