Tropomyosin 3 (TPM3) (NM_153649) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC209904
TPM3 (Myc-DDK-tagged)-Human tropomyosin 3 (TPM3), transcript variant 2
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $300.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA326995 TPM3 Rabbit Polyclonal Antibody
100 ul
$410.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "Tropomyosin 3 or NM_153649"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol Tropomyosin 3
Synonyms CAPM1; CFTD; HEL-189; HEL-S-82p; hscp30; NEM1; OK/SW-cl.5; TM-5; TM3; TM5; TM30; TM30nm; TPM3nu; TPMsk3; TRK
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC209904 representing NM_153649
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCTGGGATCACCACCATCGAGGCGGTGAAGCGCAAGATCCAGGTTCTGCAGCAGCAGGCAGATGATG
CAGAGGAGCGAGCTGAGCGCCTCCAGCGAGAAGTTGAGGGAGAAAGGCGGGCCCGGGAACAGGCTGAGGC
TGAGGTGGCCTCCTTGAACCGTAGGATCCAGCTGGTTGAAGAAGAGCTGGACCGTGCTCAGGAGCGCCTG
GCCACTGCCCTGCAAAAGCTGGAAGAAGCTGAAAAAGCTGCTGATGAGAGTGAGAGAGGTATGAAGGTTA
TTGAAAACCGGGCCTTAAAAGATGAAGAAAAGATGGAACTCCAGGAAATCCAACTCAAAGAAGCTAAGCA
CATTGCAGAAGAGGCAGATAGGAAGTATGAAGAGGTGGCTCGTAAGTTGGTGATCATTGAAGGAGACTTG
GAACGCACAGAGGAACGAGCTGAGCTGGCAGAGTCCCGTTGCCGAGAGATGGATGAGCAGATTAGACTGA
TGGACCAGAACCTGAAGTGTCTGAGTGCTGCTGAAGAAAAGTACTCTCAAAAAGAAGATAAATATGAGGA
AGAAATCAAGATTCTTACTGATAAACTCAAGGAGGCAGAGACCCGTGCTGAGTTTGCTGAGAGATCGGTA
GCCAAGCTGGAAAAGACAATTGATGACCTGGAAGATAAACTGAAATGCACCAAAGAGGAGCACCTCTGTA
CACAAAGGATGCTGGACCAGACCCTGCTTGACCTGAATGAGATG

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC209904 representing NM_153649
Red=Cloning site Green=Tags(s)

MAGITTIEAVKRKIQVLQQQADDAEERAERLQREVEGERRAREQAEAEVASLNRRIQLVEEELDRAQERL
ATALQKLEEAEKAADESERGMKVIENRALKDEEKMELQEIQLKEAKHIAEEADRKYEEVARKLVIIEGDL
ERTEERAELAESRCREMDEQIRLMDQNLKCLSAAEEKYSQKEDKYEEEIKILTDKLKEAETRAEFAERSV
AKLEKTIDDLEDKLKCTKEEHLCTQRMLDQTLLDLNEM

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_153649
ORF Size 744 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_153649.4
RefSeq Size 3212 bp
RefSeq ORF 747 bp
Locus ID 7170
UniProt ID P06753, A0A0S2Z4G4
Cytogenetics 1q21.3
Domains Tropomyosin
Protein Pathways Cardiac muscle contraction, Dilated cardiomyopathy, Hypertrophic cardiomyopathy (HCM), Pathways in cancer, Thyroid cancer
MW 28.9 kDa
Summary This gene encodes a member of the tropomyosin family of actin-binding proteins. Tropomyosins are dimers of coiled-coil proteins that provide stability to actin filaments and regulate access of other actin-binding proteins. Mutations in this gene result in autosomal dominant nemaline myopathy and other muscle disorders. This locus is involved in translocations with other loci, including anaplastic lymphoma receptor tyrosine kinase (ALK) and neurotrophic tyrosine kinase receptor type 1 (NTRK1), which result in the formation of fusion proteins that act as oncogenes. There are numerous pseudogenes for this gene on different chromosomes. Alternative splicing results in multiple transcript variants. provided by RefSeq, May 2013
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_153649" in other vectors (6)
SKU Description Size Price
RC209904L1 Lenti ORF clone of Human tropomyosin 3 (TPM3), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC209904L2 Lenti ORF clone of Human tropomyosin 3 (TPM3), transcript variant 2, mGFP tagged 10 ug
$600.00
RC209904L3 Lenti ORF clone of Human tropomyosin 3 (TPM3), transcript variant 2, Myc-DDK-tagged 10 ug
$600.00
RC209904L4 Lenti ORF clone of Human tropomyosin 3 (TPM3), transcript variant 2, mGFP tagged 10 ug
$600.00
RG209904 TPM3 (tGFP-tagged) - Human tropomyosin 3 (TPM3), transcript variant 2 10 ug
$500.00
SC111042 TPM3 (untagged)-Human tropomyosin 3 (TPM3), transcript variant 2 10 ug
$300.00

Plasmid Map for RC209904

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

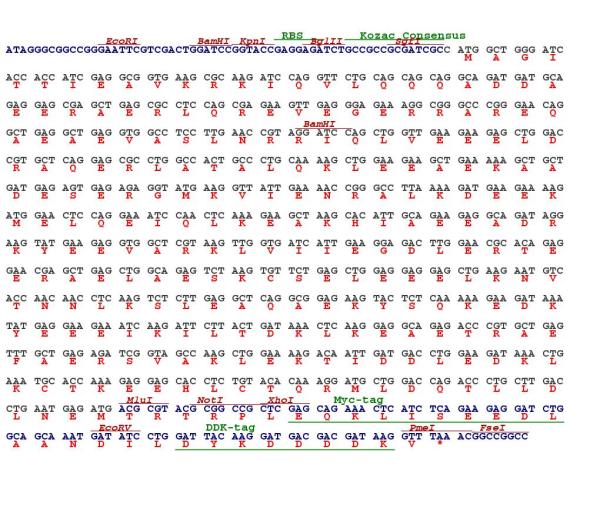

Cloning scheme for RC209904
Circular map for RC209904

file-alt Citations
