TMCO4 (NM_181719) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC208849
TMCO4 (Myc-DDK-tagged)-Human transmembrane and coiled-coil domains 4 (TMCO4)
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $590.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA333410 Rabbit Polyclonal Anti-TMCO4 Antibody
100 ul
$585.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "TMCO4 or NM_181719"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol TMCO4
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC208849 representing NM_181719
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCCATGTGGAACAGGCCATGCCAGAGGCTGCCTCAGCAGCCTCTGGTAGCTGAGCCCACTGCAGAGG
GGGAGCCACACCTGCCCACGGGCCGGGAGCTGACTGAGGCCAACCGCTTCGCCTATGCTGCCCTCTGTGG
CATCTCCCTGTCCCAGTTATTTCCTGAACCCGAACACAGCTCCTTCTGCACAGAGTTCATGGCAGGCCTG
GTGCAGTGGCTGGAGTTGTCTGAAGCTGTCTTGCCAACCATGACTGCTTTTGCGAGCGGCCTGGGAGGTG
AAGGAGCAGATGTGTTTGTTCAAATTTTACTGAAGGACCCCATCTTGAAGGACGACCCGACGGTGATCAC
TCAGGACCTTCTGAGCTTCTCACTCAAGGATGGGCACTATGACGCCCGGGCCAGAGTCCTCGTTTGCCAC
ATGACCTCCCTGCTCCAAGTGCCCTTGGAGGAGCTGGATGTCCTTGAAGAGATGTTCCTGGAGAGCCTGA
AGGAAATCAAAGAAGAGGAATCTGAAATGGCCGAGGCATCCCGAAAGAAGAAAGAAAACCGGAGGAAATG
GAAGCGTTATCTCCTGATAGGCCTGGCGACTGTCGGAGGCGGAACGGTGATCGGTGTGACTGGAGGTCTA
GCTGCACCCCTTGTTGCCGCTGGAGCAGCGACGATTATTGGCAGCGCCGGGGCAGCGGCTCTGGGCTCAG
CAGCCGGCATAGCCATCATGACCTCGCTGTTTGGTGCAGCTGGAGCTGGCCTGACAGGATACAAGATGAA
GAAGCGAGTGGGAGCCATTGAAGAGTTCACGTTTCTGCCTCTGACGGAGGGCAGGCAGCTGCACATCACC
ATCGCCGTCACGGGGTGGCTCGCTTCTGGCAAATACCGCACCTTCAGTGCCCCGTGGGCTGCCCTGGCCC
ACAGCCGTGAGCAGTACTGCCTGGCCTGGGAAGCCAAGTACCTGATGGAGCTCGGCAATGCCCTGGAGAC
CATCCTCAGTGGTCTCGCCAACATGGTGGCCCAGGAGGCCCTAAAGTACACAGTGTTGTCTGGCATTGTG
GCTGCCCTGACCTGGCCAGCCTCACTCCTCAGTGTCGCCAATGTCATCGACAACCCCTGGGGGGTGTGTC
TCCATCGATCAGCAGAGGTTGGCAAGCACCTGGCCCACATCCTGCTCTCCCGGCAGCAGGGGCGACGACC
TGTCACCTTGATTGGCTTCAGCCTGGGAGCCAGAGTCATCTACTTCTGTCTGCAGGAGATGGCTCAAGAG
AAAGATTGCCAAGGAATCATCGAGGACGTCATCCTGCTGGGTGCGCCTGTGGAGGGAGAAGCCAAGCATT
GGGAGCCTTTCCGGAAGGTGGTGTCCGGGAGGATCATCAACGGCTACTGCAGGGGAGACTGGCTGCTGAG
TTTCGTGTACCGCACATCCTCGGTGCAGCTCCGTGTCGCCGGCCTACAGCCCGTGCTGCTGCAGGACAGG
AGGGTGGAGAACGTGGACCTGACCTCTGTGGTCAGCGGCCACCTGGACTATGCCAAGCAGATGGATGCCA
TCCTGAAGGCCGTGGGCATCCGCACCAAGCCAGGCTGGGACGAGAAGGGGCTCTTGCTGGCCCCAGGCTG
CCTGCCCTCCGAGGAGCCTCGCCAGGCAGCAGCTGCCGCCTCATCAGGCGAGACCCCCCACCAGGTTGGG
CAAACCCAGGGTCCCATATCCGGAGACACCTCCAAATTGGCCATGTCCACAGACCCCAGCCAAGCCCAGG
TGCCAGTAGGGCTGGACCAGTCTGAAGGGGCCTCCCTTCCTGCTGCTGCCAGCCCTGAAAGGCCCCCCAT
CTGCAGCCATGGCATGGACCCCAACCCACTGGGCTGCCCCGATTGTGCCTGCAAGACCCAGGGCCCCAGC
ACGGGGCTGGAC

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC208849 representing NM_181719
Red=Cloning site Green=Tags(s)

MAMWNRPCQRLPQQPLVAEPTAEGEPHLPTGRELTEANRFAYAALCGISLSQLFPEPEHSSFCTEFMAGL
VQWLELSEAVLPTMTAFASGLGGEGADVFVQILLKDPILKDDPTVITQDLLSFSLKDGHYDARARVLVCH
MTSLLQVPLEELDVLEEMFLESLKEIKEEESEMAEASRKKKENRRKWKRYLLIGLATVGGGTVIGVTGGL
AAPLVAAGAATIIGSAGAAALGSAAGIAIMTSLFGAAGAGLTGYKMKKRVGAIEEFTFLPLTEGRQLHIT
IAVTGWLASGKYRTFSAPWAALAHSREQYCLAWEAKYLMELGNALETILSGLANMVAQEALKYTVLSGIV
AALTWPASLLSVANVIDNPWGVCLHRSAEVGKHLAHILLSRQQGRRPVTLIGFSLGARVIYFCLQEMAQE
KDCQGIIEDVILLGAPVEGEAKHWEPFRKVVSGRIINGYCRGDWLLSFVYRTSSVQLRVAGLQPVLLQDR
RVENVDLTSVVSGHLDYAKQMDAILKAVGIRTKPGWDEKGLLLAPGCLPSEEPRQAAAAASSGETPHQVG
QTQGPISGDTSKLAMSTDPSQAQVPVGLDQSEGASLPAAASPERPPICSHGMDPNPLGCPDCACKTQGPS
TGLD

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_181719
ORF Size 1902 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_181719.6
RefSeq Size 2989 bp
RefSeq ORF 1905 bp
Locus ID 255104
UniProt ID Q5TGY1
Cytogenetics 1p36.13
Protein Families Transmembrane
MW 67.9 kDa
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_181719" in other vectors (4)
SKU Description Size Price
RC208849L3 Lenti-ORF clone of TMCO4 (Myc-DDK-tagged)-Human transmembrane and coiled-coil domains 4 (TMCO4) 10 ug
$890.00
RC208849L4 Lenti-ORF clone of TMCO4 (mGFP-tagged)-Human transmembrane and coiled-coil domains 4 (TMCO4) 10 ug
$890.00
RG208849 TMCO4 (tGFP-tagged) - Human transmembrane and coiled-coil domains 4 (TMCO4) 10 ug
$790.00
SC107317 TMCO4 (untagged)-Human transmembrane and coiled-coil domains 4 (TMCO4) 10 ug
$591.00

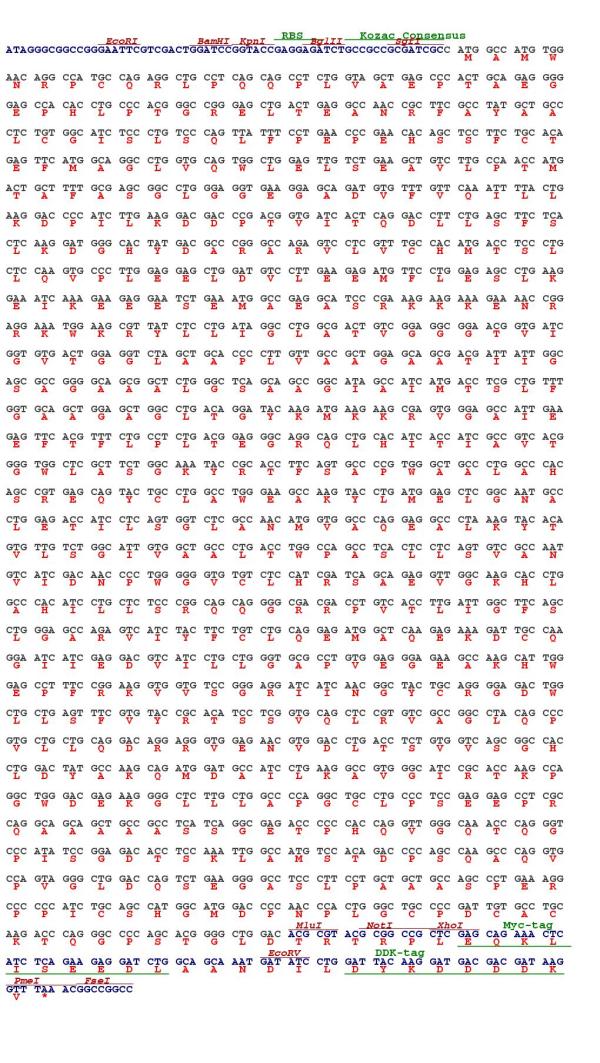

Plasmid Map for RC208849

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

Cloning scheme for RC208849
Circular map for RC208849
