Mitofilin (IMMT) (NM_006839) Human Tagged ORF Clone

  • Product Brand Image
Be the first to review this product
SKU
RC201854
IMMT (Myc-DDK-tagged)-Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1
ORF Plasmid:
DDK tGFP
Lentiviral Particles:
DDK mGFP DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
  $694.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (5)

TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "Mitofilin or NM_006839"

Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol Mitofilin
Synonyms HMP; Mic60; MICOS60; MINOS2; P87; P87/89; P89; PIG4; PIG52
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC201854 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCTGCGGGCCTGTCAGTTATCGGGTGTGACCGCCGCCGCCCAGAGTTGTCTCTGTGGGAAGTTTGTCC
TCCGTCCATTGCGACCATGCCGCAGATACTCTACTTCAGGCAGCTCTGGGTTGACTACTGGCAAAATTGC
TGGAGCTGGCCTTTTGTTTGTTGGTGGAGGTATTGGTGGCACTATCCTATATGCCAAATGGGATTCCCAT
TTCCGGGAAAGTGTAGAGAAAACCATACCTTACTCAGACAAACTCTTCGAGATGGTTCTTGGTCCTGCAG
CTTATAATGTTCCATTGCCAAAGAAATCGATTCAGTCGGGTCCACTAAAAATCTCTAGTGTATCAGAAGT
AATGAAAGAATCTAAACAGCCTGCCTCACAACTCCAAAAACAAAAGGGAGATACTCCAGCTTCAGCAACA
GCACCTACAGAAGCGGCTCAAATTATTTCTGCAGCAGGTGATACCCTGTCGGTCCCAGCCCCTGCAGTTC
AGCCTGAGGAATCTTTAAAAACTGATCACCCTGAAATTGGTGAAGGAAAACCCACACCTGCACTTTCAGA
AGAAGCATCCTCATCTTCTATAAGGGAGCGACCACCTGAAGAAGTTGCAGCTCGCCTTGCACAACAGGAA
AAACAAGAACAAGTTAAAATTGAGTCTCTAGCCAAGAGCTTAGAAGATGCTCTGAGGCAAACTGCAAGTG
TCACTCTGCAGGCTATTGCAGCTCAGAATGCTGCGGTCCAGGCTGTCAATGCACACTCCAACATATTGAA
AGCCGCCATGGACAATTCTGAGATTGCAGGCGAGAAGAAATCTGCTCAGTGGCGCACAGTGGAGGGTGCA
TTGAAGGAACGCAGAAAGGCAGTAGATGAAGCTGCCGATGCCCTTCTCAAAGCCAAAGAAGAGTTAGAGA
AGATGAAAAGTGTGATTGAAAATGCAAAGAAAAAAGAGGTTGCTGGGGCCAAGCCTCATATAACTGCTGC
AGAGGGTAAACTTCACAACATGATAGTTGATCTGGATAATGTGGTCAAAAAGGTCCAAGCAGCTCAGTCT
GAGGCTAAGGTTGTATCTCAGTATCATGAGCTGGTGGTCCAAGCTCGGGATGACTTTAAACGAGAGCTGG
ACAGTATTACTCCAGAAGTCCTTCCTGGGTGGAAAGGAATGAGTGTTTCAGACTTAGCTGACAAGCTCTC
TACTGATGATCTGAACTCCCTCATTGCTCATGCACATCGTCGTATTGATCAGCTGAACAGAGAGCTGGCA
GAACAGAAGGCCACCGAAAAGCAGCACATCACGTTAGCCTTGGAGAAACAAAAGCTGGAAGAAAAGCGGG
CATTTGACTCTGCAGTAGCAAAAGCATTAGAACATCACAGAAGTGAAATACAGGCTGAACAGGACAGAAA
GATAGAAGAAGTCAGAGATGCCATGGAAAATGAAATGAGAACCCAGCTTCGCCGACAGGCAGCTGCCCAC
ACTGATCACTTGCGAGATGTCCTTAGGGTACAAGAACAGGAATTGAAGTCTGAATTTGAGCAGAACCTGT
CTGAGAAACTCTCTGAACAAGAATTACAATTTCGTCGTCTCAGTCAAGAGCAAGTTGACAACTTTACTCT
GGATATAAATACTGCCTATGCCAGACTCAGAGGAATCGAACAGGCTGTTCAGAGCCATGCAGTTGCTGAA
GAGGAAGCCAGAAAAGCCCACCAACTCTGGCTTTCAGTGGAGGCATTAAAGTACAGCATGAAGACCTCAT
CTGCAGAAACACCTACTATCCCGCTGGGTAGTGCGGTTGAGGCCATCAAAGCCAACTGTTCTGATAATGA
ATTCACCCAAGCTTTAACCGCAGCTATCCCTCCAGAGTCCCTGACCCGTGGGGTGTACAGTGAAGAGACC
CTTAGAGCCCGTTTCTATGCTGTTCAAAAACTGGCCCGAAGGGTAGCAATGATTGATGAAACCAGAAATA
GCTTGTACCAGTACTTCCTCTCCTACCTACAGTCCCTGCTCCTATTCCCACCTCAGCAACTGAAGCCGCC
CCCAGAGCTCTGCCCTGAGGATATAAACACATTTAAATTACTGTCATATGCTTCCTATTGCATTGAGCAT
GGTGATCTGGAGCTAGCAGCAAAGTTTGTCAATCAGCTGAAGGGGGAATCCAGACGAGTGGCACAGGACT
GGCTGAAGGAAGCCCGAATGACCCTAGAAACGAAACAGATAGTGGAAATCCTGACAGCATATGCCAGCGC
CGTAGGAATAGGAACCACTCAGGTGCAGCCAGAG

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC201854 protein sequence
Red=Cloning site Green=Tags(s)

MLRACQLSGVTAAAQSCLCGKFVLRPLRPCRRYSTSGSSGLTTGKIAGAGLLFVGGGIGGTILYAKWDSH
FRESVEKTIPYSDKLFEMVLGPAAYNVPLPKKSIQSGPLKISSVSEVMKESKQPASQLQKQKGDTPASAT
APTEAAQIISAAGDTLSVPAPAVQPEESLKTDHPEIGEGKPTPALSEEASSSSIRERPPEEVAARLAQQE
KQEQVKIESLAKSLEDALRQTASVTLQAIAAQNAAVQAVNAHSNILKAAMDNSEIAGEKKSAQWRTVEGA
LKERRKAVDEAADALLKAKEELEKMKSVIENAKKKEVAGAKPHITAAEGKLHNMIVDLDNVVKKVQAAQS
EAKVVSQYHELVVQARDDFKRELDSITPEVLPGWKGMSVSDLADKLSTDDLNSLIAHAHRRIDQLNRELA
EQKATEKQHITLALEKQKLEEKRAFDSAVAKALEHHRSEIQAEQDRKIEEVRDAMENEMRTQLRRQAAAH
TDHLRDVLRVQEQELKSEFEQNLSEKLSEQELQFRRLSQEQVDNFTLDINTAYARLRGIEQAVQSHAVAE
EEARKAHQLWLSVEALKYSMKTSSAETPTIPLGSAVEAIKANCSDNEFTQALTAAIPPESLTRGVYSEET
LRARFYAVQKLARRVAMIDETRNSLYQYFLSYLQSLLLFPPQQLKPPPELCPEDINTFKLLSYASYCIEH
GDLELAAKFVNQLKGESRRVAQDWLKEARMTLETKQIVEILTAYASAVGIGTTQVQPE

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_006839
ORF Size 2274 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_006839.3
RefSeq Size 3018 bp
RefSeq ORF 2277 bp
Locus ID 10989
UniProt ID Q16891
Cytogenetics 2
MW 83.7 kDa
Summary Component of the MICOS complex, a large protein complex of the mitochondrial inner membrane that plays crucial roles in the maintenance of crista junctions, inner membrane architecture, and formation of contact sites to the outer membrane. Plays an important role in the maintenance of the MICOS complex stability and the mitochondrial cristae morphology (PubMed:22114354, PubMed:25781180).UniProtKB/Swiss-Prot Function
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_006839" in other vectors (6)
SKU Description Size Price
RC201854L1 Lenti ORF clone of Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1, Myc-DDK-tagged 10 ug
$994.00
RC201854L2 Lenti ORF clone of Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1, mGFP tagged 10 ug
$994.00
RC201854L3 Lenti ORF clone of Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1, Myc-DDK-tagged 10 ug
$994.00
RC201854L4 Lenti ORF clone of Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1, mGFP tagged 10 ug
$994.00
RG201854 IMMT (tGFP-tagged) - Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$789.00 $894.00
SC320269 IMMT (untagged)-Human inner membrane protein, mitochondrial (IMMT), nuclear gene encoding mitochondrial protein, transcript variant 1 10 ug
$695.00

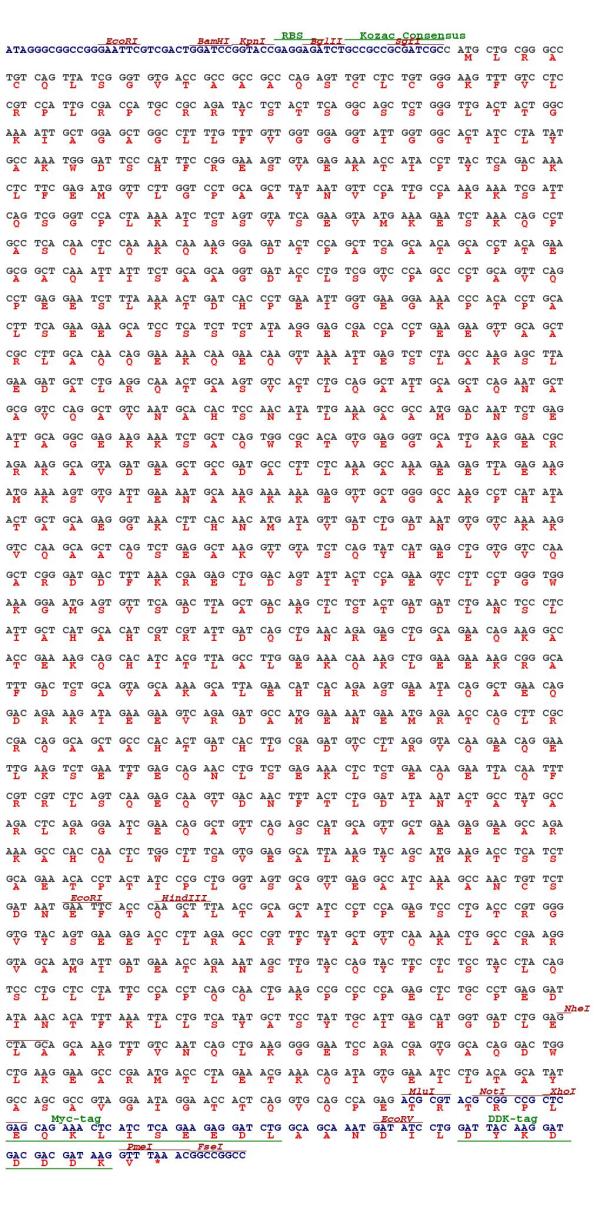

Plasmid Map for RC201854

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

Cloning scheme for RC201854
Circular map for RC201854
