RHEB (NM_005614) Human Tagged ORF Clone

  • Product Brand Image
SKU
RC200307
RHEB (Myc-DDK-tagged)-Human Ras homolog enriched in brain (RHEB)
  $450.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol RHEB
Synonyms RHEB2
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence

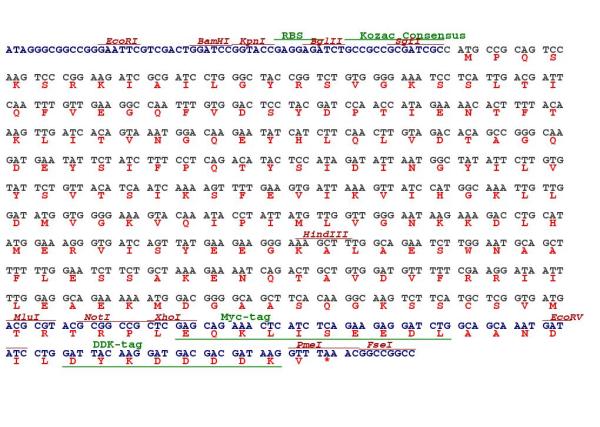

>RC200307 representing NM_005614
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCCGCAGTCCAAGTCCCGGAAGATCGCGATCCTGGGCTACCGGTCTGTGGGGAAATCCTCATTGACGA
TTCAATTTGTTGAAGGCCAATTTGTGGACTCCTACGATCCAACCATAGAAAACACTTTTACAAAGTTGAT
CACAGTAAATGGACAAGAATATCATCTTCAACTTGTAGACACAGCCGGGCAAGATGAATATTCTATCTTT
CCTCAGACATACTCCATAGATATTAATGGCTATATTCTTGTGTATTCTGTTACATCAATCAAAAGTTTTG
AAGTGATTAAAGTTATCCATGGCAAATTGTTGGATATGGTGGGGAAAGTACAAATACCTATTATGTTGGT
TGGGAATAAGAAAGACCTGCATATGGAAAGGGTGATCAGTTATGAAGAAGGGAAAGCTTTGGCAGAATCT
TGGAATGCAGCTTTTTTGGAATCTTCTGCTAAAGAAAATCAGACTGCTGTGGATGTTTTTCGAAGGATAA
TTTTGGAGGCAGAAAAAATGGACGGGGCAGCTTCACAAGGCAAGTCTTCATGCTCGGTGATG


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC200307 representing NM_005614
Red=Cloning site Green=Tags(s)

MPQSKSRKIAILGYRSVGKSSLTIQFVEGQFVDSYDPTIENTFTKLITVNGQEYHLQLVDTAGQDEYSIF
PQTYSIDINGYILVYSVTSIKSFEVIKVIHGKLLDMVGKVQIPIMLVGNKKDLHMERVISYEEGKALAES
WNAAFLESSAKENQTAVDVFRRIILEAEKMDGAASQGKSSCSVM

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_005614
ORF Size 552 bp
OTI Disclaimer Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.

The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_005614.4
RefSeq Size 1396 bp
RefSeq ORF 555 bp
Locus ID 6009
UniProt ID Q15382
Cytogenetics 7q36.1
Domains RAB, ras, RAS, RHO
Protein Pathways Insulin signaling pathway, mTOR signaling pathway
MW 20.3 kDa
Summary This gene is a member of the small GTPase superfamily and encodes a lipid-anchored, cell membrane protein with five repeats of the RAS-related GTP-binding region. This protein is vital in regulation of growth and cell cycle progression due to its role in the insulin/TOR/S6K signaling pathway. The protein has GTPase activity and shuttles between a GDP-bound form and a GTP-bound form, and farnesylation of the protein is required for this activity. Three pseudogenes have been mapped, two on chromosome 10 and one on chromosome 22. provided by RefSeq, Jul 2008
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_005614" in other vectors (6)
SKU Description Size Price
RC200307L1 Lenti ORF clone of Human Ras homolog enriched in brain (RHEB), Myc-DDK-tagged 10 ug
$750.00
RC200307L2 Lenti ORF clone of Human Ras homolog enriched in brain (RHEB), mGFP tagged 10 ug
$750.00
RC200307L3 Lenti ORF clone of Human Ras homolog enriched in brain (RHEB), Myc-DDK-tagged 10 ug
$750.00
RC200307L4 Lenti ORF clone of Human Ras homolog enriched in brain (RHEB), mGFP tagged 10 ug
$750.00
RG200307 RHEB (tGFP-tagged) - Human Ras homolog enriched in brain (RHEB) 10 ug
$650.00
SC116636 RHEB (untagged)-Human Ras homolog enriched in brain (RHEB) 10 ug
$450.00

Plasmid Map for RC200307

Download sequence for

Cloning scheme for RC200307

Circular map for RC200307

file-alt Citations

Induction of GDNF and GFRα-1 Following AAV1-Rheb(S16H) Administration in the Hippocampus in vivo
Yun, Jeon, Kim et al
Exp Neurobiol (2020) 29 (2), 164-175 DOI: 10.5607/en19075
Cited by 16
AI Summary: OriGene’s Rheb plasmid was used as the template for generating the constitutively active Rheb(S16H) construct, enabling the study of its effects on neurotrophic factor expression and neuroprotection in the rat hippocampus.
Snippet: … A plasmid carrying Rheb was purchased from OriGene Technologies (Rockville, MD, USA). Rheb DNA was amplified and modified to incorporate a FLAG-encoding sequence at the 3'-end by expanded long-template PCR (Roche, Basel, Switzerland). Rheb(S16H) was generated with the Phusion Site-Directed Mutagenesis Kit (New England Biolabs, Ipswich, MA, USA) in the pGEM-T vector (Promega, Madison, WI, USA), and then cloned into an AAV packaging construct that utilizes the chicken β-actin promoter and contains a 3' WPRE (pBL). AAVs were produced by the University of North Carolina Vector Core, and the genomic titer of Rheb(S16H) was 2×1012 viral genomes/ml. …
FigureFigureFigure
Therapeutic Potential of AAV1-Rheb(S16H) Transduction Against Alzheimer's Disease
Moon, Kim, Jeon et al
J Clin Med (2019) 8 (12) DOI: 10.3390/jcm8122053
AI Summary: OriGene Technologies contributed to this study by providing the Rheb plasmid used for AAV1-Rheb(S16H) viral vector production, enabling the investigation of neuroprotective and therapeutic effects in an Alzheimer's disease mouse model.
Snippet: The experimental scheme is provided in Figure 1A. 2.2. Production of AAV Viral Vectors. All vectors used were AAV1 serotype as previously described [15,16]. A plasmid carrying Rheb was purchased from OriGene Technologies (Rockville, MD, USA) Cached
Neurotrophic interactions between neurons and astrocytes following AAV1-Rheb(S16H) transduction in the hippocampus in vivo
Jeon, Moon, Kim et al
Br. J. Pharmacol. (2019)
AI Summary: OriGene contributed to this study by providing the Rheb plasmid, which was used to generate the AAV1-Rheb(S16H) vector essential for investigating neuroprotective interactions between neurons and astrocytes in the hippocampus.
Snippet: All vectors used were the AAV1 serotype as previously described (Kim & Chen et al., 2011;Kim & Kareva et al., 2012). A plasmid carrying Rheb was purchased from OriGene Technologies (Rockville, MD, USA). Rheb DNA was amplified and modified to incorporate
AKT3 Gene Transfer Promotes Anabolic Reprogramming and Photoreceptor Neuroprotection in a Pre-clinical Model of Retinitis Pigmentosa
McDougald, Papp, Zezulin et al
Mol. Ther. (2019) 27 (7), 1313-1326 DOI: 10.1016/j.ymthe.2019.04.009
AI Summary: In this study, OriGene's human Rheb cDNA clone was used as a key reagent to investigate the effects of gene augmentation on photoreceptor survival in a mouse model of retinitis pigmentosa.
Snippet: The MYR-HA-hAKT3 sequence was amplified and cloned into an AAV proviral expression plasmid using the In-Fusion HD cloning system (Clontech, Mountain View, CA, USA). The human Rheb cDNA clone was obtained from Origene (Rockville, MD, USA)
Induction of GDNF and BDNF by hRheb(S16H) Transduction of SNpc Neurons: Neuroprotective Mechanisms of hRheb(S16H) in a Model of Parkinson's Disease
Nam, Leem, Jeon et al
Mol. Neurobiol. (2014)
Cited by 77
AI Summary: OriGene contributed to this study by providing the plasmid carrying the human ras homolog enriched in brain (hRheb), which was used to generate viral vectors for neuronal transduction experiments.
Snippet: Materials and Methods Production of AAV Viral Vectors All vectors used in studies were AAV1 serotype as previously described [15,16]. A plasmid carrying the human ras homolog enriched in brain (hRheb) was purchased from OriGene Tech- nologies (Rockville, MD ... Cite SaveSaving
Showing 1-5 of 5 papers.
