Gucy1b1 (NM_001161796) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MR209386
Gucy1b3 (Myc-DDK-tagged) - Mouse guanylate cyclase 1, soluble, beta 3 (Gucy1b3), transcript variant 2
Interest in protein/lysate? Submit request here!
Lentiviral Particles:
DDK w/ Puro mGFP w/ Puro
AAV Particle:
DDK
$289.00 $567.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (6)

TA357809 GUCY1B1 Antibody - N-terminal region
100 ul
$585.00
TA592569S DDK Rabbit monoclonal antibody, recognizing both N- and C-terminal tags
30 ul
$200.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100001 pCMV6-Entry, mammalian vector with C-terminal Myc- DDK Tag, 10ug
10 ug
$670.00
AR100028M DDKTrap Anti-DDK 8G6 affinity resin used for the purification of DDK, DYKDDDDK, or FLAG® tagged proteins , 5 mL
5 ml
$750.00

Other products for "Gucy1b1 or NM_001161796"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Gucy1b1
Synonyms GC-S-beta-1; GCbeta1; Gucy1b3
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

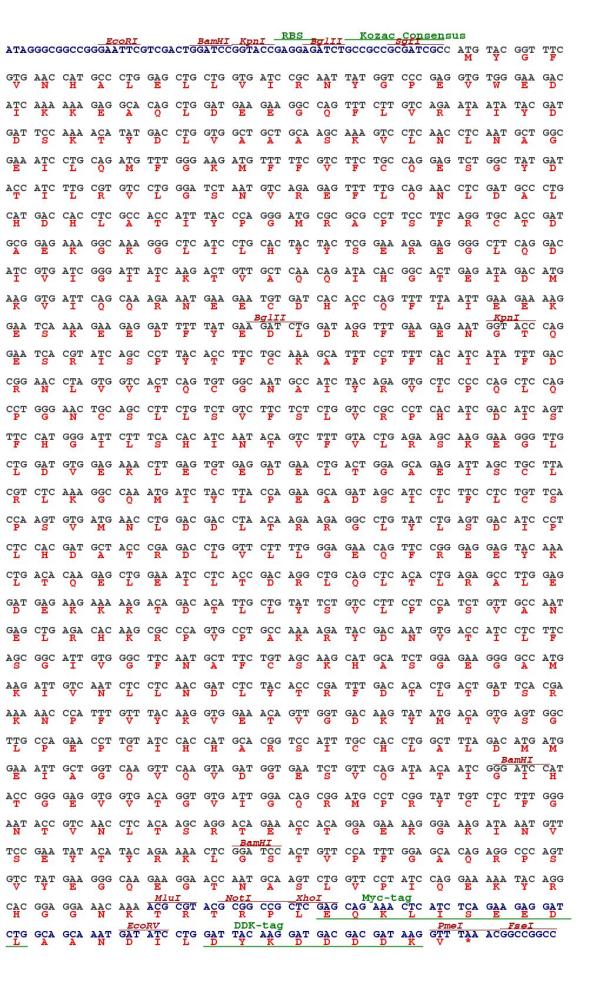

ORF Nucleotide Sequence
>MR209386 representing NM_001161796
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTACGGTTTCGTGAACCATGCCCTGGAGCTGCTGGTGATCCGCAATTATGGTCCCGAGGTGTGGGAAG
ACATCAAAAAAGAGGCACAGCTGGATGAAGAAGGCCAGTTTCTTGTCAGAATAATATACGATGATTCCAA
AACATATGACCTGGTGGCTGCTGCAAGCAAAGTCCTCAACCTCAATGCTGGCGAAATCCTGCAGATGTTT
GGGAAGATGTTTTTCGTCTTCTGCCAGGAGTCTGGCTATGATACCATCTTGCGTGTCCTGGGATCTAATG
TCAGAGAGTTTTTGCAGAACCTCGATGCCCTGCATGACCACCTCGCCACCATTTACCCAGGGATGCGCGC
GCCTTCCTTCAGGTGCACCGATGCGGAGAAAGGCAAAGGGCTCATCCTGCACTACTACTCGGAAAGAGAG
GGGCTTCAGGACATCGTGATCGGGATTATCAAGACTGTTGCTCAACAGATACACGGCACTGAGATAGACA
TGAAGGTGATTCAGCAAAGAAATGAAGAATGTGATCACACCCAGTTTTTAATTGAAGAAAAGGAATCAAA
AGAAGAGGATTTTTATGAAGATCTGGATAGGTTTGAAGAGAATGGTACCCAGGAATCACGTATCAGCCCT
TACACCTTCTGCAAAGCATTTCCTTTTCACATCATATTTGACCGGAACCTAGTGGTCACTCAGTGTGGCA
ATGCCATCTACAGAGTGCTCCCCCAGCTCCAGCCTGGGAACTGCAGCCTTCTGTCTGTCTTCTCTCTGGT
CCGCCCTCACATCGACATCAGTTTCCATGGGATTCTTTCACACATCAATACAGTCTTTGTACTGAGAAGC
AAGGAAGGGTTGCTGGATGTGGAGAAACTTGAGTGTGAGGATGAACTGACTGGAGCAGAGATTAGCTGCT
TACGTCTCAAAGGCCAAATGATCTACTTACCAGAAGCAGATAGCATCCTCTTCCTCTGTTCACCAAGTGT
GATGAACCTGGACGACCTAACAAGAAGAGGCCTGTATCTGAGTGACATCCCTCTCCACGATGCTACCCGA
GACCTGGTTCTTTTGGGAGAACAGTTCCGGGAGGAGTACAAACTGACACAAGAGCTGGAAATCCTCACCG
ACAGGCTGCAGCTCACACTGAGAGCCTTGGAGGATGAGAAGAAAAAGACAGACACATTGCTGTATTCTGT
CCTTCCTCCATCTGTTGCCAATGAGCTGAGACACAAGCGCCCAGTGCCTGCCAAAAGATACGACAATGTG
ACCATCCTCTTCAGCGGCATTGTGGGCTTCAATGCTTTCTGTAGCAAGCATGCATCTGGAGAAGGGGCCA
TGAAGATTGTCAATCTCCTCAACGATCTCTACACCCGATTTGACACACTGACTGATTCACGAAAAAACCC
ATTTGTTTACAAGGTGGAAACAGTTGGTGACAAGTATATGACAGTGAGTGGCTTGCCAGAACCTTGTATC
CACCATGCACGGTCCATTTGCCACCTGGCTTTAGACATGATGGAAATTGCTGGTCAAGTTCAAGTAGATG
GTGAATCTGTTCAGATAACAATCGGGATCCATACCGGGGAGGTGGTGACAGGTGTGATTGGACAGCGGAT
GCCTCGGTATTGTCTCTTTGGGAATACCGTCAACCTCACAAGCAGGACAGAAACCACAGGAGAAAAGGGA
AAGATAAATGTTTCCGAATATACATACAGAAAACTCGGATCCACTGTTCCATTTGGAGCACAGAGGCCCA
GTGTCTATGAAGGGCAAGAAGGAACCAATGCAAGTCTGGTTCCTATCCAGGAAAAATACAGGCACGGAGG
AAACAAA

ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>MR209386 representing NM_001161796
Red=Cloning site Green=Tags(s)

MYGFVNHALELLVIRNYGPEVWEDIKKEAQLDEEGQFLVRIIYDDSKTYDLVAAASKVLNLNAGEILQMF
GKMFFVFCQESGYDTILRVLGSNVREFLQNLDALHDHLATIYPGMRAPSFRCTDAEKGKGLILHYYSERE
GLQDIVIGIIKTVAQQIHGTEIDMKVIQQRNEECDHTQFLIEEKESKEEDFYEDLDRFEENGTQESRISP
YTFCKAFPFHIIFDRNLVVTQCGNAIYRVLPQLQPGNCSLLSVFSLVRPHIDISFHGILSHINTVFVLRS
KEGLLDVEKLECEDELTGAEISCLRLKGQMIYLPEADSILFLCSPSVMNLDDLTRRGLYLSDIPLHDATR
DLVLLGEQFREEYKLTQELEILTDRLQLTLRALEDEKKKTDTLLYSVLPPSVANELRHKRPVPAKRYDNV
TILFSGIVGFNAFCSKHASGEGAMKIVNLLNDLYTRFDTLTDSRKNPFVYKVETVGDKYMTVSGLPEPCI
HHARSICHLALDMMEIAGQVQVDGESVQITIGIHTGEVVTGVIGQRMPRYCLFGNTVNLTSRTETTGEKG
KINVSEYTYRKLGSTVPFGAQRPSVYEGQEGTNASLVPIQEKYRHGGNK

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001161796
ORF Size 1827 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001161796.1, NP_001155268.1
RefSeq Size 3234 bp
RefSeq ORF 1830 bp
Locus ID 54195
Cytogenetics 3 E3
MW 69.4 kDa
Summary Mediates responses to nitric oxide (NO) by catalyzing the biosynthesis of the signaling molecule cGMP.UniProtKB/Swiss-Prot Function
