Npr3 (NM_008728) Mouse Tagged ORF Clone

  • TrueORF®
SKU
MG208587
Npr3 (tGFP-tagged) - Mouse natriuretic peptide receptor 3 (Npr3), transcript variant 1
$489.00 $698.00
In Stock*
Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Npr3
Synonyms ANP-C; ANPR-C; EF-2; lgj; NPR-C; stri
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MG208587 representing NM_008728
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCGGTCCTTGCTGCTGTTCACTTTCTCGGCGTGCGTGCTGCTGGCCCGGGTGCTGCTGGCTGGCGGCG
CGAGCAGCGGCGCCGGGGACACCCGGCCAGGCAGCAGGCGCCGGGCGAGAGAGGCGCTGGCGGCTCAAAA
GATCGAGGTGCTTGTTCTATTGCCCCGGGACGATTCGTACTTGTTCTCGCTGGCCCGGGTGAGGCCGGCC
ATCGAGTACGCGCTGCGTAGCGTGGAGGGCAATGGCACCGGGAGGAAGCTGCTGCCGCCAGGCACTCGCT
TCCAGGTGGCCTACGAAGACTCGGACTGCGGCAACCGCGCGCTCTTCAGTCTTGTGGACCGCGTGGCGGC
GGCGCGCGGCGCCAAGCCGGATCTCATCCTGGGGCCCGTGTGCGAGTACGCGGCGGCGCCGGTGGCTCGG
CTGGCGTCTCACTGGGACCTGCCGATGCTGTCCGCAGGAGCGCTGGCCGCCGGTTTCCAGCACAAGGACA
CGGAATACTCGCACCTCACGCGCGTGGCGCCTGCCTACGCCAAGATGGGAGAGATGATGCTCGCTCTGTT
TCGCCACCACCACTGGAGCCGTGCAGCCCTGGTCTACAGCGACGACAAACTCGAGAGGAACTGTTATTTC
ACCCTCGAGGGGGTCCACGAGGTTTTTCAGGAGGAGGGGTTGCACACGTCTGCCTACAATTTCGACGAGA
CCAAAGACTTGGACCTGGACGACATAGTGCGCTACATCCAAGGCAGCGAGCGAGTGGTGATCATGTGTGC
CAGTGGTGACACCATTCGGAGAATCATGTTGGCGGTGCACAGACACGGCATGACCAGTGGAGACTACGCT
TTCTTCAACATTGAACTCTTCAACAGTTCTTCCTACGGAGATGGCTCGTGGAGGAGAGGAGACAAACACG
ACTCTGAAGCTAAACAAGCATACTCGTCCCTCCAAACAGTCACCCTACTGAGGACCGTGAAACCTGAGTT
TGAGAAGTTTTCCATGGAGGTGAAAAGTTCTGTTGAGAAACAAGGGCTCAATGAGGAGGATTACGTGAAC
ATGTTTGTTGAAGGGTTCCATGACGCCATCCTCCTCTACGTTCTGGCTTTACATGAAGTACTCAGAGCTG
GCTACAGCAAGAAGGATGGGGGGAAAATCATCCAGCAGACTTGGAACAGGACATTTGAAGGTATCGCCGG
GCAGGTGTCCATAGATGCCAACGGGGACCGGTATGGGGACTTCTCTGTGGTTGCCATGACTGACACTGAA
GCAGGCACCCAAGAGGTCATTGGTGATTACTTTGGGAAAGAAGGCCGGTTCCAAATGCGATCGAATGTCA
AATATCCTTGGGGCCCTTTGAAACTGAGACTAGATGAGACCAGAATCGTGGAGCATACCAACAGCTCTCC
TTGCAAATCATCAGGTGGCCTAGAAGAATCTGCAGTGACAGGAATCGTTGTGGGGGCCCTACTAGGTGCT
GGCTTGCTAATGGCCTTCTACTTTTTCAGGAAGAAATACAGAATAACCATTGAGAGGCGAAATCAGCAAG
AGGAAAGCAACATCGGGAAGCATCGAGAGCTGCGAGAAGATTCCATCAGATCACATTTTTCGGTGGCT


ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG208587 representing NM_008728
Red=Cloning site Green=Tags(s)

MRSLLLFTFSACVLLARVLLAGGASSGAGDTRPGSRRRAREALAAQKIEVLVLLPRDDSYLFSLARVRPA
IEYALRSVEGNGTGRKLLPPGTRFQVAYEDSDCGNRALFSLVDRVAAARGAKPDLILGPVCEYAAAPVAR
LASHWDLPMLSAGALAAGFQHKDTEYSHLTRVAPAYAKMGEMMLALFRHHHWSRAALVYSDDKLERNCYF
TLEGVHEVFQEEGLHTSAYNFDETKDLDLDDIVRYIQGSERVVIMCASGDTIRRIMLAVHRHGMTSGDYA
FFNIELFNSSSYGDGSWRRGDKHDSEAKQAYSSLQTVTLLRTVKPEFEKFSMEVKSSVEKQGLNEEDYVN
MFVEGFHDAILLYVLALHEVLRAGYSKKDGGKIIQQTWNRTFEGIAGQVSIDANGDRYGDFSVVAMTDTE
AGTQEVIGDYFGKEGRFQMRSNVKYPWGPLKLRLDETRIVEHTNSSPCKSSGGLEESAVTGIVVGALLGA
GLLMAFYFFRKKYRITIERRNQQEESNIGKHRELREDSIRSHFSVA

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_008728
ORF Size 1608 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_008728.2, NP_032754.2
RefSeq Size 6924 bp
RefSeq ORF 1611 bp
Locus ID 18162
UniProt ID P70180
Cytogenetics 15 5.83 cM
Summary Receptor for the natriuretic peptide hormones, binding with similar affinities atrial natriuretic peptide NPPA/ANP, brain natriuretic peptide NPPB/BNP, and C-type natriuretic peptide NPPC/CNP (PubMed:10377427, PubMed:17951249). May function as a clearance receptor for NPPA, NPPB and NPPC, regulating their local concentrations and effects (PubMed:10377427, PubMed:17951249). May regulate diuresis, blood pressure and skeletal development (PubMed:10377427). Does not have guanylate cyclase activity (PubMed:10377427).UniProtKB/Swiss-Prot Function
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_008728" in other vectors (4)
SKU Description Size Price
MG227616 Npr3 (tGFP-tagged) - Mouse natriuretic peptide receptor 3 (Npr3) transcript variant 1, (10ug) 10 ug
$698.00
MR227616 Npr3 (Myc-DDK-tagged) - Mouse natriuretic peptide receptor 3 (Npr3), transcript variant 1 10 ug
$289.00 $498.00
MR227616L3 Lenti ORF clone of Npr3 (Myc-DDK-tagged) - Mouse natriuretic peptide receptor 3 (Npr3), transcript variant 1 10 ug
$798.00
MR227616L4 Lenti ORF clone of Npr3 (mGFP-tagged) - Mouse natriuretic peptide receptor 3 (Npr3), transcript variant 1 10 ug
$798.00

Plasmid Map for MG208587

Download sequence for

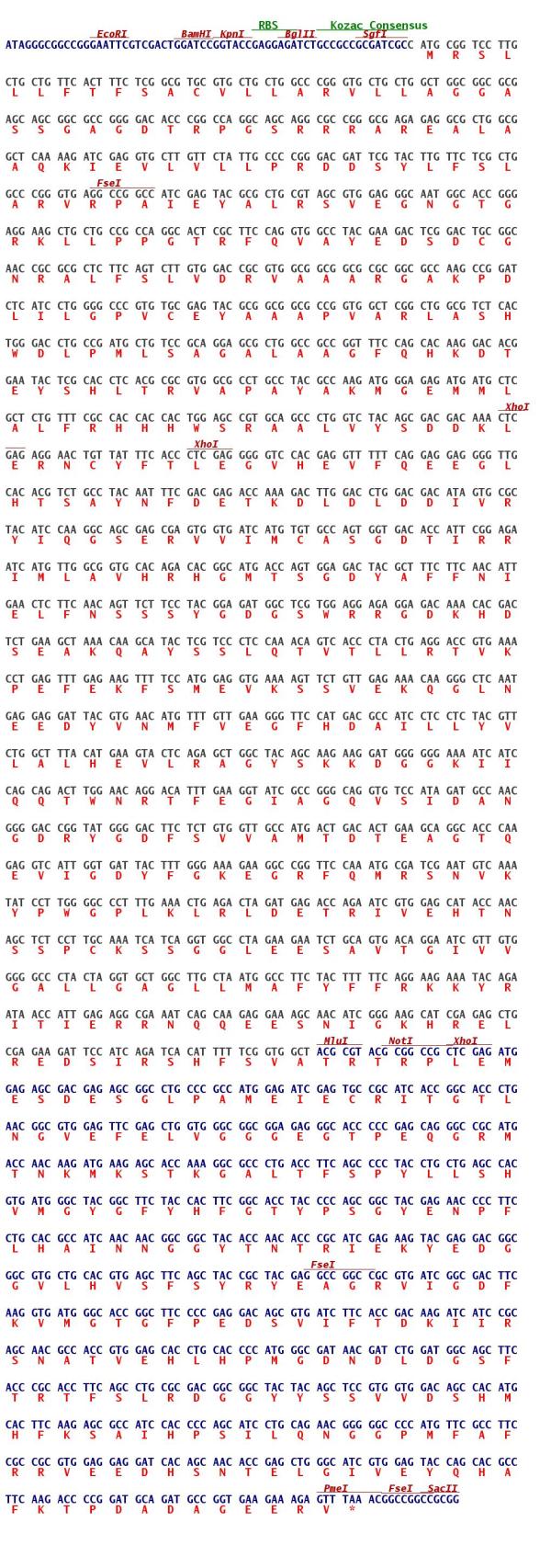

Cloning scheme for MG208587

Circular map for MG208587

file-alt Citations

Skeletal muscle derived Musclin protects the heart during pathological overload
Szaroszyk, Kattih, Martin-Garrido et al
Nat Commun (2022) 13 (1), 149 DOI: 10.1038/s41467-021-27634-5
Cited by 98
AI Summary: OriGene’s NPRC-GFP plasmid (Cat# MG208587) was used to transfect HEK293 cells, enabling the study of Musclin binding and signaling in the investigation of skeletal muscle Musclin’s protective effects on the heart during pathological overload.
Snippet: the NPR-C coated well. Relative Musclin binding was calculated with the help of a Musclin standard curve. HEK293 cells (Leibniz Institute DSMZ, Cell Line 293 ACC 305) were transfected with NPRC-GFP (OriGene, #MG208587, Accession No. NM_008728) or were left untransfected. The cells were stimulated with recombinant C-type natriuretic peptide (CNP, #N8768, Sigma Aldrich) with or without the addition
FigureFigureFigure
Musclin, A Myokine Induced by Aerobic Exercise, Retards Muscle Atrophy During Cancer Cachexia in Mice
Re Cecconi, Forti, Chiappa et al
Cancers (Basel) (2019) 11 (10) DOI: 10.3390/cancers11101541
AI Summary: OriGene contributed murine musclin-GFP and Npr3-GFP plasmid vectors, which were used to investigate the effects of musclin and its receptor on muscle preservation during cancer cachexia in mice.
Snippet: …Ken Walsh (Boston University). Vectors for murine musclin-GFP and Npr3-GFP were obtained from Origene. …
Showing 1-2 of 2 papers.
