Timm8a1 (NM_013898) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MG200281
Timm8a1 (tGFP-tagged) - Mouse translocase of inner mitochondrial membrane 8 homolog a1 (yeast) (Timm8a1)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
tGFP DDK
AAV Particle:
DDK
  $350.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8
100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "Timm8a1 or NM_013898"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Timm8a1
Synonyms Ddp1; DXHXS1274E; Fci-12; Tim8a; Timm8a
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

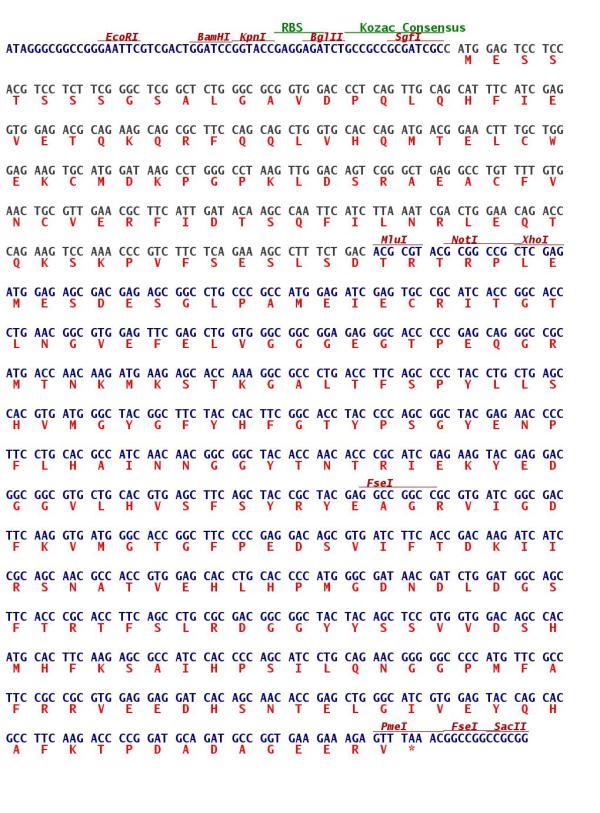

ORF Nucleotide Sequence
>MG200281 representing NM_013898
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAGTCCTCCACGTCCTCTTCGGGCTCGGCTCTGGGCGCGGTGGACCCTCAGTTGCAGCATTTCATCG
AGGTGGAGACGCAGAAGCAGCGCTTCCAGCAGCTGGTGCACCAGATGACGGAACTTTGCTGGGAGAAGTG
CATGGATAAGCCTGGGCCTAAGTTGGACAGTCGGGCTGAGGCCTGTTTTGTGAACTGCGTTGAACGCTTC
ATTGATACAAGCCAATTCATCTTAAATCGACTGGAACAGACCCAGAAGTCCAAACCCGTCTTCTCAGAAA
GCCTTTCTGAC

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG200281 representing NM_013898
Red=Cloning site Green=Tags(s)

MESSTSSSGSALGAVDPQLQHFIEVETQKQRFQQLVHQMTELCWEKCMDKPGPKLDSRAEACFVNCVERF
IDTSQFILNRLEQTQKSKPVFSESLSD

TRTRPLE - GFP Tag - V

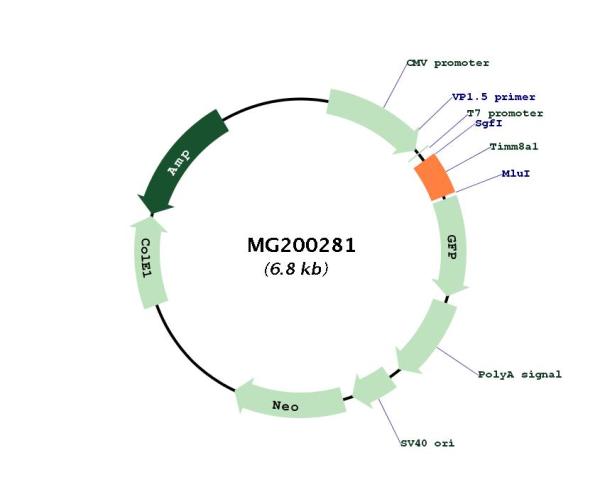

Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_013898
ORF Size 291 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_013898.1, NP_038926.1
RefSeq Size 1196 bp
RefSeq ORF 294 bp
Locus ID 30058
UniProt ID Q9WVA2
Cytogenetics X 56.18 cM
Summary Mitochondrial intermembrane chaperone that participates in the import and insertion of some multi-pass transmembrane proteins into the mitochondrial inner membrane. Also required for the transfer of beta-barrel precursors from the TOM complex to the sorting and assembly machinery (SAM complex) of the outer membrane. Acts as a chaperone-like protein that protects the hydrophobic precursors from aggregation and guide them through the mitochondrial intermembrane space. The TIMM8-TIMM13 complex mediates the import of proteins such as TIMM23, SLC25A12/ARALAR1 and SLC25A13/ARALAR2, while the predominant TIMM9-TIMM10 70 kDa complex mediates the import of much more proteins (By similarity).UniProtKB/Swiss-Prot Function
